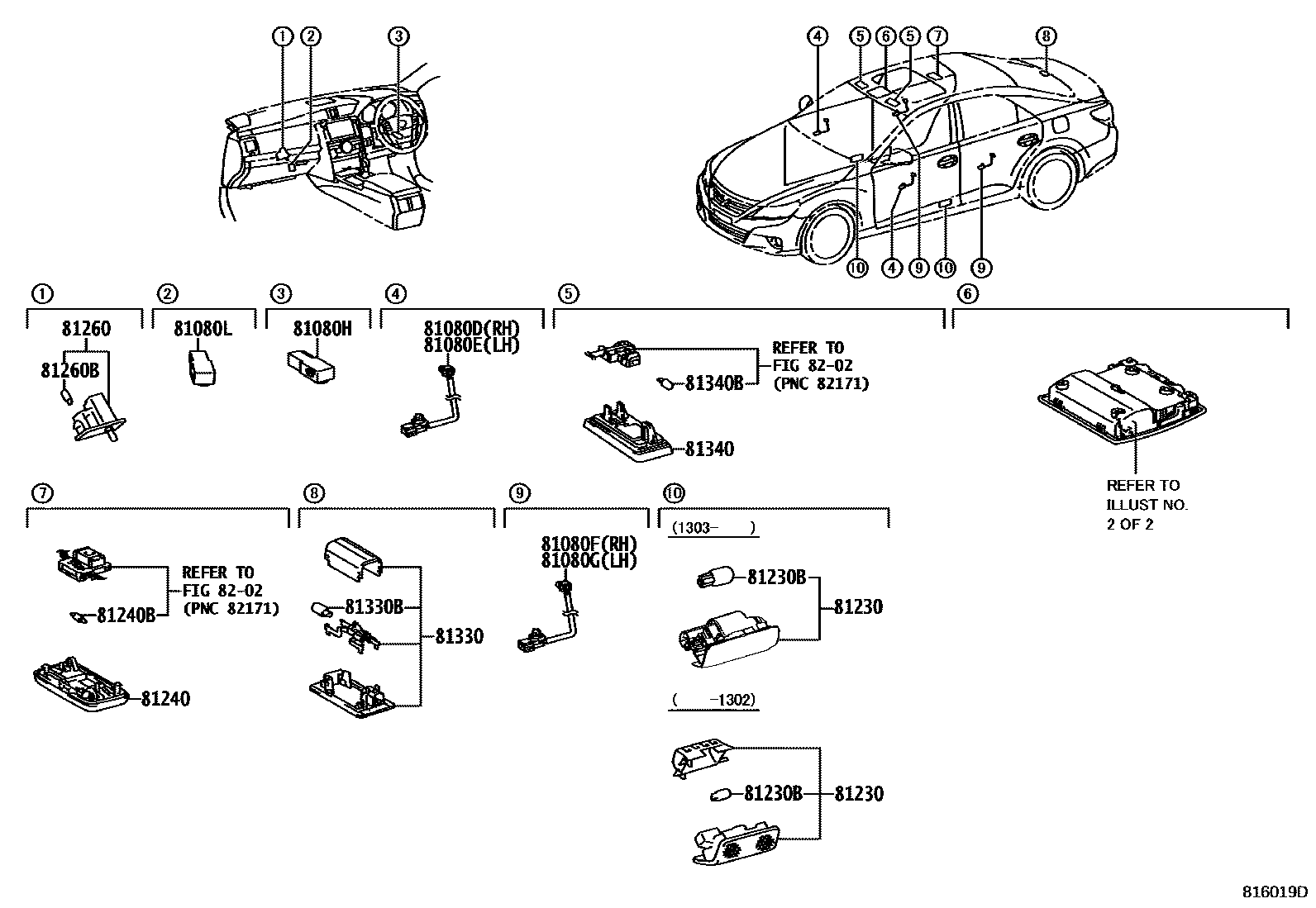

Toyota MARK X — INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-22011iGRX130201112-201208

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-22011iGRX130201112-201208

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-22011iGRX130201112-201208

S PACKAGE

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-22011iGRX130201112-201208

S PACKAGE

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iGRX130201208-201611

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iGRX130201112-201208

81230LAMP ASSY, COURTESY

main81230-30200×2iGRX130201303-201611

main81230-47010×2iGRX130201208-201302

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iGRX130201112-201208

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iGRX130201112-201208

LT.GRAY,TRIM2#

sub81240-42020

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGRX130201208-201611

12V 8W

81260LAMP ASSY, GLOVE BOX

main81260-33030iGRX130201112-201208

81260BBULB(FOR GLOVE BOX)

main90981-11018iGRX130201112-201208

12V 1.2W W/O SOCKET

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-33030iGRX130201112-201208

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-12010iGRX130201112-201208

12V 5W

81340LAMP ASSY, VANITY

main81340-30100-B0×2iGRX130201112-201208

LT.GRAY,TRIM2#

main81340-30110×2iGRX130201208

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iGRX130201112-201208

12V 8W

8202

17 parts on this diagram · 2 diagrams in section
