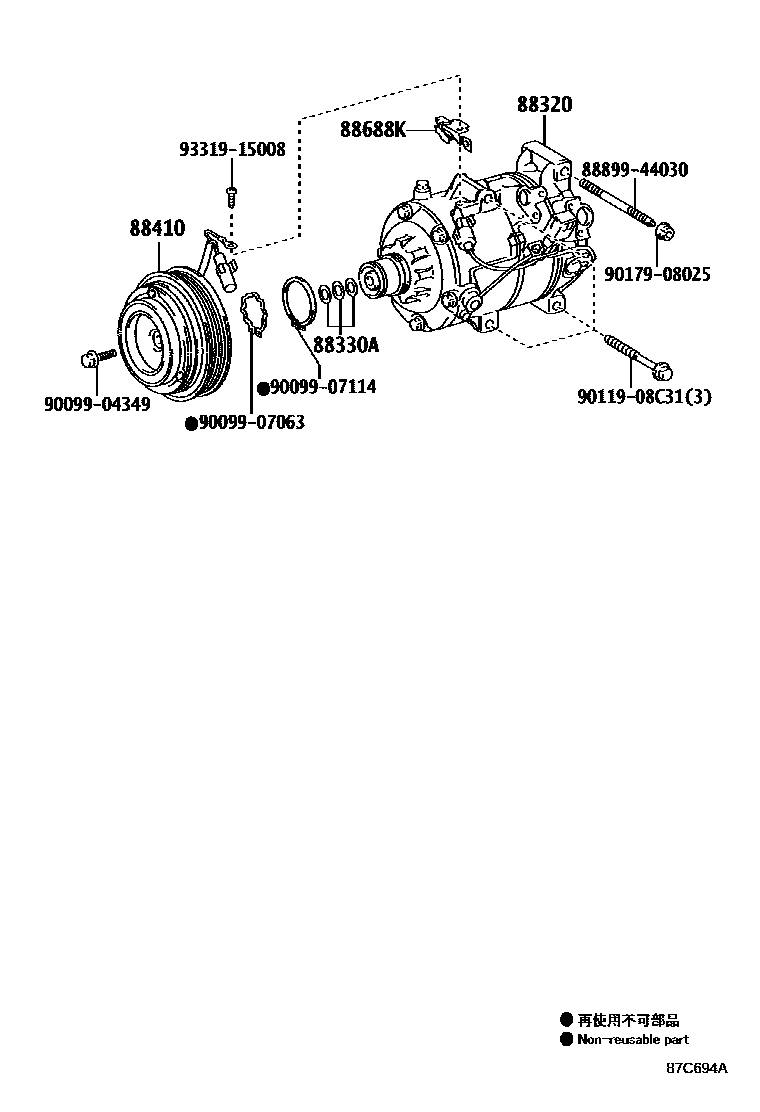

Toyota MARK X — HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
88330AWASHER (FOR MAGNET CLUTCH)
88410CLUTCH ASSY, MAGNET
88688KBRACKET, COOLER COMPRESSOR
8889944030COVER, EVAPORATOR
main88899-44030
9009904349
main90099-04349
9009907063
main90099-07063
9009907114
main90099-07114
9011908C31
main90119-08C31
9017908025
main90179-08025
9331915008
main93319-15008
11 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota MARK X
This section contains 11 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota MARK X. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COOLER COMPRESSOR, COVER, EVAPORATOR.
