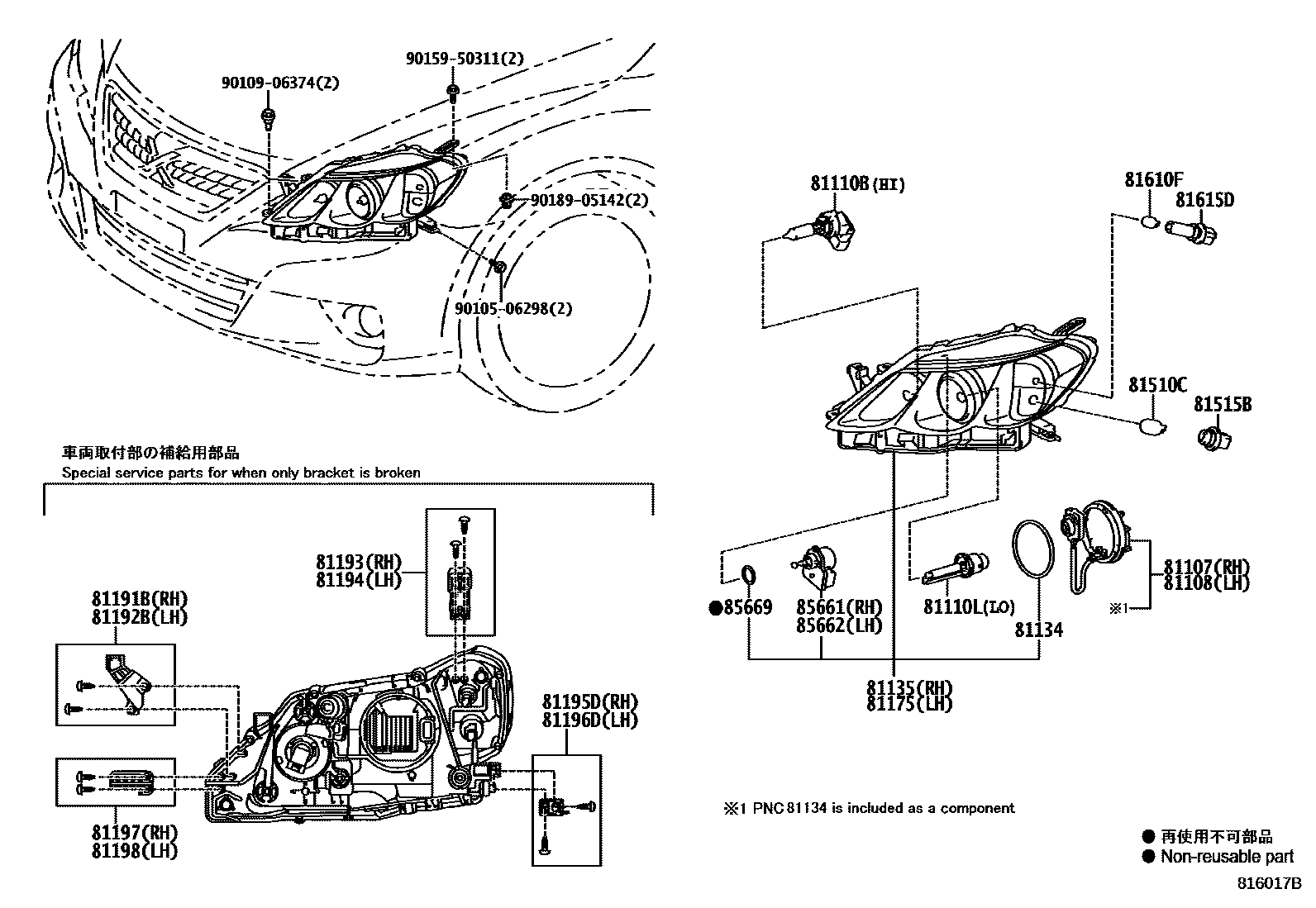

Toyota MARK X — HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
42V 35W
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
S PACKAGE
81175UNIT ASSY, HEADLAMP, LH
S PACKAGE
81191BTAPE, HEADLAMP, RH
81192BTAPE, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010506298
main90105-06298
9010906374
main90109-06374
9015950311
main90159-50311
9018905142
main90189-05142
26 parts on this diagram · 2 diagrams in section
