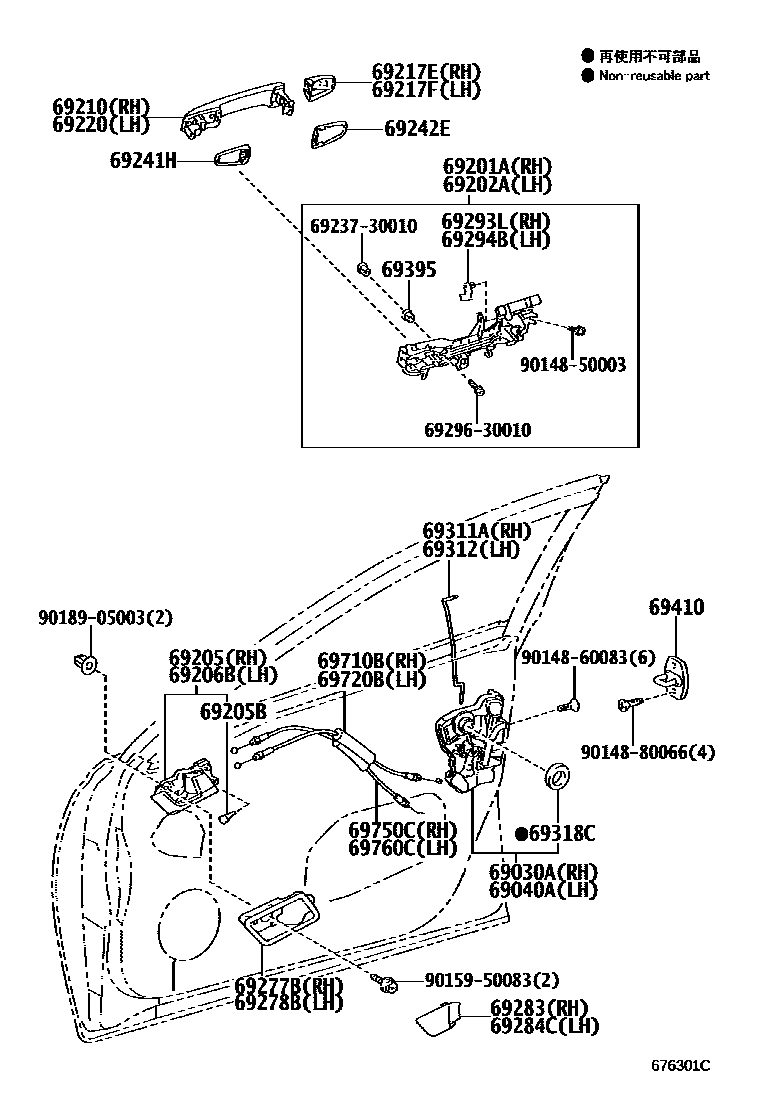

Toyota MARK X — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iGRX130201208

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12560iGRX130201112-201208

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30071iGRX130201112-201208

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30061iGRX130201112-201208

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30200-C0iGRX130201112-201208

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iGRX130201112-201208

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30200-C0iGRX130201112-201208

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30320-A1iGRX130201112-201208

WHITE PEARL CS.,062

main69210-30320-B0iGRX130201208-201611

SILVER ME.,1F7

main69210-30320-B2iGRX130201112-201208

ICE TITANIUM M.M.,1H4

main69210-30320-C0iGRX130201112-201208

BLACK,202

main69210-30320-D2iGRX130201112-201208

GINGER RED M.M.,3R6

main69210-30320-D4iGRX130201208-201611

DK. RED M.M.,3Q3

main69210-30320-E2iGRX130201112-201208

BRONZE M.M.,4T3

main69210-30320-J2iGRX130201208-201611

DK.BLUE MC.,8T5

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69250-30030-A1iGRX130201112-201208

WHITE PEARL CS.,062

main69250-30030-B0iGRX130201112-201208

SILVER ME.,1F7

main69250-30030-B2iGRX130201112-201208

ICE TITANIUM M.M.,1H4

main69250-30030-C0iGRX130201208-201611

BLACK,202

main69250-30030-D1iGRX130201112-201208

GINGER RED M.M.,3R6

main69250-30030-D3iGRX130201208-201611

DK. RED M.M.,3Q3

main69250-30030-E1iGRX130201112-201208

BRONZE M.M.,4T3

main69250-30030-J4iGRX130201208-201611

DK.BLUE MC.,8T5

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69250-30040-A1iGRX130201112-201208

WHITE PEARL CS.,062

main69250-30040-B0iGRX130201112-201208

SILVER ME.,1F7

main69250-30040-B2iGRX130201208-201611

ICE TITANIUM M.M.,1H4

main69250-30040-C0iGRX130201208-201611

BLACK,202

main69250-30040-D1iGRX130201112-201208

GINGER RED M.M.,3R6

main69250-30040-D3iGRX130201208-201611

DK. RED M.M.,3Q3

main69250-30040-E1iGRX130201112-201208

BRONZE M.M.,4T3

main69250-30040-J4iGRX130201208-201611

DK.BLUE MC.,8T5

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30320-A1iGRX130201208-201611

WHITE PEARL CS.,062

main69210-30320-B0iGRX130201112-201208

SILVER ME.,1F7

main69210-30320-B2iGRX130201112-201208

ICE TITANIUM M.M.,1H4

main69210-30320-C0iGRX130201112-201208

BLACK,202

main69210-30320-D2iGRX130201112-201208

GINGER RED M.M.,3R6

main69210-30320-D4iGRX130201208-201611

DK. RED M.M.,3Q3

main69210-30320-E2iGRX130201112-201208

BRONZE M.M.,4T3

main69210-30320-J2iGRX130201208-201611

DK.BLUE MC.,8T5

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30110×2iGRX130201112-201208

sub69241-30111

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30090×2iGRX130201112-201208

sub69242-30091

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22120-C0iGRX130201112-201208

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22090-C0iGRX130201112-201208

BLACK,TRIM2#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-C0iGRX130201112-201208

BLACK,TRIM2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-C0iGRX130201112-201208

BLACK,TRIM2#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iGRX130201112-201208

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iGRX130201112-201208

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-22130iGRX130201112-201208

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-22130iGRX130201112-201208

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iGRX130201112-201208

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-30010×2iGRX130201112-201208

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2iGRX130201112-201208

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-22090iGRX130201112-201208

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-22090iGRX130201112-201208

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-22080iGRX130201112-201208

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-22080iGRX130201112-201208

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9015950083

main90159-50083

9018905003

main90189-05003

35 parts on this diagram · 1 diagram in section
