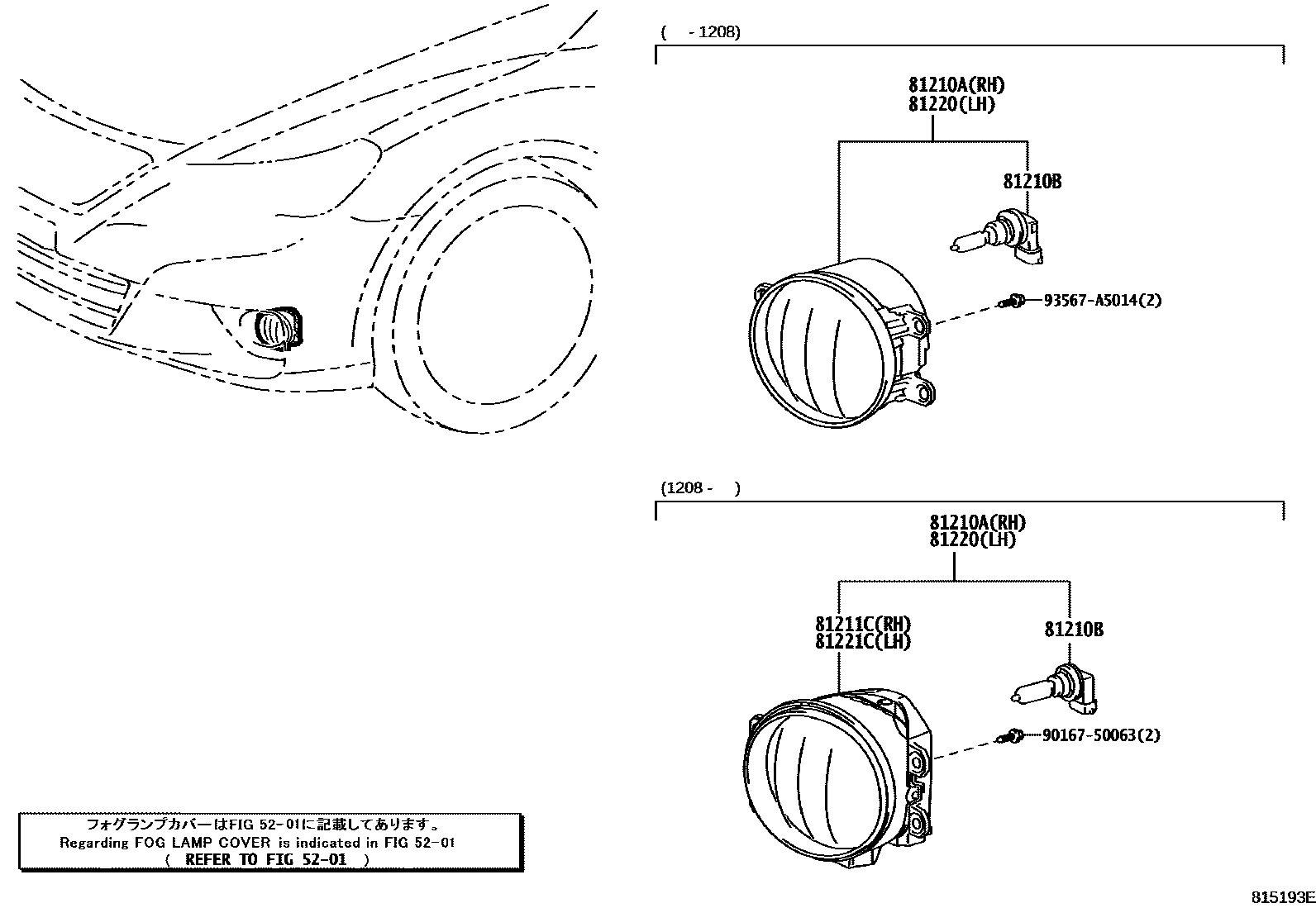

Toyota MARK X — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D042i201112-201208

S PACKAGE

main81210-12230i201208-201408

S PACKAGE

81210BBULB, FOG LAMP

main90981-13075×2i201112-201208

12V 55W,HALOGEN,S PACKAGE,PHILIPS

main90981-13081×2i201112-201208

12V 55W,HALOGEN,S PACKAGE,OSRAM

main90981-13090×2i201208-201408

12V 19W,S PACKAGE

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i201208-201408

S PACKAGE

81220LAMP ASSY, FOG, LH

main81220-0D042i201112-201208

S PACKAGE

main81220-12230i201208-201408

S PACKAGE

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i201208-201408

S PACKAGE

9016750063

main90167-50063

93567A5014

main93567-A5014

8 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota MARK X

This section contains 8 genuine Toyota parts for the FOG LAMP system of the Toyota MARK X. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
