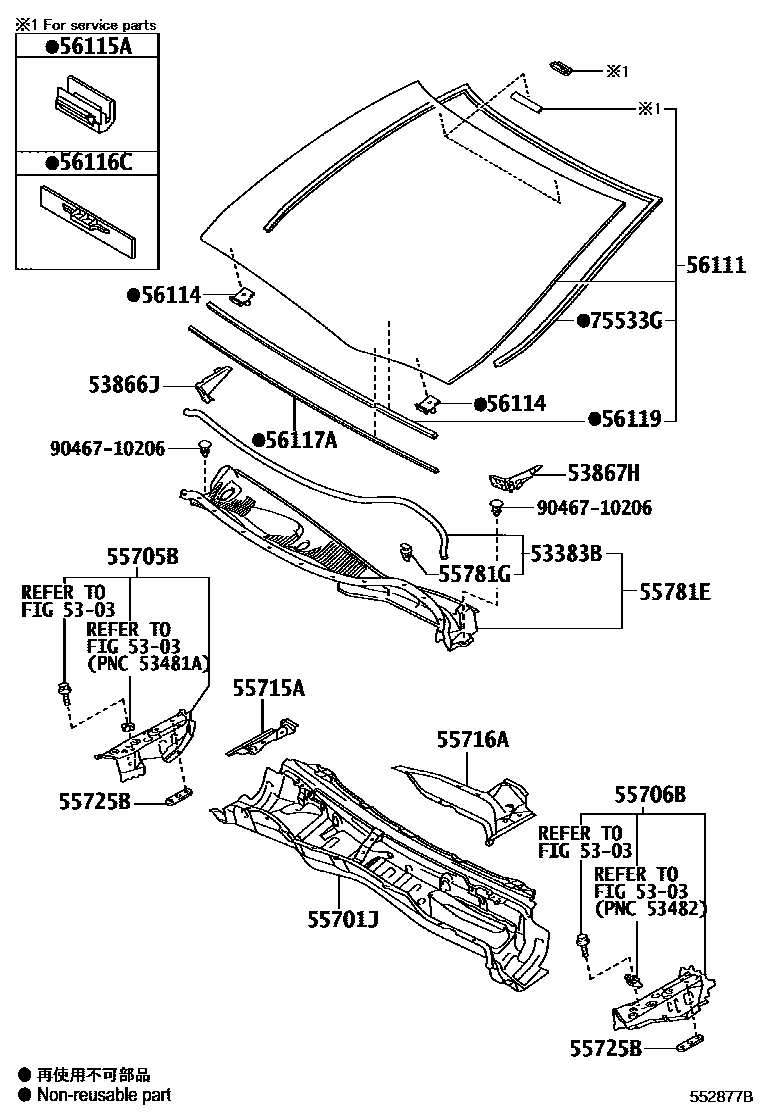

Toyota MARK X — COWL PANEL & WINDSHIELD GLASS

5303

53383BSEAL, HOOD TO COWL TOP

main53383-22110iGRX130201112-201208

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22130iGRX130201112-201208

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22130iGRX130201112-201208

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-22720iGRX130201112-201208

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-22070iGRX130201112-201208

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-22070iGRX130201112-201208

55715ABRACE, COWL TOP TO APRON, RH

main55715-22130iGRX130201112-201208

55716ABRACE, COWL TOP TO APRON, LH

main55716-22120iGRX130201112-201208

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iGRX130201112-201208

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-22100iGRX130201112-201208

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×12iGRX130201112-201208

56111GLASS, WINDSHIELD

main56101-22180iGRX130201112-201208

main56101-22181iGRX130201602

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iGRX130201112-201208

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iGRX130201112-201208

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGRX130201112-201208

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iGRX130201112-201208

L=1295

56119SEAL, WINDSHIELD GLASS

main56119-22021iGRX130201112-201208

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-22370iGRX130201112-201208

9046710206

main90467-10206

20 parts on this diagram · 1 diagram in section
