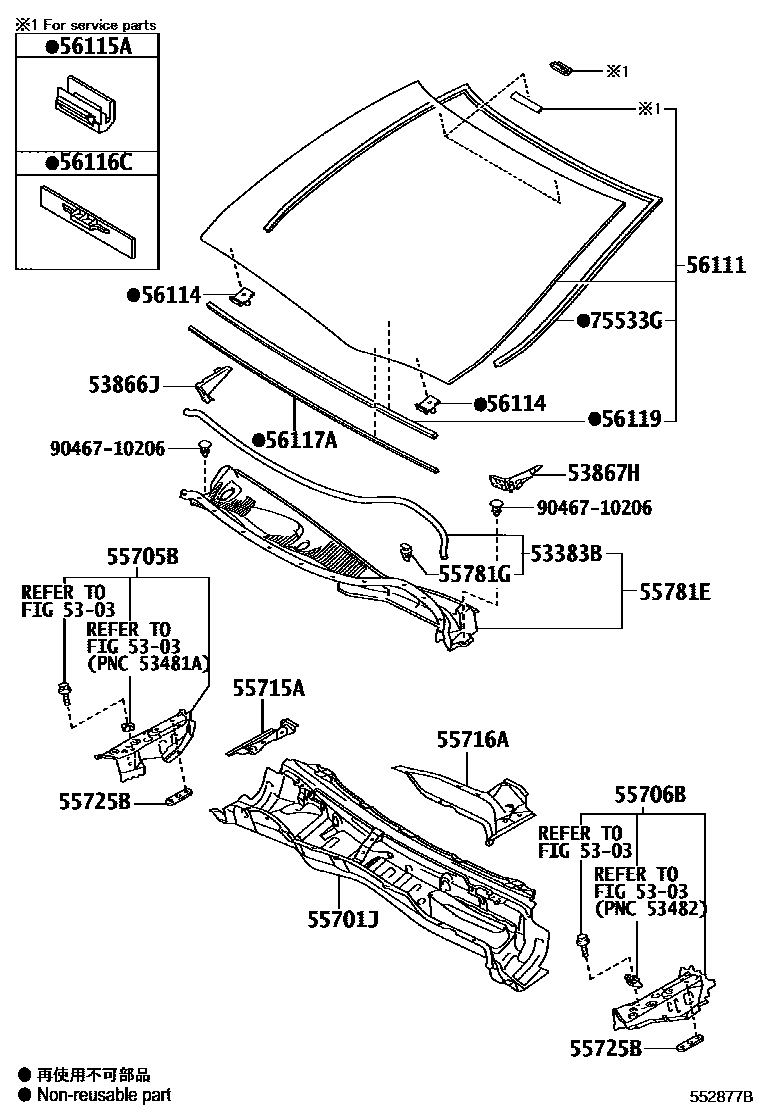

Toyota MARK X — COWL PANEL & WINDSHIELD GLASS

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

53383BSEAL, HOOD TO COWL TOP

main53383-22110i201112-201208

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22130i201112-201208

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22130i201112-201208

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-22720i201112-201208

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-22070i201112-201208

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-22070i201112-201208

55715ABRACE, COWL TOP TO APRON, RH

main55715-22130i201112-201611

55716ABRACE, COWL TOP TO APRON, LH

main55716-22120i201112-201208

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020i201112-201208

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-22100i201112-201208

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108i201112-201208

56111GLASS, WINDSHIELD

main56101-22180i201112-201601

main56101-22181i201602

56114RETAINER, WINDSHIELD GLASS

main56114-22050i201112-201208

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110i201112-201208

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201112-201208

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140i201112-201208

L=1295

56119SEAL, WINDSHIELD GLASS

main56119-22021i201112-201208

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-22370i201112-201208

9046710206

main90467-10206

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota MARK X

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota MARK X. Key components include: HOOD LOCK & HINGE, SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, COWL TOP, OUTER.
