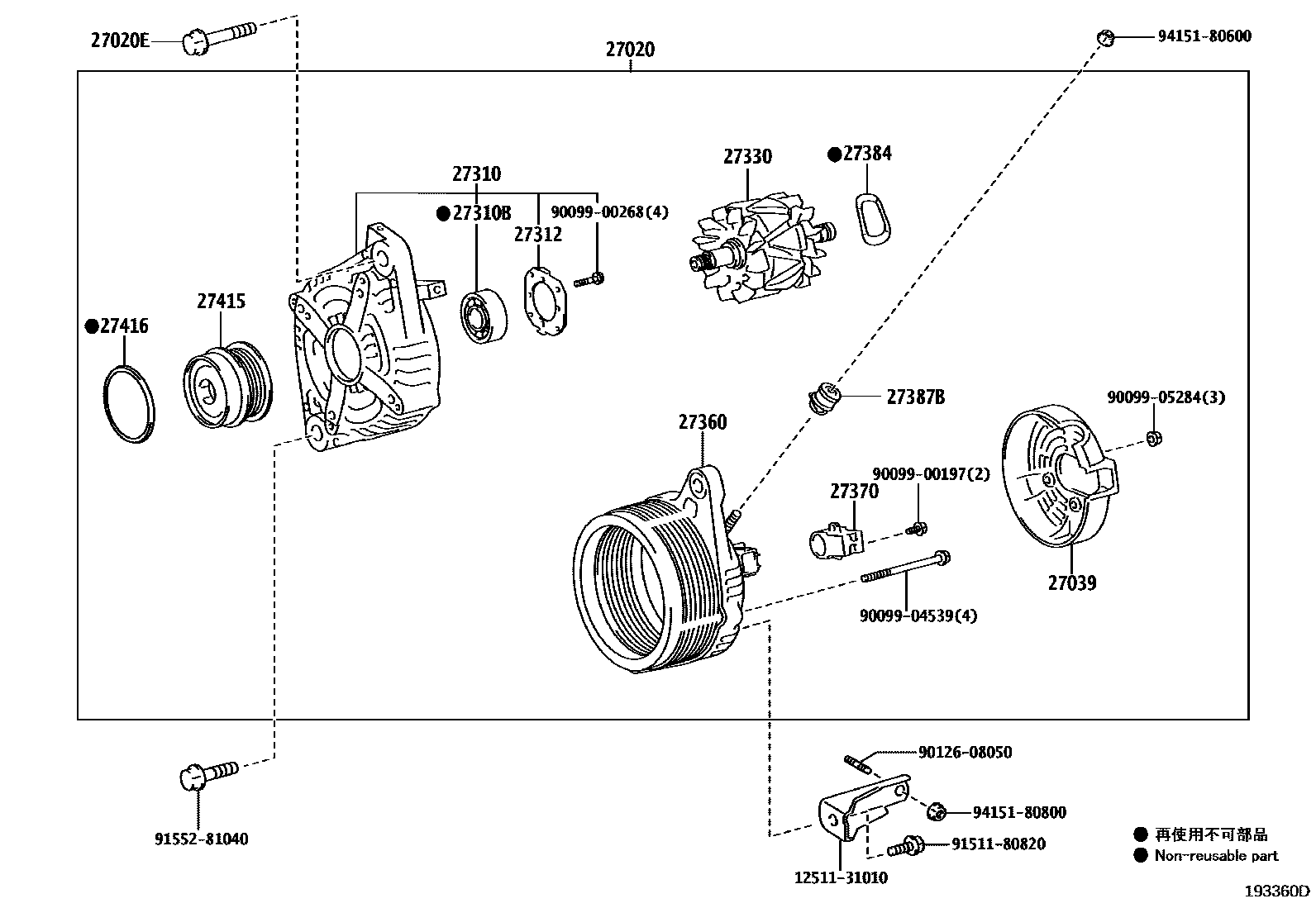

Toyota MARK X — ALTERNATOR

27020ALTERNATOR ASSY

main27060-31212i4GRFSE..GRX130201211

12V 150A

main27060-31240i4GRFSE..GRX130201112-201208

12V 130A

main27060-31250i4GRFSE..GRX130201208-201211

12V 130A

27020EBOLT(FOR ALTERNATOR)

main91552-81070i4GRFSE..GRX130201112-201208

27039COVER, ALTERNATOR REAR END

main27039-31390i4GRFSE..GRX130201112-201208

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31220i4GRFSE..GRX130201112-201208

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i4GRFSE..GRX130201112-201208

27312PLATE, RETAINER

main27312-72100i4GRFSE..GRX130201112-201208

27330ROTOR ASSY, ALTERNATOR

main27330-33090i4GRFSE..GRX130201112-201208

main27330-58460i4GRFSE..GRX130201211

27360COIL ASSY, ALTERNATOR

main27360-31420i4GRFSE..GRX130201211

main27360-31440i4GRFSE..GRX130201112-201208

main27360-31450i4GRFSE..GRX130201208-201211

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i4GRFSE..GRX130201112-201208

27384WASHER

main27384-50030i4GRFSE..GRX130201112-201208

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i4GRFSE..GRX130201112-201208

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i4GRFSE..GRX130201112-201208

main27415-0W131i4GRFSE..GRX130201307-201611

27416CAP, ALTERNATOR PULLEY

main27416-0W050i4GRFSE..GRX130201112-201208

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9012608050

main90126-08050

9151180820

main91511-80820

9155281040

main91552-81040

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
