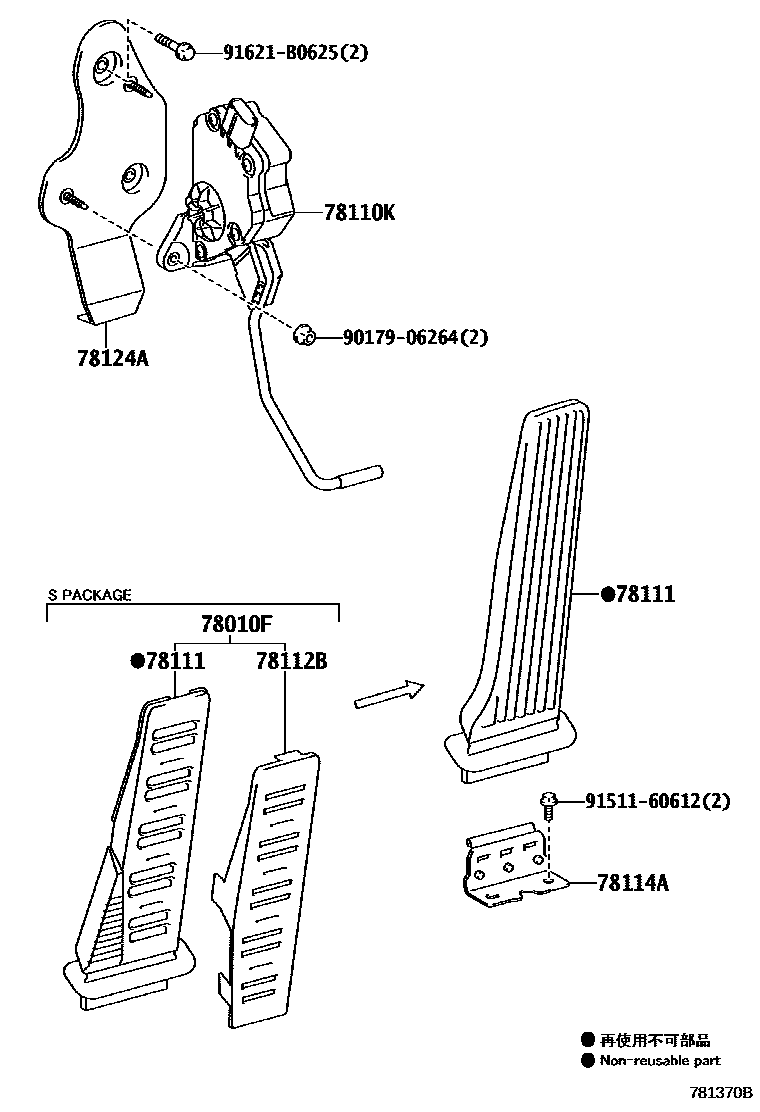

Toyota MARK X — ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78101-22040supersedes 78101-30101iGRX130201112-201208

S PACKAGE

main78101-22050supersedes 78101-30100iGRX130201407-201408

S PACKAGE

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30130iGRX130201208-201406

main78110-30131iGRX130201407-201601

main78110-30200iGRX130201602

78111PEDAL, ACCELERATOR

main78111-22050supersedes 78111-30130iGRX130201112-201208

S PACKAGE

main78111-22060iGRX130201407-201408

S PACKAGE

78112BPLATE, ACCELERATOR PEDAL

main78112-22050iGRX130201112-201208

S PACKAGE

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-30130iGRX130201112-201208

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30120iGRX130201112-201208

9017906264

main90179-06264

9151160612

main91511-60612

91621B0625

main91621-B0625

9 parts on this diagram · 2 diagrams in section
