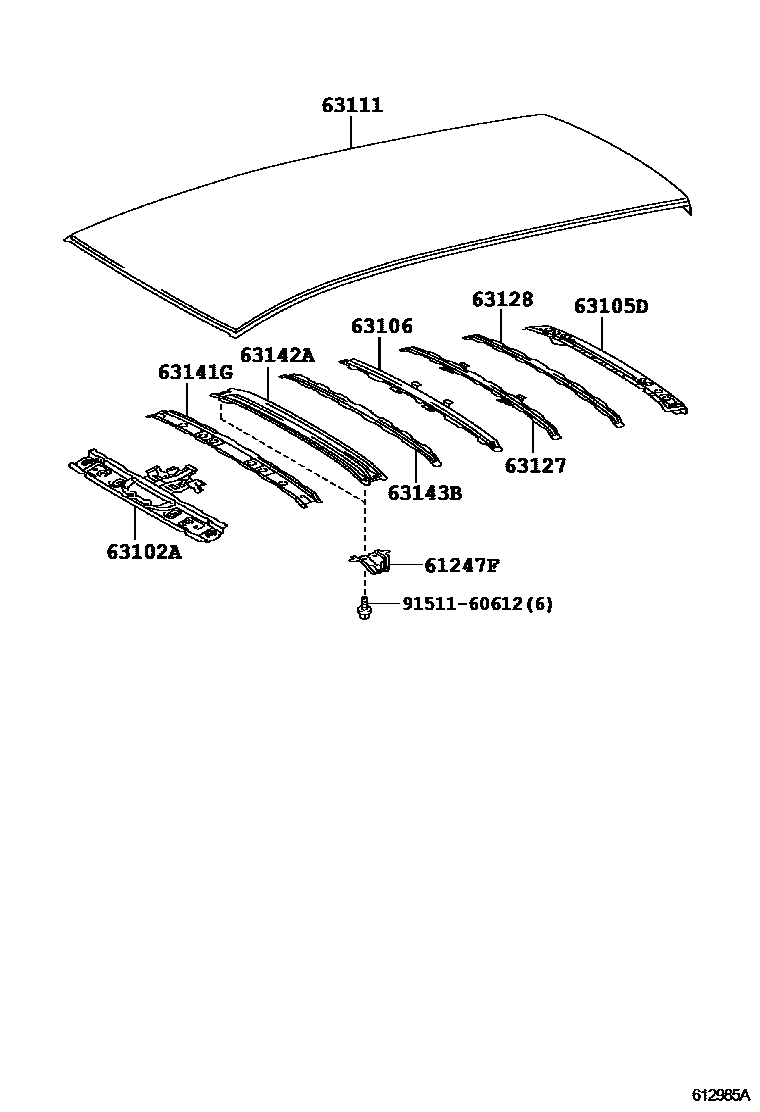

Toyota MARK X ZIO — ROOF PANEL & BACK WINDOW GLASS

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-72010×2i200709-201102

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-72901i200709-200902

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-72010i200709-201102

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-72010i200709-201102

63111PANEL, ROOF

main63111-72010i200709-201102

63127REINFORCEMENT, ROOF PANEL, NO.5

main63107-72010i200709-201102

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-72010i200709-201102

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-72010i200709-201102

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63141-72010i200709-201102

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-72010i200709-201102

9151160612

main91511-60612

11 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota MARK X ZIO

This section contains 11 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota MARK X ZIO. Key components include: REINFORCEMENT, ROOF SIDE RAIL, INNER, PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK WINDOW, UPPER, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4, PANEL, ROOF.
