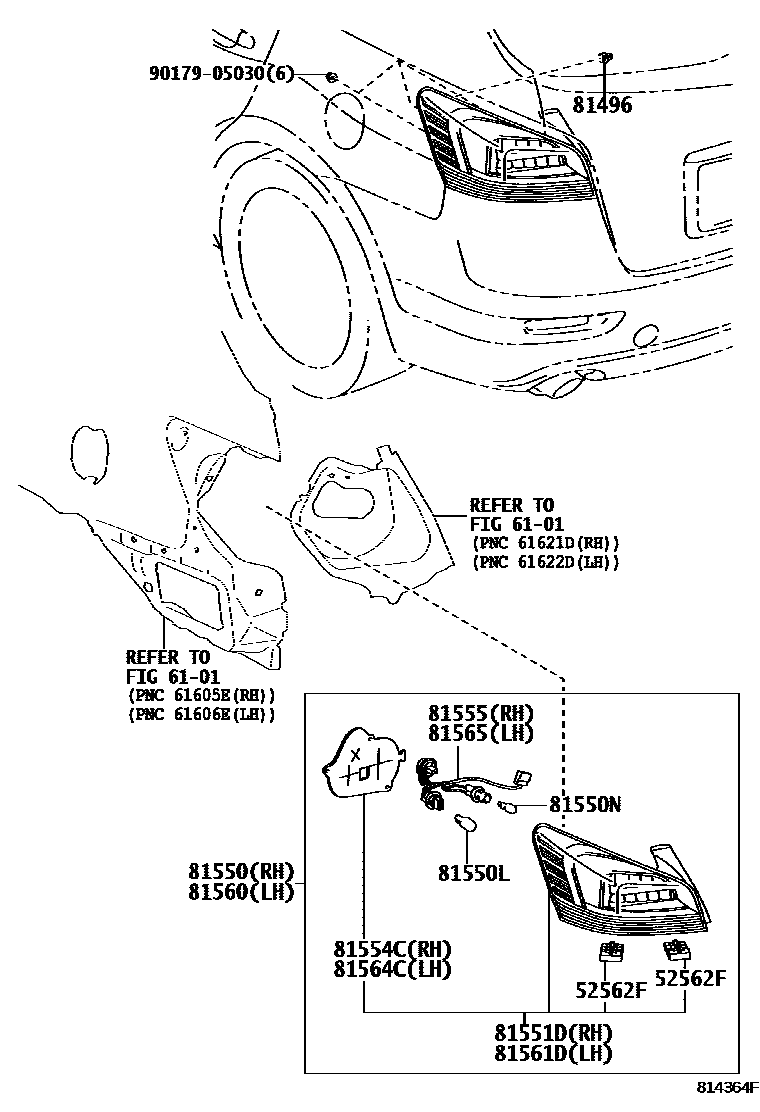

Toyota MARK X ZIO — REAR COMBINATION LAMP
52562FRETAINER, REAR BUMPER, UPPER SIDE
6101SIDE MEMBER
81496GUIDE, REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81554CPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81564CPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9017905030
main90179-05030
14 parts on this diagram · 2 diagrams in section
REAR COMBINATION LAMP for Toyota MARK X ZIO
This section contains 15 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota MARK X ZIO. Key components include: RETAINER, REAR BUMPER, UPPER SIDE, SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, LAMP ASSY, REAR COMBINATION, RH, BULB, REAR TURN SIGNAL LAMP.
