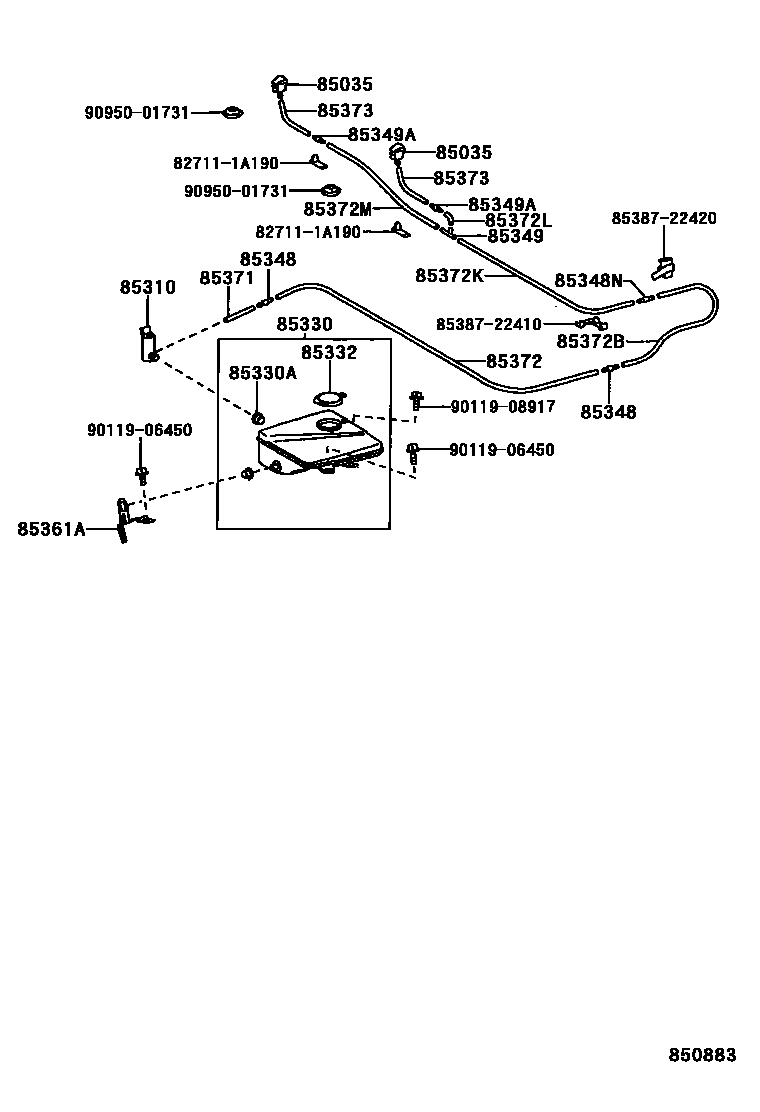

Toyota MARK 2 — WINDSHIELD WASHER

0001 12.5L TANK 0002 13.5L TANK 0003 13.5L TANK

85035NOZZLE SUB-ASSY, WASHER

main85385-22010-A0iGX90,JZX9#,LX90,SX90199210-199306

SUPER WHITE 2,040

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-A1iJZX9#199210-199306

WARM GRAY PEARL M,046

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-A1iGX90..ATM199304-199309

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-A2iJZX90..GD199310-199312

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-A3iGX90..ATM199604-199609

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-B0iGX90,JZX9#,LX90,SX90199210-199306

DARK BLUEISH GRAY M,183

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME.,199

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199306

LIGHT BEIGE M M,4M7

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK BROWN MC,4N2

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199306

DARK GRAYISH OLIVE M,6M7

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-G1iLX90..GRO199304-199309

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-G1iJZX9#199210-199306

DARK GREEN M I O,6N2

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-G2iGX90..ATM199504-199603

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22010-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

sub85385-22020

sub85385-30010

sub85385-22030

main85385-22020-A0iGX90,JZX9#,LX90,SX90199306-199609

SUPER WHITE 2,040

sub85385-30010

sub85381-30060

sub85385-22030

sub85381-30090

sub85385-33080

sub85385-30040

main85385-22020-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199306-199609

LIGHT BEIGE M M,4M7

sub85385-30010

sub85381-30060

sub85385-22030

sub85381-30090

sub85385-33080

sub85385-30040

main85385-22020-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199306-199409

DARK GRAYISH OLIVE M,6M7

sub85385-30010

sub85381-30060

sub85385-22030

sub85381-30090

sub85385-33080

sub85385-30040

main85385-22020-G1iGX90,JZX91,93..ATM;JZX90,LX90..GD,GDG,GRO,TOUS,TOUV199306-199609

DARK GREEN M I O,6N2

sub85385-30010

sub85381-30060

sub85385-22030

sub85381-30090

sub85385-33080

sub85385-30040

main85385-22020-G1iLX90..GRO199310-199403

sub85385-30010

sub85381-30060

sub85385-22030

sub85381-30090

sub85385-33080

sub85385-30040

main85385-30010-A0iGX90,JZX9#199306-199609

WARM GRAY PM,046

sub85385-22020

sub85385-32030

sub85385-24010

sub85385-30040

sub85381-30090

main85385-30010-B0iGX90,JZX9#,LX90,SX90199306-199409

DK.BL.GRAY ME,183

sub85385-22020

sub85385-32030

sub85385-24010

sub85385-30040

sub85381-30090

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iGX90,JZX9#,LX90,SX90199210-199609

sub85330-10280

main85330-12280iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199609

85330JAR ASSY, WINDSHIELD WASHER

main85315-22190iGX90199210-199609

main85315-22200iJZX9#,LX90,SX90199210-199609

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGX90,JZX9#,LX90,SX90199210-199609

85332CAP, WINDSHIELD WASHER JAR

main85316-12290iGX90199309-199609

main85316-22190iGX90199210-199309

sub85316-12290

main85316-33120iJZX9#,LX90,SX90199309-199409

main85332-20750iGX90199210-199309

sub85316-33120

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGX90,JZX91199210-199409

main85349-89122iJZX91199409-199609

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260iJZX90,93,LX90,SX90199210-199409

main85375-10260iGX90199409-199609

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iGX90,JZX9#,LX90,SX90199210-199409

main85348-14390iJZX9#,LX90..GDG,GL,GRO,TOUV199409-199609

main85348-14390iJZX9#,LX90..GDG,GL,GRO,TOUV199409-199609

main85378-22520iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS199409-199609

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iGX90,JZX9#,LX90,SX90199210-199609

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-22520iGX90199210-199609

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199306

main90099-33299iGX90199306-199609

main90099-33299iGX90199210-199306

main90099-33299iGX90199210-199609

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iJZX90,93,LX90,SX90199210-199609

main90099-33080iGX90199409-199609

main90099-33080iGX90199210-199409

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33075iJZX91199409-199609

main90099-33299iJZX90,93,SX90..GD,GL,GRO,TOUS199210-199609

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33077iGX90,JZX9#,LX90,SX90199210-199609

sub90099-33080

main90099-33299iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS199409-199609

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iJZX90..GD,TOUS199210-199609

main90099-33299iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS199409-199609

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080iGX90,JZX9#,LX90,SX90199210-199609

main90099-33299iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS199409-199609

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGX90,JZX91199210-199609

827111A190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A190

8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410

8538722420CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22420

9011906450

main90119-06450

9011908917

main90119-08917

9095001731

main90950-01731

23 parts on this diagram · 3 diagrams in section
