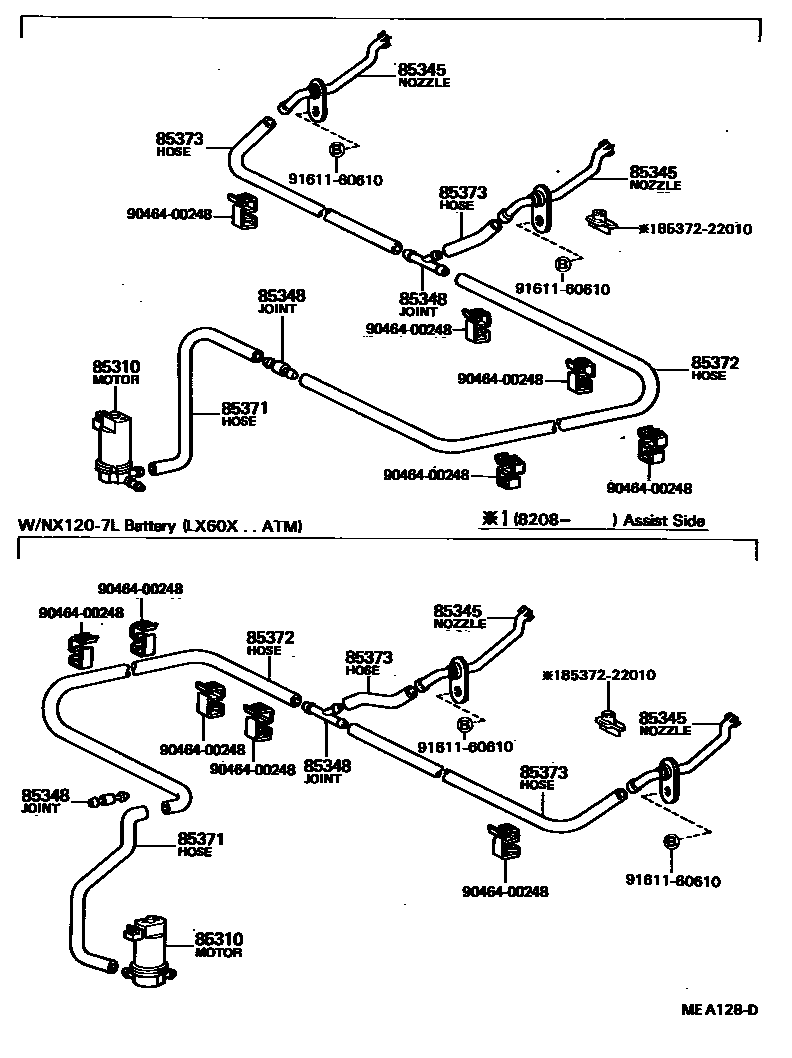

Toyota MARK 2 — WINDSHIELD WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100i198105-198208

W/NX120-7L BATTERY

main85310-20100i198009-198105

main85310-22080i198105-198407

main85310-22080i198208-198407

W/NX120-7L BATTERY

85345NOZZLE, WINDSHIELD WASHER

main85341-22130i198009-198208

main85341-22131i198208-198407

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85031-14080i198208-198407

2WAY,W/NX120-7L BATTERY

main85355-14010i198009-198407

3WAY

main85355-87201i198009-198407

2WAY

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i198009-198407

main90446-06013i198208-198407

main90446-07001i198009-198407

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i198307-198407

main90446-07001i198009-198208

main90446-07001i198208-198307

main90446-07001i198208-198407

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299i198208-198407

main90445-07073i198110-198208

L=650

main90446-06013i198009-198407

8537222010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-22010

9046400248

main90464-00248

9161160610

main91611-60610

9 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota MARK 2

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MARK 2. Key components include: SWITCH & RELAY & COMPUTER, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
