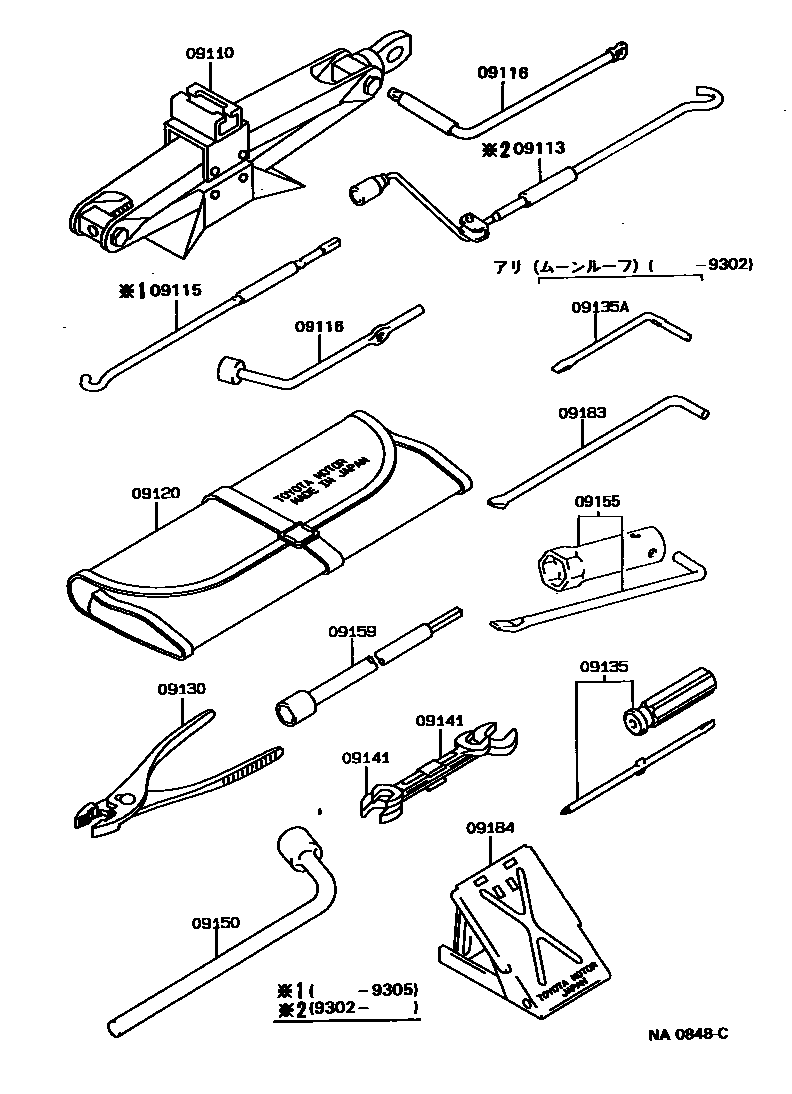

Toyota MARK 2 — STANDARD TOOL

09110JACK ASSY

main09111-22050i199309-199512

09113HANDLE, JACK

main09113-30040i199302-199305

09115ROD SUB-ASSY, JACK HANDLE

main09115-30020i198808-199302

09116LEVER, JACK HANDLE

main09116-16010i199304-199305

main09116-30010i198808-199302

09120BAG, TOOL

main09120-30020i198808-199302

main09120-30030i198808-199302

09130PLIERS

main99913-11500i198808-199302

09135DRIVER, SCREW

main99915-10700i198808-199309

09135ABIT, SCREW DRIVER

main09135-00012i198808-199302

09141SPANNER

main99914-10810i199302-199305

main99914-11214i199305-199309

09150WRENCH, HUB NUT BOX

main09150-26010i199008-199207

main09150-40010i199305-199512

09155WRENCH, SPARK PLUG

main09155-41020i198808-199512

09159WRENCH, SPARE WHEEL CARRIER

main09159-22010i198808-199512

09183WRENCH, WHEEL CAP

main09183-00010i198808-199008

09184STOPPER, WHEEL

main09184-00010i198808-199008

14 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota MARK 2

This section contains 14 genuine Toyota parts for the STANDARD TOOL system of the Toyota MARK 2. Key components include: JACK ASSY, HANDLE, JACK, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
