Toyota MARK 2 — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86160-22680iJZX93..GDG;JZX90,91..GD,GDG,TOUV199210-199609

sub86160-22850

86160SPEAKER ASSY, FRONT NO.1

main86160-22600iGX90,JZX90,93,LX90,SX90199210-199409

MATUSHITA

sub86160-22601

main86160-22601iGX90,JZX90,93,LX90,SX90199409-199609

MATUSHITA

main86160-22610iGX90,JZX90,LX90,SX90199210-199212

sub86160-22611

main86160-22611iGX90,JZX90,93,LX90,SX90199212-199609

main86160-22620iJZX90..GDG199210-199609

main86160-22620iJZX90..GDG199210-199509

main86160-22620iJZX91199210-199609

main86160-22620iJZX93..GDG;JZX90..GD,TOUV199509-199609

86160BSPEAKER ASSY, REAR

main86160-22630iGX90,JZX90,93,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199609

PLANT NO.=M21,22,MATUSHITA

main86160-22640iGX90,JZX90,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199212

sub86160-22641

main86160-22641iGX90,JZX90,93,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199212-199609

main86160-22650iJZX90..GDG199210-199509

main86160-22650iGX90,JZX90..GD,TOUS,TOUV199210-199609

main86160-22650iJZX91199210-199609

main86160-22650iJZX93..GDG;JZX90..GD,TOUV199509-199609

86160PSPEAKER ASSY, FRONT NO.2

main86160-22660iJZX91199210-199609

sub86160-22710

main86160-22660iJZX90..GD,GDG199409-199509

sub86160-22710

main86160-22660iJZX90..GDG199509-199609

sub86160-22710

main86160-22660iJZX90..GDG199409-199609

sub86160-22710

main86160-22670iJZX90..GDG199509-199609

sub86160-22720

main86160-22670iGX90,JZX9#199210-199609

sub86160-22720

main86160-22670iJZX90..GD,GDG199409-199509

sub86160-22720

main86160-22670iJZX90..GD,GDG199409-199609

sub86160-22720

main86160-22690iGX90,JZX90,93199409-199609

RH,PIONEER

main86160-22700iGX90,JZX90,93199409-199609

LH,PIONEER

main86160-22710iGX90,JZX90,93199409-199609

RH,MATUSHITA

main86160-22720iGX90,JZX90,93199409-199609

LH,MATUSHITA

86262ACOVER, SPEAKER, FRONT

main86262-22010iLX90,SX90..GL199210-199609

9011906005

main90119-06005

9015960227

main90159-60227

9015960527

main90159-60527

9018906125

main90189-06125

9018906171

main90189-06171

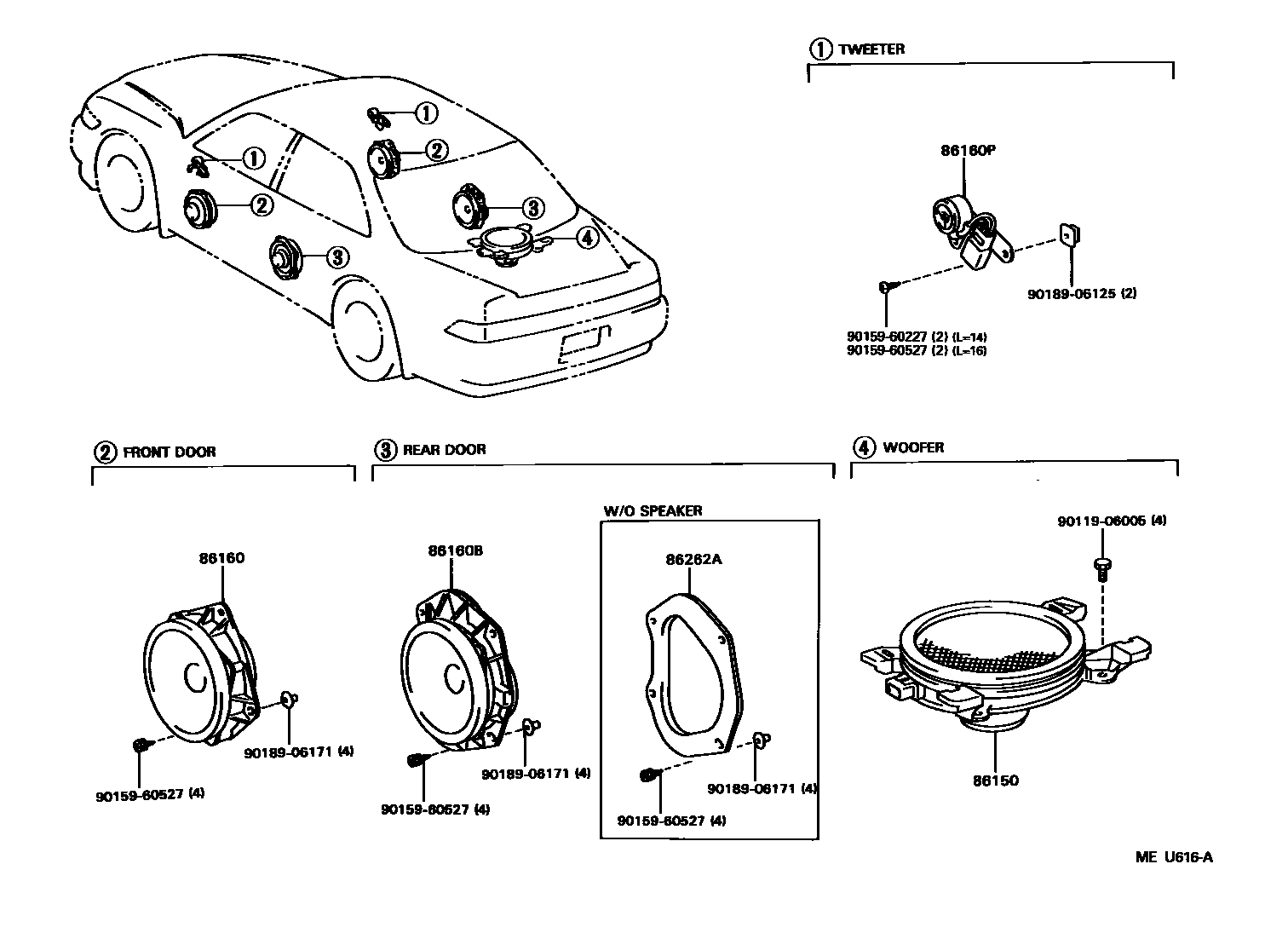

10 parts on this diagram · 1 diagram in section
