Toyota MARK 2 — SPEAKER

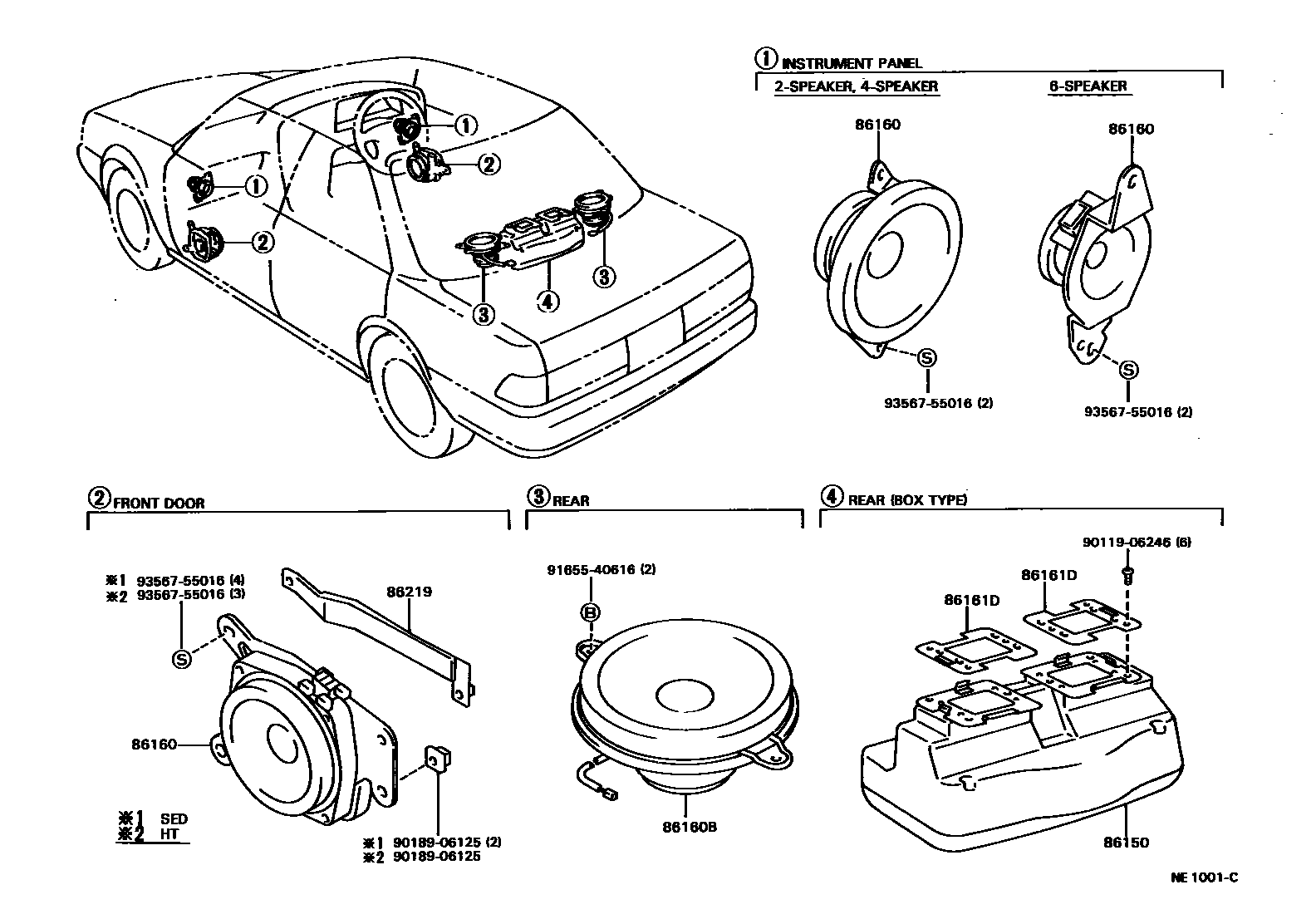

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86150-22010i199008-199302

main86150-22020i199008-199210

86160SPEAKER ASSY, FRONT NO.1

main86160-22440×2i198808-198809

INSTRUMENT PANEL

main86160-22441×2i199108-199309

main86160-22450×2i198808-199008

main86160-22451×2i199008-199012

main86160-22452×2i199302-199512

main86160-22460i198808-199008

main86160-22470i198808-199008

main86160-22500×2i198808-198910

main86160-22501×2i199008-199210

main86160-22510i198808-198910

main86160-22511i199008-199210

main86160-22520i199004

main86160-22521i199008-199210

main86160-22571i199008-199302

main86160-22581i199008-199302

86160BSPEAKER ASSY, REAR

main86160-22480×2i198808-198908

main86160-22490×2i198808-199008

main86160-22530i199004

main86160-22591×2i199008-199302

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-22010×2i199008-199302

86219BRACKET, STEREO COMPONENT SPEAKER, NO.1

main86219-22010i198808-199512

main86219-22020i198808-199512

main86219-22030i198910-199008

main86219-22040i199112

9011906246

main90119-06246

9018906125

main90189-06125

9165540616

main91655-40616

9356755016

main93567-55016

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota MARK 2

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota MARK 2. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, BRACKET, SPEAKER MOUNTING, NO.1, BRACKET, STEREO COMPONENT SPEAKER, NO.1.
