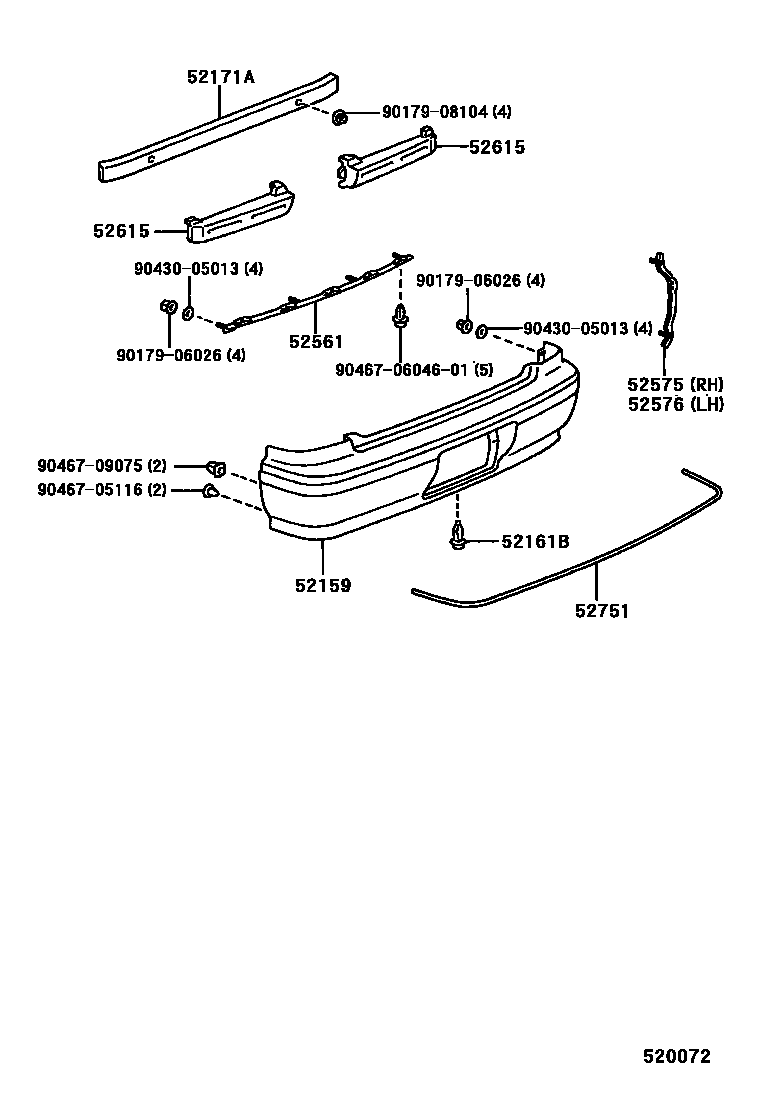

Toyota MARK 2 — REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
SUPER WHITE 2,040
WHITE PM.,057
WHITE PM.,2CF
SU.WHITE PM,28Y
SILVER ME,199
SILVER ME.,1C0
BLACK ME,205
WINE RED MC.,3L4
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.GREEN MC.P.I.O.,2FF
DK.BLUE MC.,8L4
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52561RETAINER, REAR BUMPER, UPPER CENTER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
9017906026
main90179-06026
9017908104
main90179-08104
9043005013
main90430-05013
9046705116
main90467-05116
904670604601
main90467-0604601
9046709075
main90467-09075
14 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota MARK 2
This section contains 14 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota MARK 2. Key components include: COVER, REAR BUMPER, PIECE, REAR BUMPER, REINFORCEMENT, REAR BUMPER, NO.1, RETAINER, REAR BUMPER, UPPER CENTER, RETAINER, REAR BUMPER SIDE, RH.
