Toyota MARK 2 — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
GRAY,TRIM4#,8#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-22080-02iGX81..HT..GD..HTWC; MX83;GX81..SED..(GD,GDG);GX81..HT..(SPC,TWC,TWT)198910-199006
NEW MAROON,TRIM3#
main64033-22080-04iGX81..HT..GD..HTWC; MX83;GX81..SED..(GD,GDG);GX81..HT..(SPC,TWC,TWT)198910-199006
DARK BLUE,TRIM8#
main64033-22080-06iGX81..HT..GD..HTWC; MX83;GX81..SED..(GD,GDG);GX81..HT..(SPC,TWC,TWT)198910-199006
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
main64033-22081-04iGX81..HT..GD..HTWC; MX83;GX81..SED..(GD,GDG);GX81..HT..(SPC,TWC,TWT)199006-199008
DARK BLUE,TRIM8#
main64033-22081-06iGX81..HT..GD..HTWC; MX83;GX81..SED..(GD,GDG);GX81..HT..(SPC,TWC,TWT)199006-199008
SABLE,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-06070-13×2iLX80,SX80..GL..(HTWC,TD); LX80,SX80..KYO,STD; LX80..GL..DSL;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302
GRAY,TRIM1#; GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
64271FTRIM, ROOM PARTITION
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
GRAY,TRIM3#,4#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
MEDIUM GRAY,TRIM1#
64711MAT, LUGGAGE COMPARTMENT FLOOR
GRAY,TRIM1#,3#,4#
GRAY,TRIM8#
GRAY,TRIM1#
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
GRAY,TRIM4#,8#
GRAY,TRIM1#; GRAY,TRIM8#
64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
GRAY,TRIM4#,8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
GRAY,TRIM1#,3#,4#
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
GRAY,TRIM8#
GRAY,TRIM1#; GRAY,TRIM1#,3#,4#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05020-13×9iLX80,SX80..GL..(CI,TD); LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198908-199008
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
GRAY,TRIM1#,3#,4#
main64716-22220-03iLX80,SX80..GL..(HTWC,TD); LX80,SX80..SED..GR;GX81,LX80,YX80..SED..(GL,LG)..(DSL,HTWC,LPG)199008-199302
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM1#,3#,4#
GRAY,TRIM3#,4#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-22300-03iLX80,SX80..GL..(HTWC,TD); LX80,SX80..SED..GR;GX81,LX80..SED..(GL,LG)..(DSL,HTWC)199008-199302
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-B0×5iLX80,SX80..GL..(HTWC,TD); LX80..GL..DSL;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-22300-03iLX80,SX80..GL..(HTWC,TD); LX80,SX80..SED..GR;GX81,LX80..SED..(GL,LG)..(DSL,HTWC)199008-199302
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM3#,4#,8#
GRAY,TRIM1#,3#,4#
64770COVER ASSY, SPARE WHEEL
GRAY,TRIM1#
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
GRAY,TRIM1#; GRAY,TRIM8#
GRAY,TRIM8#
64778BPROTECTOR, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
64791COVER, BACK DOOR TRIM
GRAY,TRIM1#,3#,4#
GRAY,TRIM1#,3#,4#
main64791-22040-03iLX80,SX80,YX80..KYO,STD; LX80,SX80..GL..(HTWC,TD); LX80,SX80..SED..GR;GX81,JZX81,LX80,YX80..SED..(GD,GL,LG)..(DSL,HTWC,LPG,TWC)199008-199302
64791ACLIP(FOR BACK DOOR TRIM)
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86289BPLATE, SPEAKER GRILE
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9016750022
main90167-50022
9018304046
main90183-04046
9052302002
main90523-02002
30 parts on this diagram · 1 diagram in section

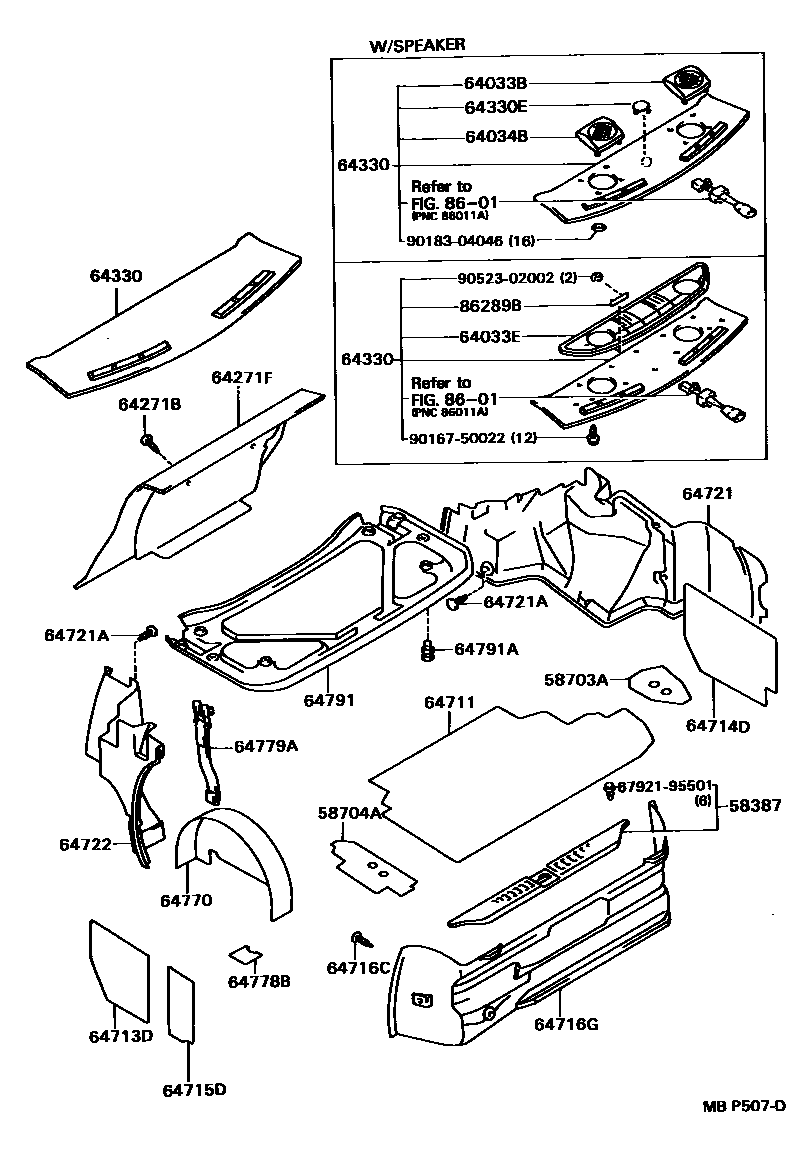

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota MARK 2
This section contains 30 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota MARK 2. Key components include: PLATE, REAR FLOOR FINISH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER.
