Toyota MARK 2 — METER

0001 1������-� 0002 1�������-� 0003 1����� & ����(��������) 0004 1����� & ����(���������) 0005 1���-�� ��� & ���-����-���� ��

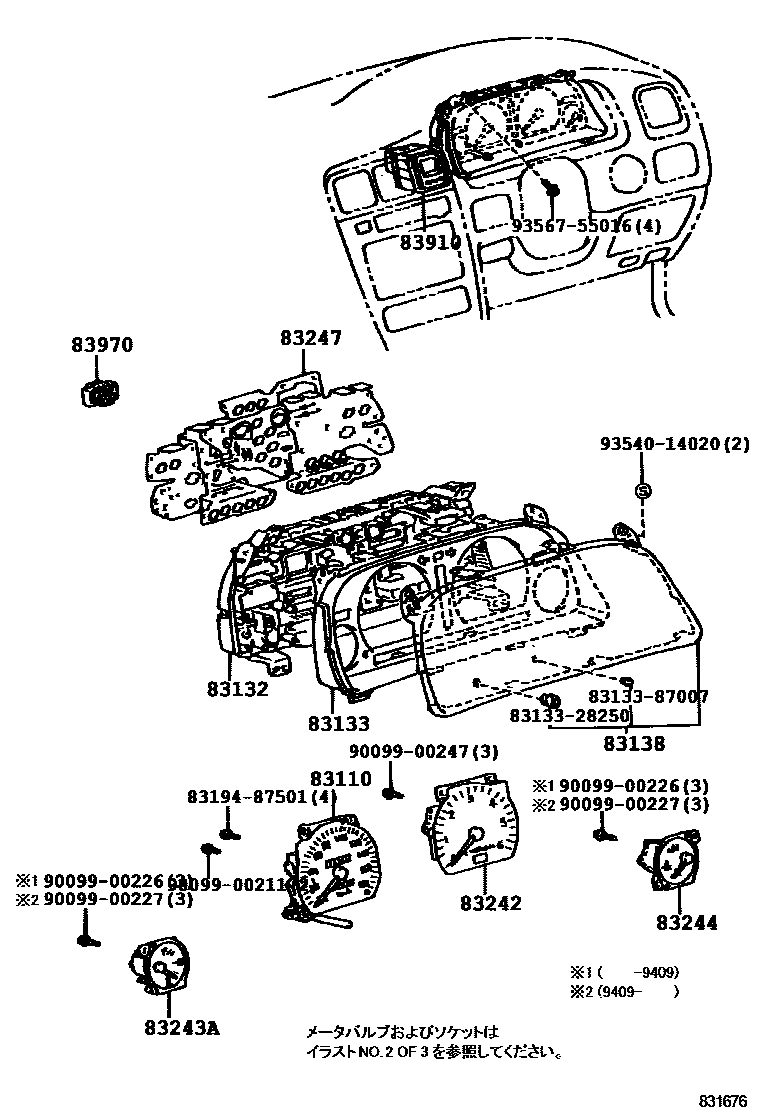

83110SPEEDOMETER ASSY

main83110-2A850iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV199210-199609

main83110-2A860iLX90199210-199609

83132CASE, COMBINATION METER

main83132-2A670iJZX90..GD,TOUS199210-199409

main83132-2A690iJZX90..MTM199210-199409

main83132-2A730iGX90..ATM199210-199409

main83132-2A770iGX90,SX90..MTM199210-199409

main83132-2A790iSX90..ATM199210-199409

main83132-2A830iLX90..ATM199210-199409

main83132-2A870iJZX90..GD,TOUS199210-199409

main83132-2A880iGX90,JZX90,93..ATM..GD199210-199609

main83132-2A890iLX90..MTM199210-199409

main83132-2C010iJZX93..GD199310-199409

main83132-2C030iJZX90..GD,TOUS199409-199609

main83132-2C050iJZX90..MTM199409-199609

main83132-2C090iGX90,JZX90..ATM..(GD,TOUS)199409-199609

sub83132-2C030

main83132-2C110iGX90,SX90..MTM199409-199609

sub83132-2C050

main83132-2C130iSX90..ATM199409-199609

sub83132-2C030

main83132-2C150iLX90..ATM199409-199609

main83132-2C170iLX90..MTM199409-199609

sub83132-2C150

main83132-2C190iJZX93..GD199409-199609

83133PLATE, COMBINATION METER, NO.1

main83133-2A190iJZX90..GD,TOUS199409-199609

main83133-2A190iJZX90,93..ATM..(GD,TOUS,TOUV)199210-199409

main83133-2A210iJZX90..MTM199210-199409

main83133-2A230iGX90,JZX90..ATM..(GD,TOUS)199210-199609

main83133-2A250iLX90..ATM199210-199609

main83133-2A270iLX90..MTM199210-199609

main83133-2A290iSX90..ATM199210-199609

main83133-2A310iGX90,SX90..MTM199210-199609

83138GLASS, SPEEDOMETER

main83138-22550iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV199210-199609

main83138-22570iLX90199210-199609

main83138-2A180iGX90,JZX90,93..ATM..GD199210-199609

83242TACHOMETER ASSY, ENGINE

main83242-2A050iJZX90..TOUV199210-199609

main83242-2A070iJZX90..GD,TOUS199210-199609

main83242-2A090iGX90199210-199609

main83242-2A110iSX90199210-199609

main83242-2A130iLX90..ATM199210-199609

main83242-2A150iJZX90..GD,TOUS199210-199609

main83242-2A170iLX90..MTM..GL199210-199609

main83242-2A190iJZX93..GD199310-199609

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-22510iGX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV199210-199609

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-22510iGX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV199210-199609

83247PLATE, METER CIRCUIT

main83247-2A880iGX90,JZX90,93..ATM..GD199210-199609

main83247-2C210iJZX90..MTM;GX90,JZX90,SX90..GD,GL,GRO,TOUS199210-199409

main83247-2C230iLX90..GRO199210-199609

main83247-2C250iJZX90..ATM..TOUV199210-199409

main83247-2C270iJZX93..GD199310-199409

main83247-2C290iJZX90..TOUV199409-199609

main83247-2C310iGX90,JZX90,SX90..GD,GL,GRO,TOUS199409-199609

main83247-2C330iJZX93..GD199409-199609

83910CLOCK ASSY

main83910-22460iGX90,JZX9#,LX90,SX90199210-199609

main83910-22470iJZX90,91..GDG199210-199609

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iJZX93..GD199210-199609

main83970-12020iGX90,JZX90..ATM..GD199210-199609

MATUSHITA

main83970-12020iGX90,JZX90..ATM..GD199210-199409

main83970-12020iGX90,JZX90..ATM..GD199210-199409

main83970-20010iJZX93..GD199210-199609

main83970-20010iJZX90,91..GDG199210-199609

main83970-20010iJZX90,91..GDG199210-199409

NIPPON DENSO

main83970-20010iJZX90,91..GDG199210-199409

main83970-20010iGX90,JZX90,93,LX90,SX90..ATM..(GD,GL,GRO,TOUS,TOUV)199210-199609

8313328250PLATE, COMBINATION METER, NO.1

main83133-28250

8313387007PLATE, COMBINATION METER, NO.1

main83133-87007

8319487501

main83194-87501

9009900211

main90099-00211

9009900226

main90099-00226

9009900227

main90099-00227

9009900247

main90099-00247

9354014020

main93540-14020

9356755016

main93567-55016

19 parts on this diagram · 5 diagrams in section
