Toyota MARK 2 — LOCK CYLINDER SET

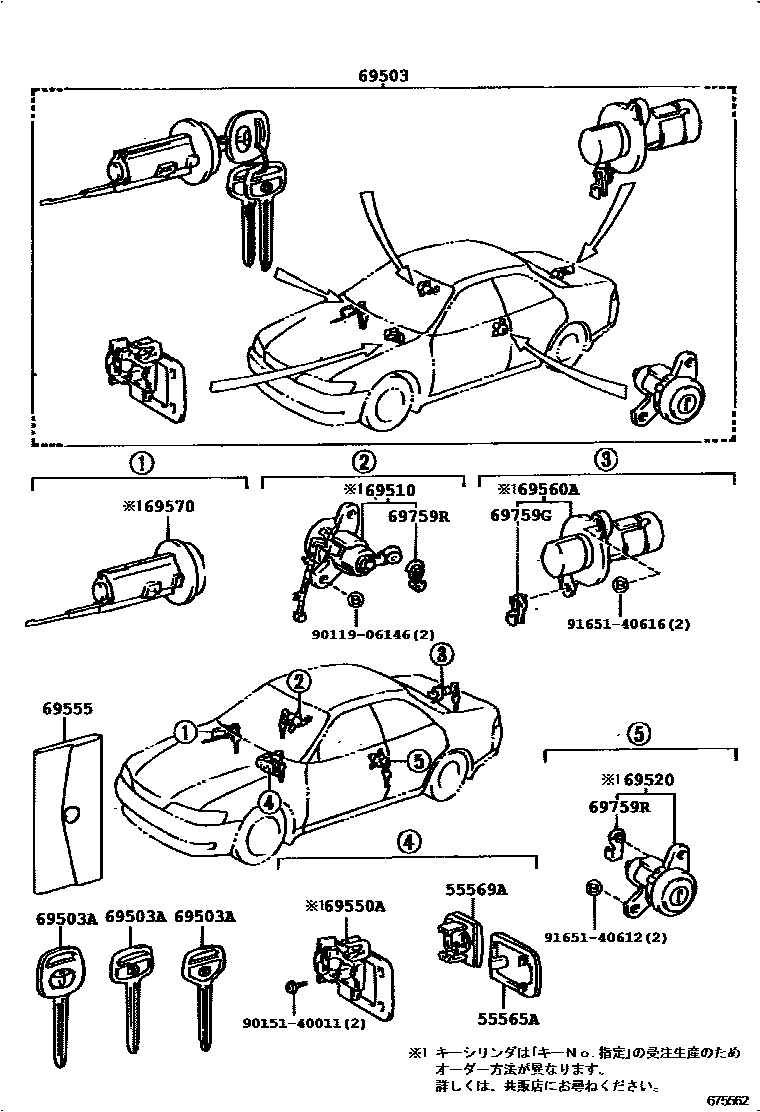

Parts diagram
55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK
main55565-22030-E0i199210-199609
SABLE,TRIM4#
main55565-22030-G0i199210-199609
JADE,TRIM6#
main55565-22030-J0i199210-199409
GRAYISH BLUE,TRIM8#
55569ACOVER, GLOVE COMPARTMENT DOOR LOCK
main55569-22040-E0i199210-199609
SABLE,TRIM4#
main55569-22040-G0i199210-199609
JADE,TRIM6#
main55569-22040-J0i199210-199409
GRAYISH BLUE,TRIM8#
69503CYLINDER SET, LOCK
main69005-2A110i199210-199409
main69005-2A120i199210-199409
69503AKEY, BLANK
main90999-00185i199409-199609
main90999-00186i199210-199310
main90999-00188i199210-199609
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
main69510-22240i199210-199409
main69510-22250i199210-199409
69520CYLINDER ASSY, FRONT DOOR LOCK, LH
main69520-22220i199210-199609
69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
main69550-22100i199210-199609
69555COVER, KEY
main69555-17020i199210-199609
69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
main69560-22360i199210-199609
69570CYLINDER ASSY, IGNITION SWITCH LOCK
main69570-22100i199210-199609
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
main69759-24080i199210-199609
69759RSNAP, FRONT DOOR LOCK CYLINDER
main69759-24100i199210-199609
ORANGE
main69759-24110i199210-199609
PINK
9011906146
main90119-06146
9015140011
main90151-40011
9165140612
main91651-40612
9165140616
main91651-40616

16 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota MARK 2

This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota MARK 2. Key components include: HANDLE, GLOVE COMPARTMENT DOOR LOCK, COVER, GLOVE COMPARTMENT DOOR LOCK, CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH.
