Toyota MARK 2 — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22040-04i198009-198208

BLUE,BLUE,TRIM8#

main81240-22040-08i198009-198407

IVORY,IVORY,TRIM2#,3#,4#

main81240-22040-14i198208-198407

BLUE,BLUE,TRIM8#

main81240-22050-04i198009-198208

BLUE,BLUE,TRIM8#

main81240-22050-08i198009-198407

IVORY,IVORY,TRIM2#,3#,4#

main81240-22050-14i198208-198407

BLUE,BLUE,TRIM8#

main81240-22060-04i198009-198208

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81240-22060-08i198208-198407

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

main81240-22060-14i198208-198407

BLUE,W/SUN ROOF,BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main90981-12005×2i198009-198407

main99132-12100i198009-198407

81241LENS, ROOM LAMP, NO.1

main81241-20060i198009-198208

W/SUN ROOF

main81241-22040i198009-198407

81248COVER, ROOM LAMP, NO.1

main81248-22040-04i198009-198208

BLUE,BLUE,TRIM8#

main81248-22040-08i198009-198407

IVORY,IVORY,TRIM2#,3#,4#

main81248-22040-14i198208-198407

BLUE,BLUE,TRIM8#

81250LAMP ASSY, ROOM, NO.2

main81250-23010i198011-198208

main81250-91601i198208-198407

81250BBULB, ROOM LAMP, NO.2

main90981-11004i198011-198208

main99132-12100i198208-198407

81251LENS, ROOM LAMP, NO.2

main81251-23010i198011-198407

81260LAMP ASSY, GLOVE BOX

main81260-22070i198009-198208

81260ALAMP ASSY, MAP

main81260-22040-04i198009-198011

BLUE,BLUE,TRIM8#

main81260-22040-08i198009-198011

IVORY,IVORY,TRIM2#,4#

main81260-22041-04i198011-198208

BLUE,BLUE,TRIM8#

main81260-22041-08i198208-198407

IVORY,*30,IVORY,TRIM3#,4#; IVORY,IVORY,TRIM3#,4#

main81260-22041-14i198208-198407

BLUE,*30,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

main81260-22060-04i198009-198208

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81260-22060-08i198110-198407

IVORY,W/SUN ROOF,IVORY,TRIM2#,3#,4#

main81260-22060-14i198208-198407

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81260-22080-08i198208-198407

IVORY,IVORY,TRIM3#,4#

main81260-22080-14i198208-198407

BLUE,BLUE,TRIM8#

81260BBULB(FOR GLOVE BOX)

main90981-11018i198009-198208

81260CBULB(FOR MAP LAMP)

main90981-12005×2i198009-198208

81261LENS AND COVER, MAP LAMP

main81261-22060-04i198009-198208

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81261-22060-08i198308-198311

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

main81261-22060-14i198208-198311

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81261-22061-08i198311-198407

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

main81261-22061-14i198311-198407

BLUE,W/SUN ROOF,BLUE,TRIM8#

main81261-22080-08i198208-198407

IVORY,IVORY,TRIM3#,4#

main81261-22080-14i198208-198407

BLUE,BLUE,TRIM8#

main81268-22040-04i198009-198208

BLUE,BLUE,TRIM8#

main81268-22040-08i198208-198407

IVORY,*30,IVORY,TRIM3#,4#; IVORY,IVORY,TRIM3#,4#

main81268-22040-14i198208-198407

BLUE,*30,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

81268CAP MAP LAMP

main81268-22060-04i198009-198208

BLUE,BLUE,TRIM8#

main81268-22060-08i198208-198407

IVORY,IVORY,TRIM3#,4#

main81268-22060-14i198208-198407

BLUE,BLUE,TRIM8#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030i198009-198208

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i198009-198208

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030i198009-198208

9016445005

main90164-45005

9016840017

main90168-40017

9324924016

main93249-24016

9351013008

main93510-13008

9354024016

main93540-24016

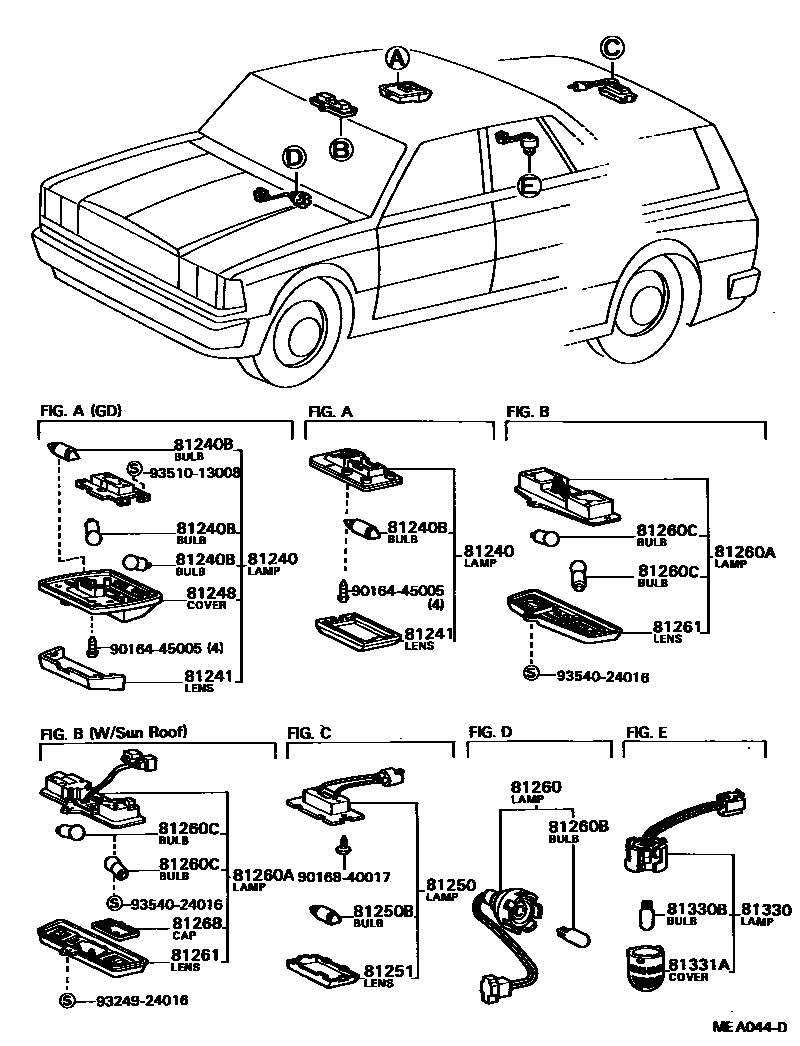

21 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota MARK 2

This section contains 21 genuine Toyota parts for the INTERIOR LAMP system of the Toyota MARK 2. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, COVER, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
