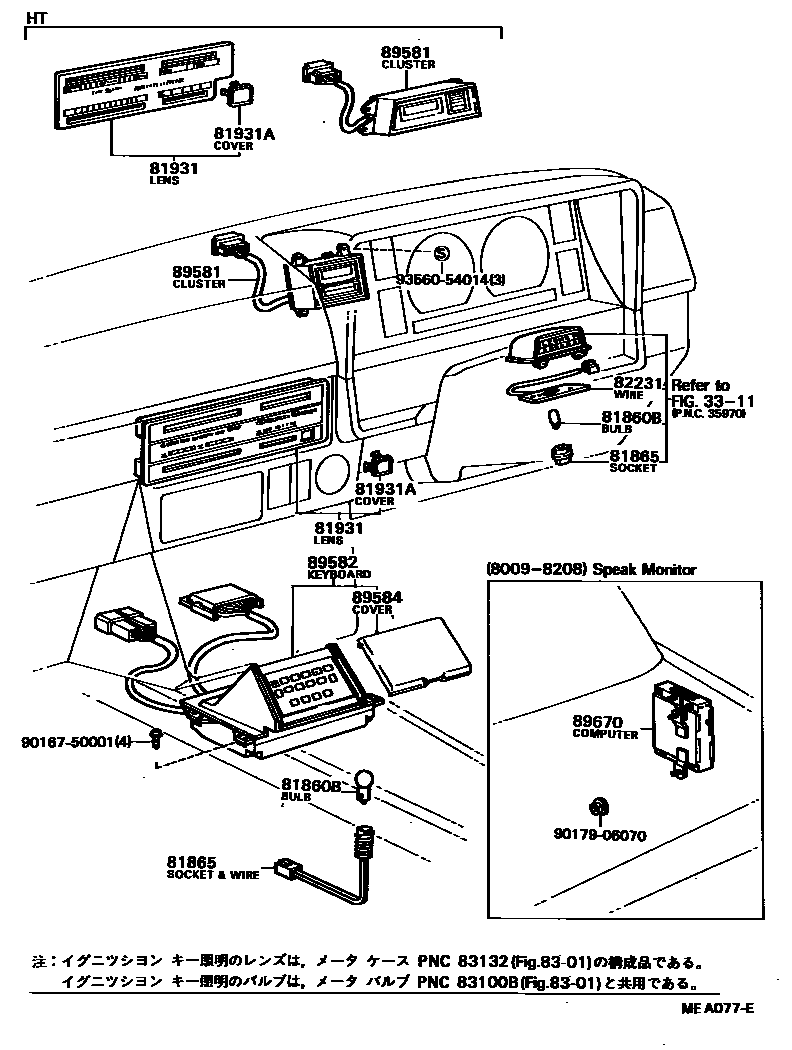

Toyota MARK 2 — INDICATOR

3311

81860BBULB, TRANSMISSION INDICATOR LAMP

main90981-11006iGX6#..4HC198009-198407

main99132-11034iGX6#,LX60,MX6#,RX60,TX6#..3FC,4FC198009-198208

main99132-12034iGX6#,LX60,65,MX6#,SX60,TX67..3FC,4FC198208-198407

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iGX6#,LX60,MX6#,RX60,TX6#..3FC,4FC198009-198208

main35906-22040iGX6#,LX60,65,MX6#,SX60,TX67..3FC,4FC198208-198407

main35963-30030iGX6#..4HC198009-198407

81931LENS, HEATER CONTROL INDICATOR

main55519-22040iGX6#,LX6#,MX60,61,RX6#,TX6#..(SED,V,WG)..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198208

main55519-22041iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GL,GR,LE,LG,LGT,STD)198208-198407

main55519-22060iGX6#,MX61,63..SED198009-198208

W/AUTOMATIC AIR CONDITIONER

main55519-22090iGX61,MX61..HT..GD198208-198407

W/AUTOMATIC AIR CONDITIONER

main55519-22100iGX61,MX61..SED..GD198208-198407

W/AUTOMATIC AIR CONDITIONER

main55519-22110iGX61,LX65,MX61..SED..(LE,LG,LGT)198208-198407

W/AUTOMATIC AIR CONDITIONER

main81940-22010iGX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)198009-198208

main81940-22011iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198208-198407

main81940-22020iGX6#,MX61,63..HT198009-198208

W/AUTOMATIC AIR CONDITIONER

main81940-22030iGX61,MX61..HT..(LE,LG,LGT)198208-198407

W/AUTOMATIC AIR CONDITIONER

81931ACOVER, COOLER SWITCH HOLE

main55538-22020iGX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LG,LGT)198009-198407

main55538-22030iGX6#,LX6#,MX60,61,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198407

82231WIRE, POSITION INDICATOR LAMP

main35977-30040iGX6#..4HC198009-198407

89581CLUSTER, CRUISE PILOT COMPUTER DISPLAY

main89581-22020iMX61,63..SED..GD198009-198208

main89581-22021iGX61..SED..TWC198208-198407

W/*DS

main89581-22030iGX61..HT..GD198009-198208

main89581-22031iGX61..HT..GD..EFI198208-198407

W/*DS

main89581-22040iMX61,63..HT..GD198009-198208

main89581-22041iGX61..HT..TWC198208-198407

W/*DS

main89581-22060iGX61..SED..(4FC,5F)..GD198009-198208

main89581-22061iGX61..SED..(4FC,5F)..GD..EFI198208-198407

W/*DS

89582KEYBOARD, CRUISE PILOT COMPUTER

main89582-22010iGX61,MX61,63..(4FC,5F)..GD198009-198208

main89582-22011iGX61..(4FC,5F)..GD198208-198407

89584COVER, CRUISE PILOT COMPUTER KEYBOARD

main89584-22010iGX61..(4FC,5F)..GD198208-198407

89670COMPUTER ASSY, TELLTALE WARNING(FOR SPEAK MONITOR)

main89670-22010iMX63198009-198012

9016750001

main90167-50001

9017906070

main90179-06070

9356054014

main93560-54014

13 parts on this diagram · 1 diagram in section
