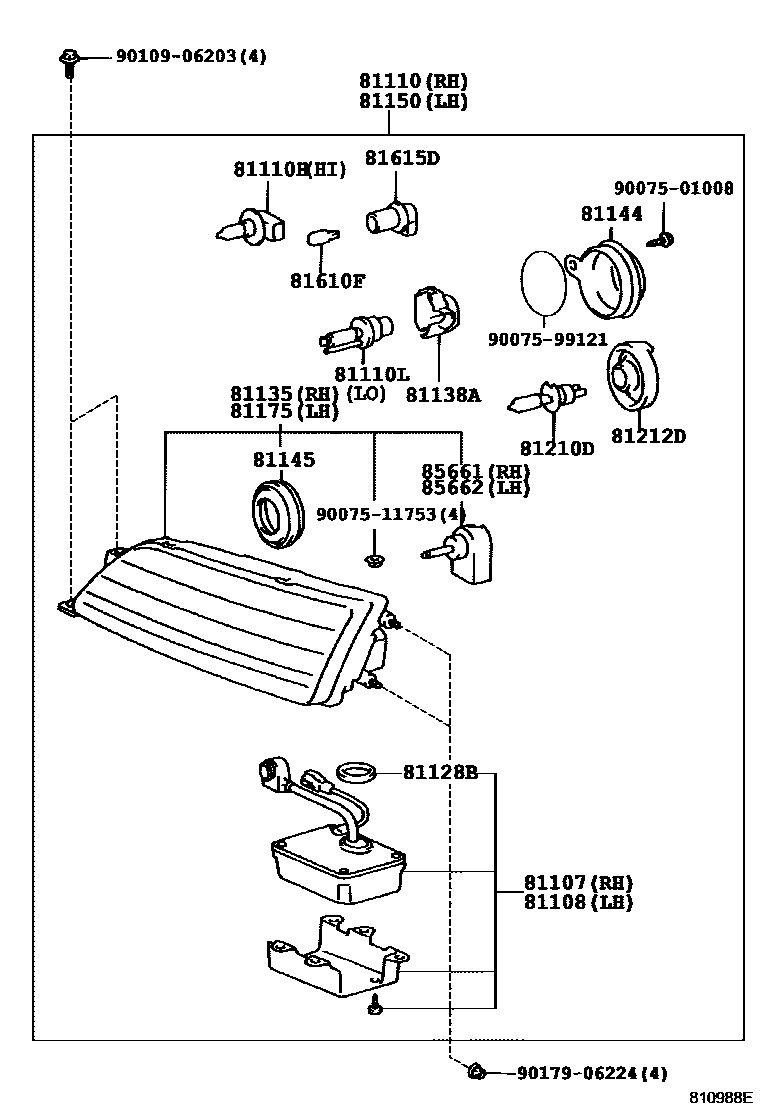

Toyota MARK 2 — HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110HEADLAMP ASSY, RH
81110HBULB, HEADLAMP, NO.3
81110LBULB, DISCHARGE HEADLAMP
81128BPACKING, HEADLAMP (FOR BALLAST)
81135UNIT ASSY, HEADLAMP, RH
81138ASOCKET & WIRE, HEADLAMP
81144COVER, HEADLAMP, NO.1
81145COVER, HEADLAMP, NO.2
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
81210DBULB, FOG LAMP
81212DCOVER, FOG LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9007501008
main90075-01008
9007511753
main90075-11753
9007599121
main90075-99121
9010906203
main90109-06203
9017906224
main90179-06224
23 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota MARK 2
This section contains 25 genuine Toyota parts for the HEADLAMP system of the Toyota MARK 2. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB, HEADLAMP, NO.3.
