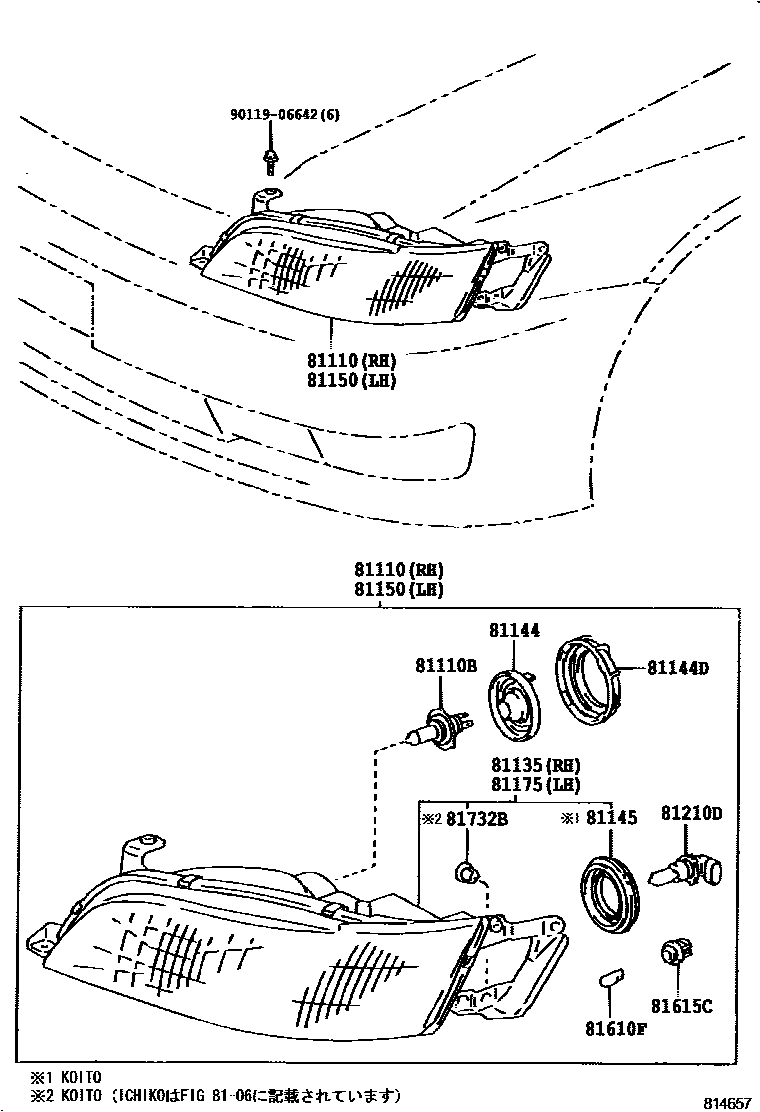

Toyota MARK 2 — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-22640i199210-199609

main81110-22650i199210-199609

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i199210-199308

main90981-22003×2i199210-199609

main90981-22004×2i199308-199609

81135UNIT ASSY, HEADLAMP, RH

main81105-22650i199210-199609

main81130-22640i199210-199609

81144COVER, HEADLAMP, NO.1

main81139-22650×2i199210-199609

main90075-99084×2i199210-199609

81144DCAP, HEADLAMP LOCKING

main81112-22650×2i199210-199609

main90075-99083×2i199210-199609

81145COVER, HEADLAMP, NO.2

main90075-99054×2i199210-199409

81150HEADLAMP ASSY, LH

main81150-22640i199210-199609

main81150-22650i199210-199609

81175UNIT ASSY, HEADLAMP, LH

main81106-22650i199210-199609

main81170-22640i199210-199609

81210DBULB, FOG LAMP

main90981-13054×2i199210-199609

main90981-13064×2i199210-199609

81610FBULB(FOR CLEARANCE LAMP)

main90981-11038×2i199210-199409

81615CSOCKET & WIRE, CLEARANCE LAMP

main81615-22650×2i199210-199609

main90075-99085×2i199210-199609

81732BSIDE TURN SIGNAL LAMP RETAINER

main90075-10802×2i199210-199609

KOITO

9011906642

main90119-06642

13 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota MARK 2

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota MARK 2. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1, CAP, HEADLAMP LOCKING.
