Toyota MARK 2 — HEADLAMP

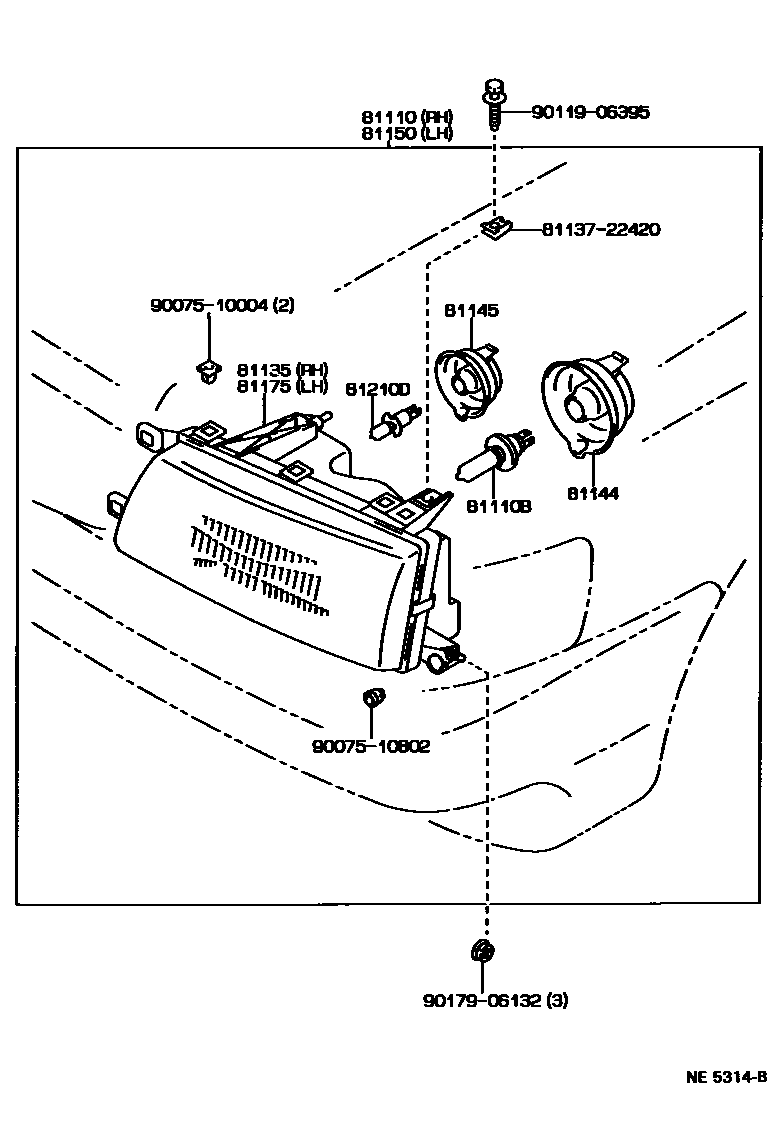

Parts diagram

81110HEADLAMP ASSY, RH

main81110-22550i198808-199008

main81110-22560i198909-199008

main81110-22561i199008-199512

main81110-22570i198808-199008

main81110-22571i199008-199210

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i199008-199210

main90981-13022×2i198808-199008

main90981-22001×2i199210-199302

main90981-22004×2i199302-199512

81135UNIT ASSY, HEADLAMP, RH

main81130-22550i198808-199008

main81130-22560i198909-199008

main81130-22561i199008-199512

main81130-22570i198808-199008

main81130-22571i199008-199210

81144COVER, HEADLAMP, NO.1

main81139-20730×2i198808-199512

81145COVER, HEADLAMP, NO.2

main90075-99008i198808-199008

main90075-99041×2i199008-199210

81150HEADLAMP ASSY, LH

main81150-22550i198808-199008

main81150-22560i198808-199008

main81150-22561i199008-199512

main81150-22570i198808-199008

main81150-22571i199008-199210

81175UNIT ASSY, HEADLAMP, LH

main81170-22550i198808-199008

main81170-22560i198909-199008

main81170-22561i199008-199512

main81170-22570i198808-199008

main81170-22571i199008-199210

81210DBULB, FOG LAMP

main90981-13018×2i199008-199210

main90981-13027×2i198808-199008

8113722420PROTECTOR, HEADLAMP, NO.2 RH

main81137-22420

9007510004

main90075-10004

9007510802

main90075-10802

9011906395

main90119-06395

9017906132

main90179-06132

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota MARK 2

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota MARK 2. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1.
