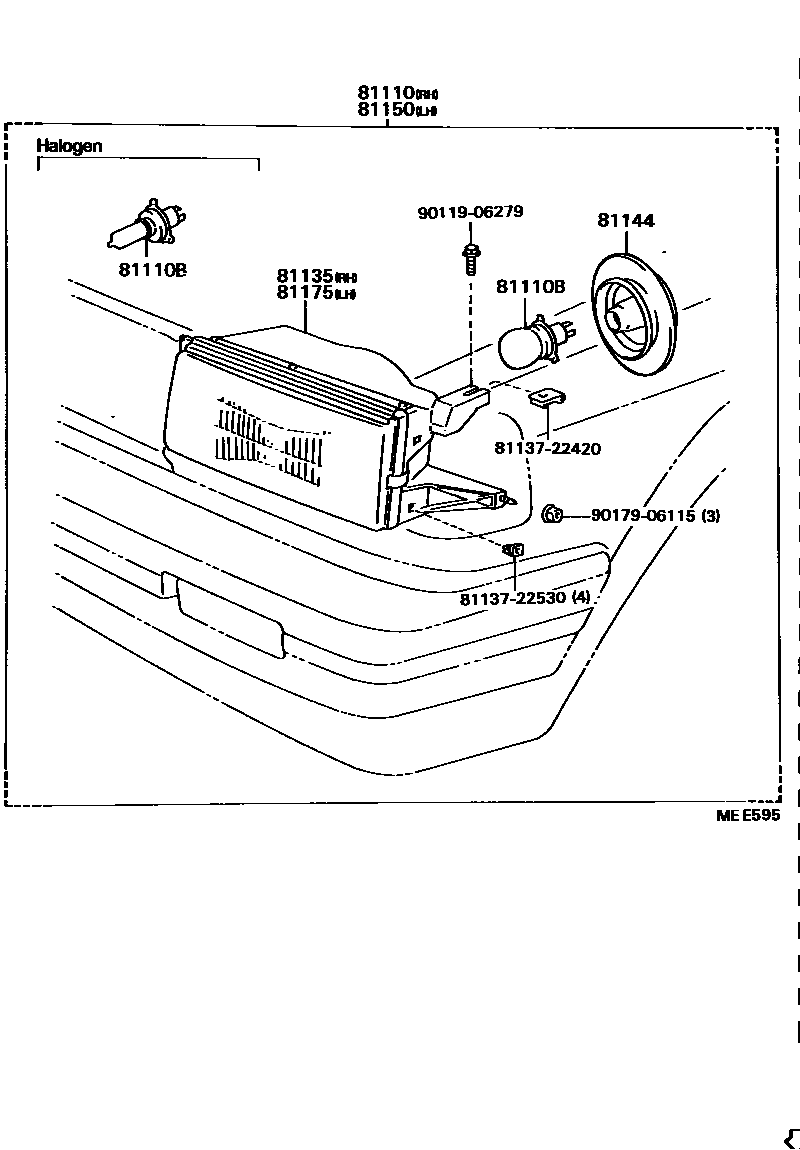

Toyota MARK 2 — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-22421i198701-198808

*30

main81110-22431i198608-198808

HALOGEN

main81110-22531i198608-198808

main81110-80407i198408-198608

main81110-80408i198408-198608

HALOGEN

main81110-80418i198408-198608

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198408-198608

main90981-13022×2i198701-198808

81135UNIT ASSY, HEADLAMP, RH

main81130-22421i198608-198808

main81130-22431i198608-198808

HALOGEN

main81130-22531i198608-198808

main81135-22420i198408-198608

main81135-22430i198408-198608

HALOGEN

main81135-22530i198408-198608

81144COVER, HEADLAMP, NO.1

main81139-20730×2i198408-198808

main81139-30590×2i198408-198808

81150HEADLAMP ASSY, LH

main81150-22421i198701-198808

*30

main81150-22431i198608-198808

HALOGEN

main81150-22531i198608-198808

main81150-80399i198408-198608

main81150-80400i198408-198608

HALOGEN

main81150-80410i198408-198608

81175UNIT ASSY, HEADLAMP, LH

main81170-22421i198608-198808

main81170-22431i198608-198808

HALOGEN

main81170-22531i198608-198808

main81175-22420i198408-198608

main81175-22430i198408-198608

HALOGEN

main81175-22530i198408-198608

8113722420PROTECTOR, HEADLAMP, NO.2 RH

main81137-22420

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9011906279

main90119-06279

9017906115

main90179-06115

10 parts on this diagram · 4 diagrams in section

HEADLAMP for Toyota MARK 2

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota MARK 2. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1, HEADLAMP ASSY, LH.
