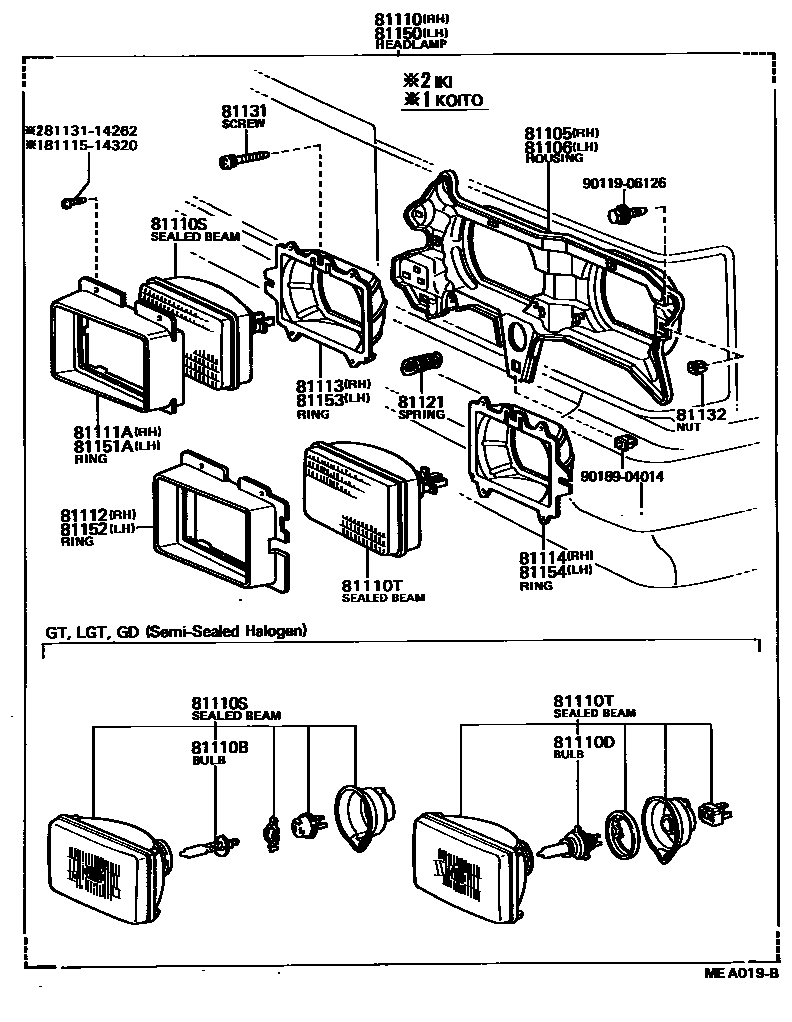

Toyota MARK 2 — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81110SSEALED BEAM UNIT, NO.1
12V 50W
81110TSEALED BEAM UNIT, NO.2
12V 40/60W
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81112RING, SEALED BEAM RETAINING, NO.2 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81132NUT, HEADLAMP SELF LOCKING
81150HEADLAMP ASSY, LH
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81152RING, SEALED BEAM RETAINING, NO.2 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8111514320RING, HEADLAMP HOUSING
main81115-14320
8113114262SCREW, HEADLAMP ADJUSTING
main81131-14262
9011906126
main90119-06126
9018904014
main90189-04014
23 parts on this diagram · 6 diagrams in section
HEADLAMP for Toyota MARK 2
This section contains 44 genuine Toyota parts for the HEADLAMP system of the Toyota MARK 2. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
