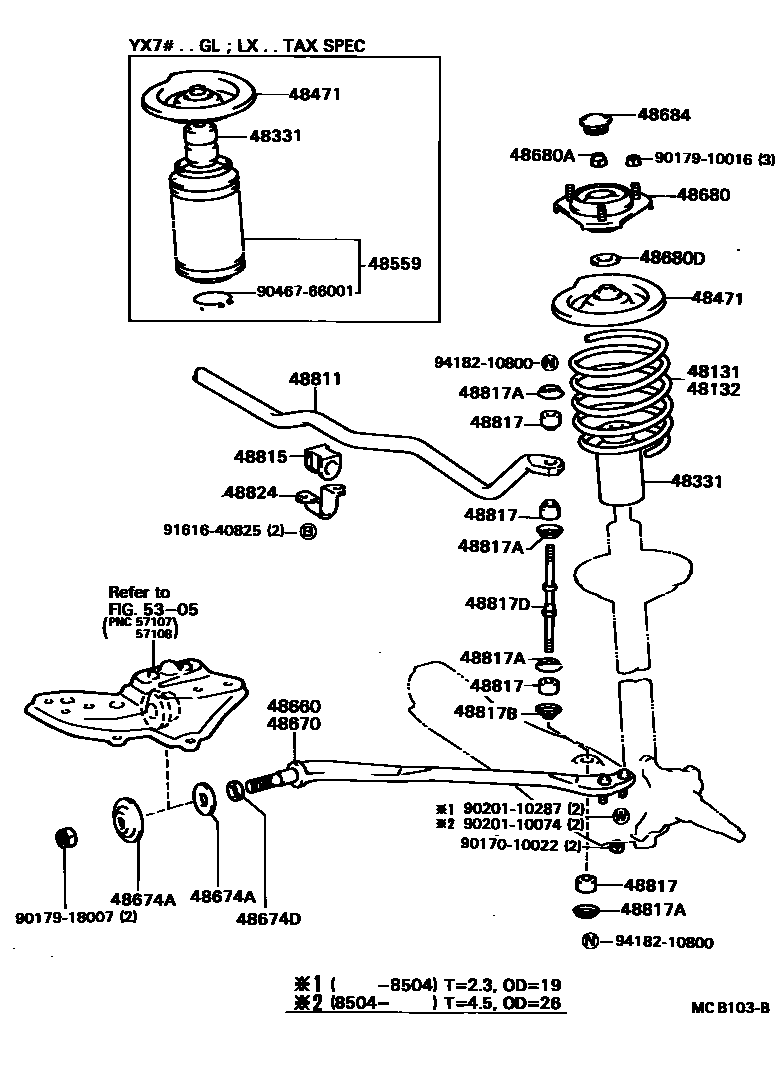

Toyota MARK 2 — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W/POWER STEERING
48132SPRING, FRONT COIL, LH
W/POWER STEERING
48331BUMPER, FRONT SPRING, NO.1
TAXI SPEC
48471SEAT, FRONT SPRING, UPPER
TAXI SPEC
48559COVER, SHOCK ABSORBER, DUST
TAXI SPEC
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
T=3.8(FR)
T=3.2(RR)
48674DSPACER(FOR STRUT BAR CUSHION)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
W/POWER STEERING
W/POWER STEERING
W/POWER STEERING
TAXI SPEC
48815BUSH, FRONT STABILIZER BAR, NO.1
TAXI SPEC
W/POWER STEERING
W/POWER STEERING
W/POWER STEERING
W/POWER STEERING
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
5305FLOOR SIDE MEMBER
9017010022
main90170-10022
9017910016
main90179-10016
9017918007
main90179-18007
9020110074
main90201-10074
9020110287
main90201-10287
9046766001
main90467-66001
9161640825
main91616-40825
9418210800
main94182-10800
29 parts on this diagram · 4 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota MARK 2
This section contains 48 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota MARK 2. Key components include: SHELL SUB-ASSY, W/STEERING KNUCKLE, RH, GUIDE SUB-ASSY, SHOCK ABSORBER ROD, ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT), NUT SUB-ASSY, SHOCK ABSORBER RING, SEAL, OIL(FOR SHOCK ABSORBER RING NUT).
