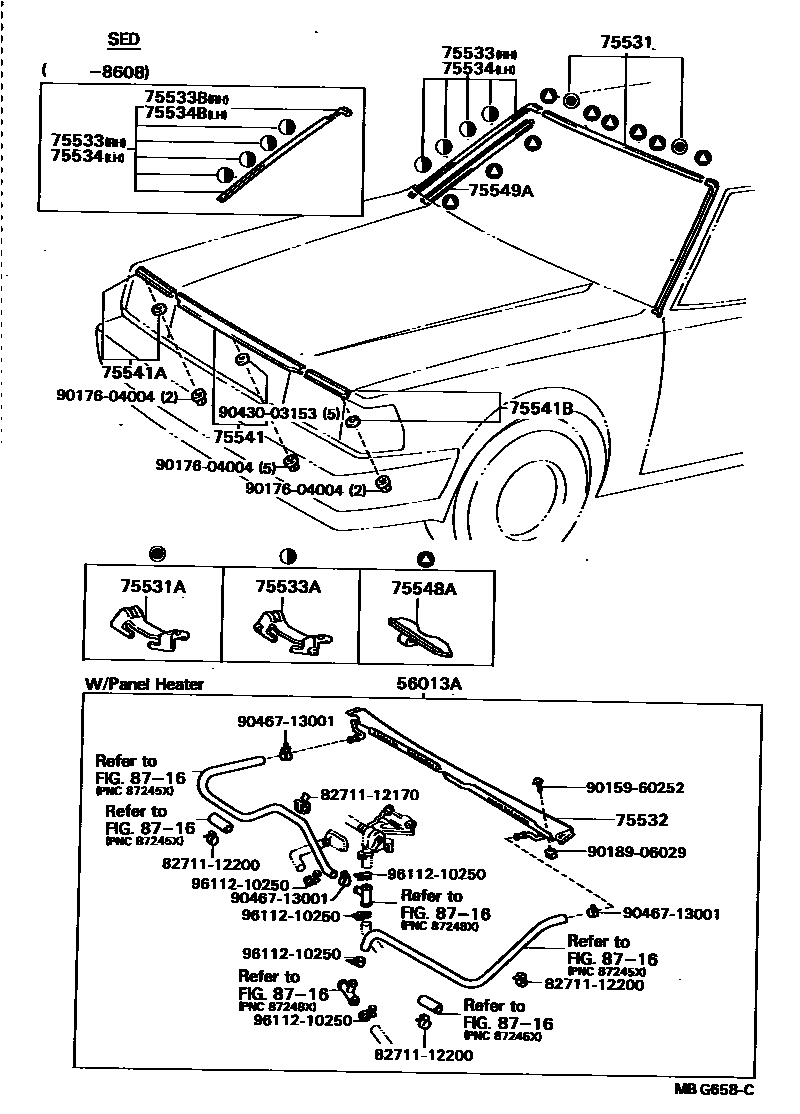

Toyota MARK 2 — FRONT MOULDING
56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
75531MOULDING, WINDSHIELD, OUTER UPPER
75531ACLIP, WINDSHIELD MOULDING SET, NO.1
75532MOULDING, WINDSHIELD, LOWER
W/PANEL HEATER
W/PANEL HEATER
75533MOULDING, WINDSHIELD, OUTSIDE RH
COLD SPEC
75533ACLIP, WINDSHIELD SIDE MOULDING, RH
75533BCOVER, WINDSHIELD MOULDING JOINT, UPPER RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75534BCOVER, WINDSHIELD MOULDING JOINT, UPPER LH
75541MOULDING, HOOD, FRONT
75541AMOULDING, HOOD, FRONT RH
75541BMOULDING, HOOD, FRONT LH
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75549AMOULDING, WINDSHIELD OUTSIDE SUB
COLD SPEC
8716HEATING & AIR CONDITIONING - WATER PIPING
8271112170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12170
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9015960252
main90159-60252
9017604004
main90176-04004
9018906029
main90189-06029
9043003153
main90430-03153
9046713001
main90467-13001
9611210250
main96112-10250
23 parts on this diagram · 2 diagrams in section
FRONT MOULDING for Toyota MARK 2
This section contains 28 genuine Toyota parts for the FRONT MOULDING system of the Toyota MARK 2. Key components include: MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER, SIDE MOULDING, MOULDING, WINDSHIELD, OUTER UPPER, CLIP, WINDSHIELD MOULDING SET, NO.1, MOULDING, WINDSHIELD, LOWER.
