Toyota MARK 2 — FRONT MOULDING

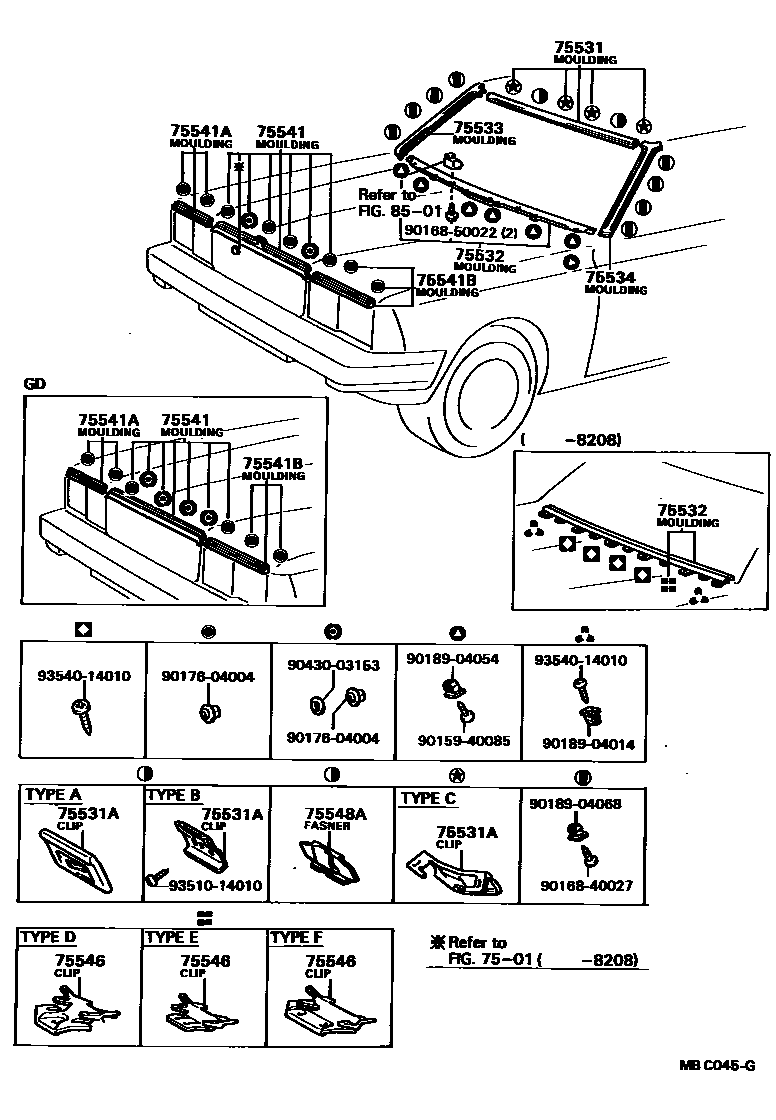

Parts diagram

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-22060i198009-198407

main75531-22070i198009-198407

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-22020×4i198009-198208

TYPE C

main75545-22030i198208-198407

TYPE C

main75545-30021×2i198009-198208

TYPE A

main75545-30040×2i198009-198407

TYPE B

75532MOULDING, WINDSHIELD, LOWER

main75504-22020i198009-198208

main75504-22030i198208-198407

main75535-22060i198208-198407

SEMI-CNCEAL WIPER

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-22080i198009-198208

main75533-22090i198009-198208

main75533-22100i198208-198407

main75533-22110i198208-198407

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-22070i198009-198208

main75534-22080i198009-198208

main75534-22090i198208-198407

main75534-22100i198208-198407

75541MOULDING, HOOD, FRONT

main75770-29075i198009-198208

main75770-29085i198009-198208

main75770-29095i198009-198208

main75770-29115i198208-198407

75541AMOULDING, HOOD, FRONT RH

main75780-29035i198009-198208

main75780-29055i198208-198407

75541BMOULDING, HOOD, FRONT LH

main75790-29025i198009-198208

main75790-29045i198208-198407

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-22030×4i198009-198208

TYPE D

main75547-22020×5i198009-198208

TYPE E

main75961-22020×2i198009-198208

TYPE F

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-22050×4i198208-198407

8501WINDSHIELD WIPER

→ Go to FIG 85-01

9015940085

main90159-40085

9016840027

main90168-40027

9016850022

main90168-50022

9017604004

main90176-04004

9018904014

main90189-04014

9018904054

main90189-04054

9018904068

main90189-04068

9043003153

main90430-03153

9351014010

main93510-14010

9354014010

main93540-14010

22 parts on this diagram · 2 diagrams in section

FRONT MOULDING for Toyota MARK 2

This section contains 24 genuine Toyota parts for the FRONT MOULDING system of the Toyota MARK 2. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), MOULDING, WINDSHIELD, OUTER UPPER, CLIP, WINDSHIELD MOULDING SET, NO.1, MOULDING, WINDSHIELD, LOWER, MOULDING, WINDSHIELD, OUTSIDE RH.
