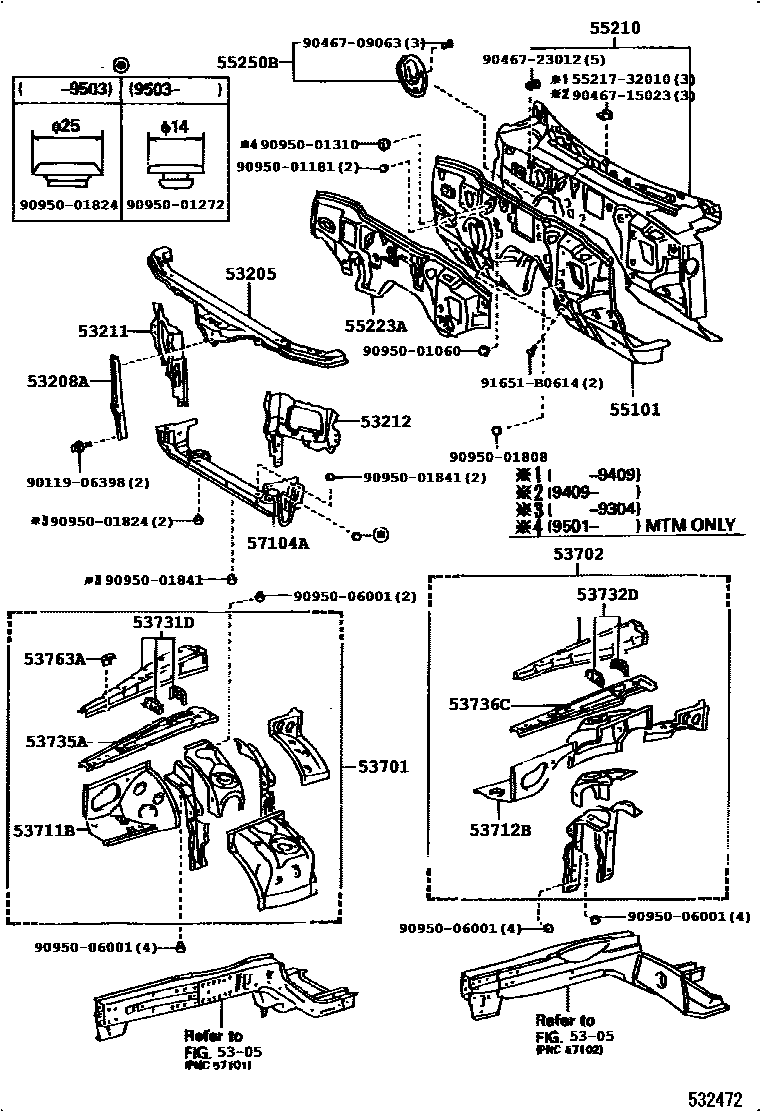

Toyota MARK 2 — FRONT FENDER APRON & DASH PANEL
5305
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
sub53731-22901
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
sub53732-22901
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53763ABRACKET, AIR CLEANER INLET MOUNTING
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
55250BINSULATOR ASSY, DUSH PANEL, NO.3
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9011906398
main90119-06398
9046709063
main90467-09063
9046715023
main90467-15023
9046723012
main90467-23012
9095001060
main90950-01060
9095001181
main90950-01181
9095001272
main90950-01272
9095001310
main90950-01310
9095001808
main90950-01808
9095001824
main90950-01824
9095001841
main90950-01841
9095006001
main90950-06001
91651B0614
main91651-B0614
33 parts on this diagram · 1 diagram in section
