Toyota MARK 2 — FRONT DOOR WINDOW REGULATOR & HINGE

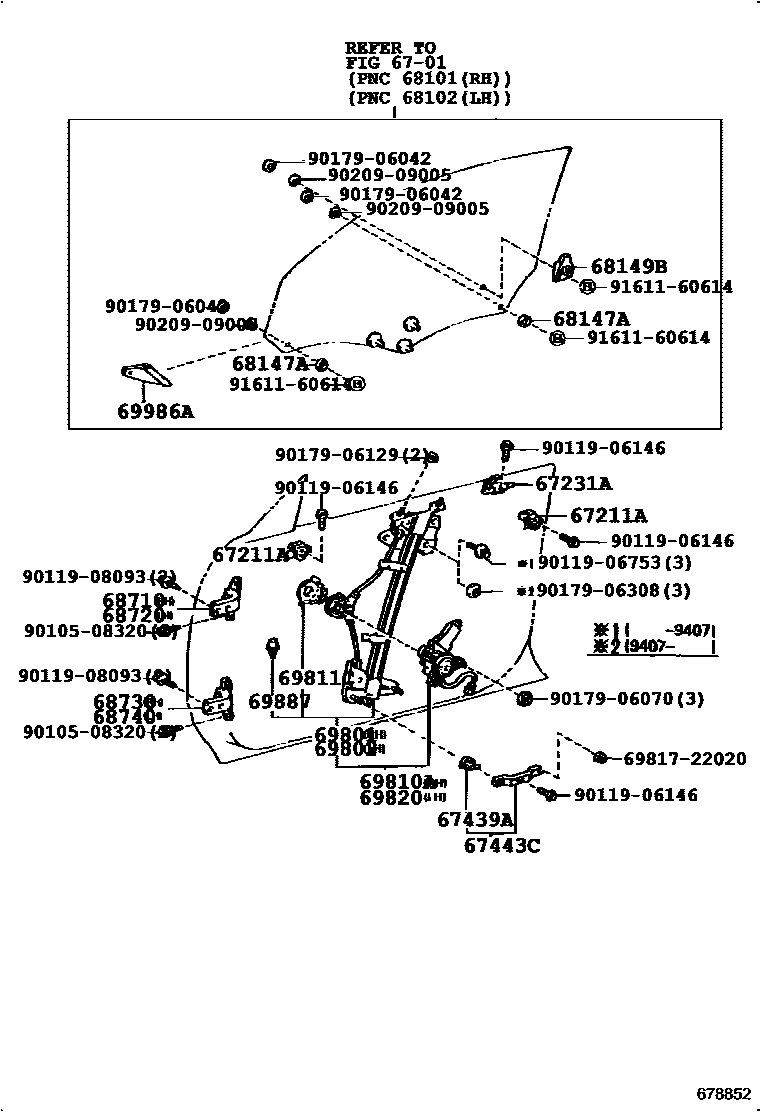

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-22040×4i199210-199609

67231ASUPPORT, FRONT DOOR TRIM

main67231-22110i199210-199609

main67232-22040i199210-199609

67439ASNAP, FRONT DOOR WINDOW GUIDE

main67439-12020×2i199210-199609

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-22020i199210-199609

main67444-22020i199210-199609

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-30020×4i199210-199609

68149BSTABILIZER, FRONT DOOR GLASS MALE

main68149-22020×2i199210-199609

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22080i199210-199609

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22070i199210-199609

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22060i199210-199609

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22060i199210-199609

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22140i199210-199410

main69801-22151i199410-199609

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22140i199210-199410

main69802-22151i199410-199609

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-22290i199210-199407

main69810-22291i199409-199410

main69810-22292i199407-199409

main69810-22341i199410-199609

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-20050i199410-199609

main69813-32030×2i199210-199410

main69814-20050i199410-199609

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-22290i199210-199407

main69820-22291i199409-199410

main69820-22292i199407-199409

main69820-22341i199410-199609

69887CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1

main69887-22040×2i199410-199602

ID=7

main69887-22041×2i199602-199609

ID=10

main90541-07024×2i199210-199410

69986APIECE, FRONT DOOR GLASS GUIDE

main69986-22060×2i199210-199609

6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-22020

9010508320

main90105-08320

9011906146

main90119-06146

9011906753

main90119-06753

9011908093

main90119-08093

9017906042

main90179-06042

9017906070

main90179-06070

9017906129

main90179-06129

9017906308

main90179-06308

9020909005

main90209-09005

9161160614

main91611-60614

29 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota MARK 2

This section contains 29 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota MARK 2. Key components include: FRONT DOOR PANEL & GLASS, STOP, FRONT DOOR WINDOW, UPPER, SUPPORT, FRONT DOOR TRIM, SNAP, FRONT DOOR WINDOW GUIDE, PLATE, FRONT DOOR WINDOW GUIDE, LOWER.
