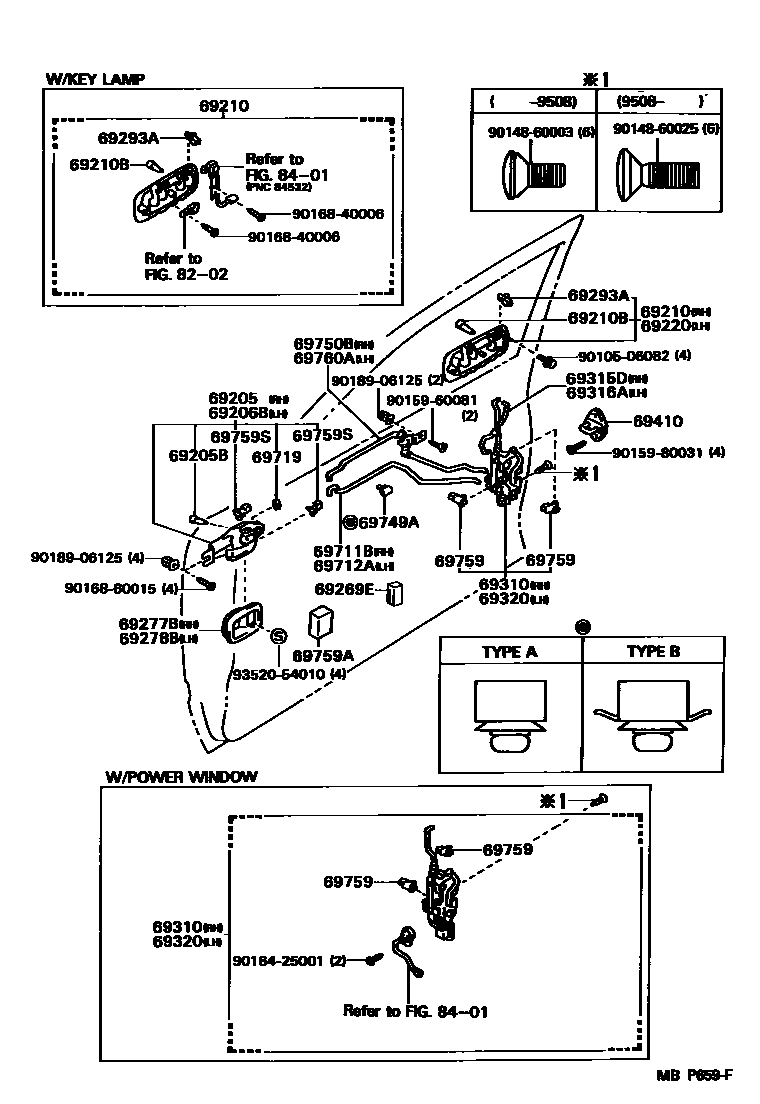

Toyota MARK 2 — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
SABLE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
SABLE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK M,24S
GRAY MICA M.,170
BEIGE M,4J1
DARK GRAYISH GREEN M,6L8
WHITE PEARL MICA,049; WHITE PEARL MICA,049 ,22K
GREENISH SILVER M.,174
DARK BLUEISH GRAY,183
BLUE M,869
BLUISH GRAY M,182
DARK MAUVE MICA,3K1
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK M,24S
GRAY MICA M.,170
BEIGE M,4J1
DARK GRAYISH GREEN M,6L8
WHITE PEARL MICA,049; WHITE PEARL MICA,049 ,22K
GREENISH SILVER M.,174
BLUE M,869
BLUISH GRAY M,182
DARK MAUVE MICA,3K1
69269ESEAL, FRONT DOOR INSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
SABLE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
SABLE,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
main69030-22301iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG); LX80,YX80..GL..(DSL,LPG)199008-199302
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69719CUSHION, DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
NATURAL
GREEN
GRAY
69759ASILENCER, SEPARATION DOOR LOCK LINK
69759SSNAP, FRONT DOOR INSIDE HANDLE
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9010506082
main90105-06082
9014860003
main90148-60003
9014860025
main90148-60025
9015960081
main90159-60081
9015980031
main90159-80031
9016425001
main90164-25001
9016840006
main90168-40006
9016860015
main90168-60015
9018906125
main90189-06125
9352054010
main93520-54010
36 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota MARK 2
This section contains 37 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota MARK 2. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
