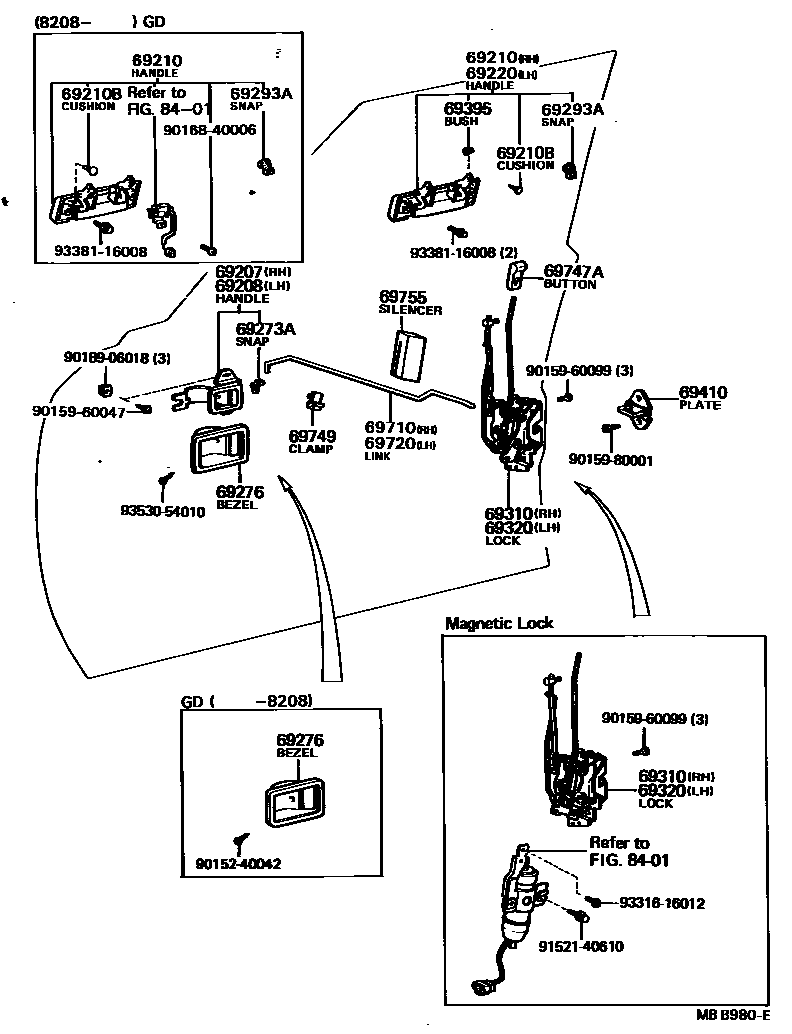

Toyota MARK 2 — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
MAGNET LOCK
*EXT,MAGNET LOCK; MAGNET LOCK
main69310-22140iGX6#,LX6#,MX60,61,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GL,GR,GT,LE,LGT,STD)198009-198407
69320LOCK ASSY, FRONT DOOR, LH
MAGNET LOCK
*EXT,MAGNET LOCK; MAGNET LOCK
main69320-22130iGX6#,LX6#,MX60,61,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GL,GR,GT,LE,LGT,STD)198009-198407
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
8401SWITCH & RELAY & COMPUTER
9015240042
main90152-40042
9015960047
main90159-60047
9015960099
main90159-60099
9015980001
main90159-80001
9016840006
main90168-40006
9018906018
main90189-06018
9152140610
main91521-40610
9331616012
main93316-16012
9338116008
main93381-16008
9353054010
main93530-54010
28 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota MARK 2
This section contains 28 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota MARK 2. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
