Toyota MARK 2 — FRONT CLEARANCE LAMP

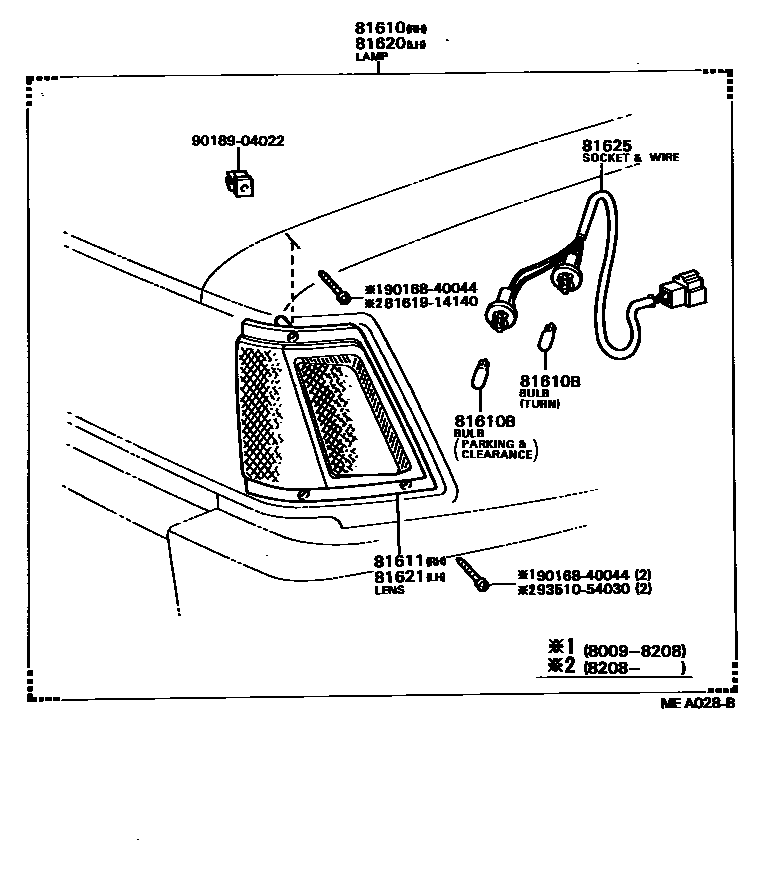

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-29225i198009-198208

main81610-29226i198208-198407

main81610-29315i198208-198407

main81610-29335i198208-198407

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×2i198009-198208

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22070i198009-198208

main81611-22071i198208-198407

main81611-22100i198208-198407

main81611-95800i198208-198407

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-29215i198009-198208

main81620-29216i198208-198407

main81620-29305i198208-198407

main81620-29325i198208-198407

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22070i198009-198208

main81621-22071i198208-198407

main81621-22100i198208-198407

main81621-95800i198208-198407

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-22070×2i198009-198208

main81615-22090×2i198208-198407

main81615-22100×2i198208-198407

main81615-95800×2i198208-198407

8161914140

main81619-14140

9016840044

main90168-40044

9018904022

main90189-04022

9351054030

main93510-54030

10 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota MARK 2

This section contains 11 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota MARK 2. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
