Toyota MARK 2 — FOG LAMP

81210LAMP ASSY, FOG

main81210-22020i198608-198808

main81210-22040i198608-198808

main81220-22010i198608-198808

main81220-22030i198608-198808

81210BBULB, FOG LAMP

main90981-13031×2i198608-198808

81211CLAMP UNIT, FOG LAMP, RH

main81211-22020i198608-198808

main81211-22040i198608-198808

81212CCOVER, FOG LAMP

main90075-99002×2i198608-198808

81221CLAMP UNIT, FOG LAMP, LH

main81221-22010i198608-198808

main81221-22030i198608-198808

81229BRACKET, FOG LAMP

main81219-22020i198608-198808

main81229-22010i198608-198808

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9356715016

main93567-15016

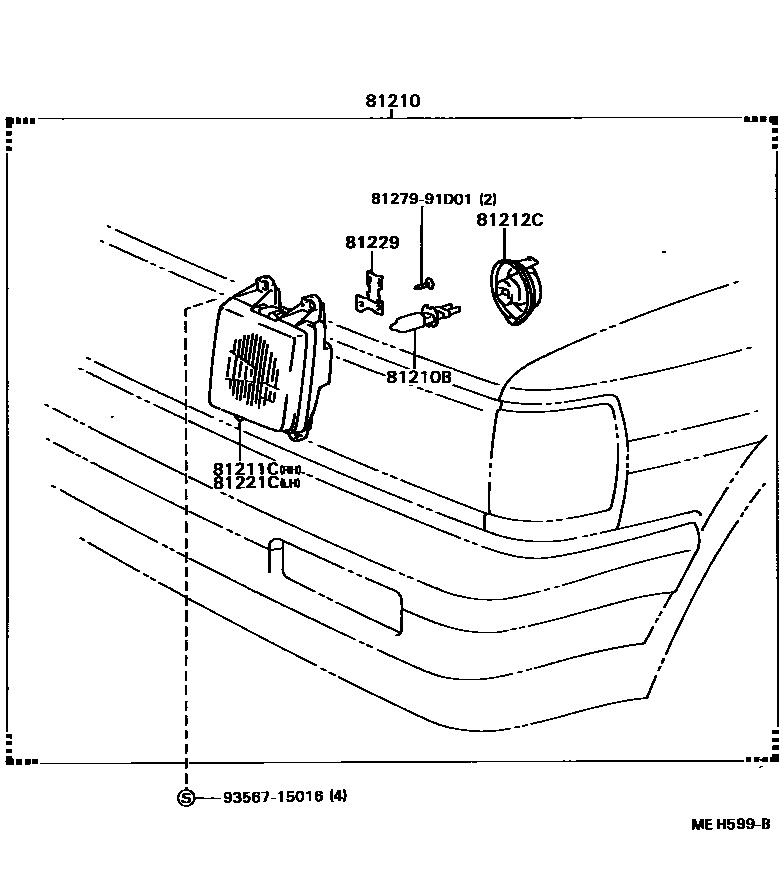

8 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota MARK 2

This section contains 8 genuine Toyota parts for the FOG LAMP system of the Toyota MARK 2. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, LAMP UNIT, FOG LAMP, LH.
