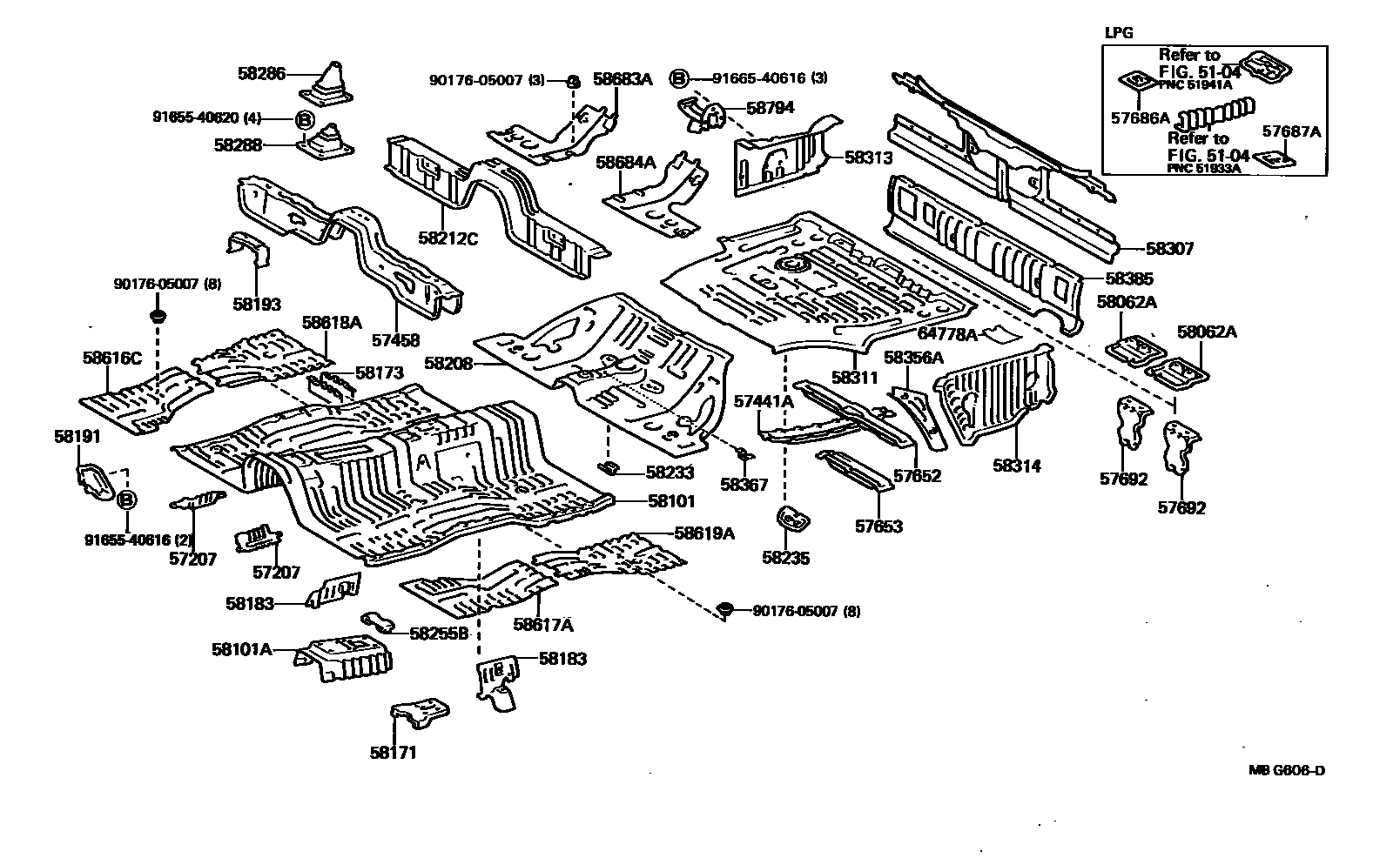

Toyota MARK 2 — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

5104

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-22040iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

main57208-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

57441AMEMBER, REAR FLOOR CENTER, NO.1

main57441-22010iGX71,LX70,MX71,SX70,YX70,72198408-198808

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198608

main57408-22031iGX7#,LX7#,SX70,YX7#198608-198808

57652CROSSMEMBER, REAR FLOOR, NO.2

main57653-22070iGX71,LX70,MX71,SX70,YX70,72198408-198808

57653MEMBER, REAR FLOOR CROSS, NO.3

main57654-22030iGX71,LX70,MX71,SX70,YX70,72198408-198808

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57063-22020iYX70,72198408-198808

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57064-22020iYX70,72198408-198808

57692BRACKET, FUEL TANK MOUNTING, REAR CENTER

main57692-22010×2iGX71,LX70,MX71,SX70198408-198808

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-22010×2iGX71,LX70,MX71,SX70198408-198808

58101PAN SUB-ASSY, FRONT FLOOR

main58111-22130iGX7#,LX7#,SX70,YX7#..3FC,5F198408-198803

main58111-22131iSX70..4FC..GL198803-198808

*30

sub58111-43020

main58111-22140iGX7#,LX70,MX71,SX70..4FC198408-198803

main58111-22141iGX7#,LX70,SX70..4FC198803-198808

58101ACOVER, TRANSMISSION AUXILIARY

main58260-22010iLX70,SX70,YX7#..ATM198408-198808

main58261-22190iLX7#..5F198408-198808

main58261-22200iSX70,YX7#..5F198408-198808

58171REINFORCEMENT, PARKING BRAKE BASE

main58029-22030iGX7#,LX70,MX71,SX70..4FC198408-198808

main58171-22050iGX7#,LX7#,SX70,YX7#..3FC,5F198408-198808

58173DEFLECTOR, FRONT FLOOR STONE

main58173-22040iGX7#,LX7#,MX71,SX70,YX7#198408-198803

RH

main58173-22041iGX7#,LX7#,SX70,YX7#198803-198808

RH

main58174-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198803

LH

main58174-22021iGX7#,LX7#,SX70,YX7#198803-198808

LH

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

main58184-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

58191FOOTREST, FRONT FLOOR

main58191-22020iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198408-198608

main58191-22021iGX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198608-198808

main58192-22040iLX70,SX70,YX72..KYO198608-198808

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

58208PAN, CENTER FLOOR

main58211-22030iGX71,LX70,MX71,SX70,YX70,72198408-198808

main58211-23010iGX70,LX76,YX76198411-198808

58212CPAN, CENTER FLOOR, FRONT

main58212-22050iGX7#,LX7#,MX71,SX70,YX7#198408-198808

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-22020iGX70,LX7#,SX70,YX7#198608-198808

58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING

main58205-91601iGX70,LX76,YX76198411-198808

main58235-22020iLX70,SX70,YX70,72198408-198808

58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1

main58264-22040iGX7#,LX7#,MX71,SX70,YX7#198408-198808

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22070iGX7#,LX7#,SX70,YX7#..5F198408-198808

sub58280-22071

58288SEAL, SHIFT LEVER BOOT

main58288-22030iGX7#,LX7#,SX70,YX7#..5F198408-198808

sub58288-22031

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22410iGX71,LX70,MX71,SX70,YX70..SED198408-198608

main58307-22411iGX71,LX70,SX70,YX72..SED198608-198808

main58307-22480iGX71,MX71,SX70..HT198408-198808

main58307-23020iGX70,LX76,YX76198411-198808

58311PAN, REAR FLOOR

main58311-22100iGX71,LX70,MX71,SX70198408-198808

main58311-22110iYX70,72198408-198808

main58311-23010iGX70,LX76,YX76198411-198808

58313PANEL, REAR FLOOR SIDE, RH

main58305-22010iGX71,LX70,MX71,SX70198408-198601

main58305-22020iYX70198408-198601

main58313-23020iGX70,LX76,YX76198411-198808

58314PANEL, REAR FLOOR SIDE, LH

main58314-22080iGX71,LX70,MX71,SX70198408-198506

main58314-22090iYX70198408-198506

main58314-23020iGX70,LX76,YX76198411-198808

58356AREINFORCEMENT, FLOOR SIDE PLATE, LH

main58356-22020iGX71,LX70,MX71,SX70,YX70,72198408-198808

58367BRACKET, FUEL TUBE CLAMP

main58266-22040iGX71,LX70,MX71,SX70,YX70,72198408-198808

58385PANEL, REAR VALANCE

main58381-22040iGX71,LX70,MX71,SX70,YX70,72198408-198808

58616CPANEL, FRONT FLOOR SILENCER, NO.1

main58616-22060iGX7#,LX7#,MX71,SX70,YX70,76198408-198808

58617APANEL, FRONT FLOOR SILENCER, NO.2

main58617-22070iGX7#,LX7#,MX71,SX70,YX70,76198408-198808

58618APANEL, FRONT FLOOR SILENCER, NO.3

main58618-22080iGX71..TWC,TWT198408-198703

58619APANEL, FRONT FLOOR SILENCER, NO.4

main58619-22040iGX71..TWC,TWT198408-198703

58683APANEL, CENTER FLOOR SILENCER, RH

main58683-22010iGX71,LX70,MX71,SX70,YX70,72198408-198808

58684APANEL, CENTER FLOOR SILENCER, LH

main58684-22010iGX71,LX70,MX71,SX70,YX70,72198408-198808

58794CARRIER, JACK

main58791-12050iGX71,LX70,MX71,SX70,YX70,72198408-198808

64778APROTECTOR, SPARE WHEEL

main64778-22010iGX71,LX70,MX71,SX70198408-198808

9017605007

main90176-05007

9165540616

main91655-40616

9165540620

main91655-40620

9166540616

main91665-40616

43 parts on this diagram · 4 diagrams in section
