Toyota MARK 2 — DOOR MOTOR & DOOR SOLENOID

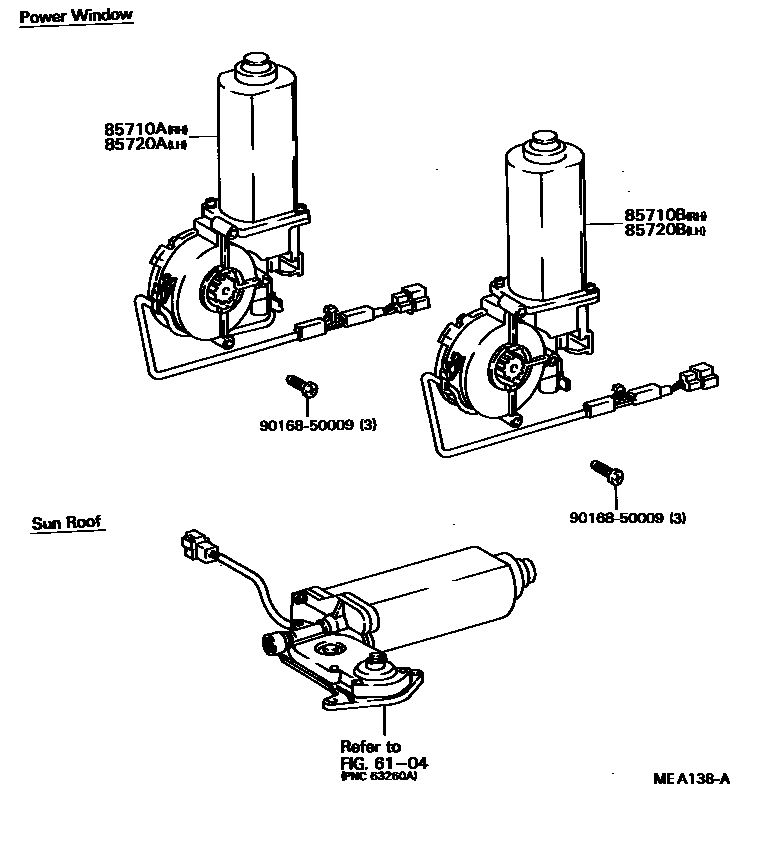

Parts diagram
6104ROOF PANEL & BACK WINDOW GLASS
→ Go to FIG 61-04
85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
main85720-22060i198009-198011
EXTRA INTERIOR
main85720-22061i198011-198208
85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
main85720-22060i198009-198011
EXTRA INTERIOR
main85720-22061i198011-198208
85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
main85710-22090i198009-198011
EXTRA INTERIOR
main85710-22091i198011-198208
85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
main85710-22090i198009-198011
EXTRA INTERIOR
main85710-22091i198011-198208
9016850009
main90168-50009

6 parts on this diagram · 1 diagram in section

DOOR MOTOR & DOOR SOLENOID for Toyota MARK 2

This section contains 6 genuine Toyota parts for the DOOR MOTOR & DOOR SOLENOID system of the Toyota MARK 2. Key components include: ROOF PANEL & BACK WINDOW GLASS, MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH, MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH, MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH, MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH.
