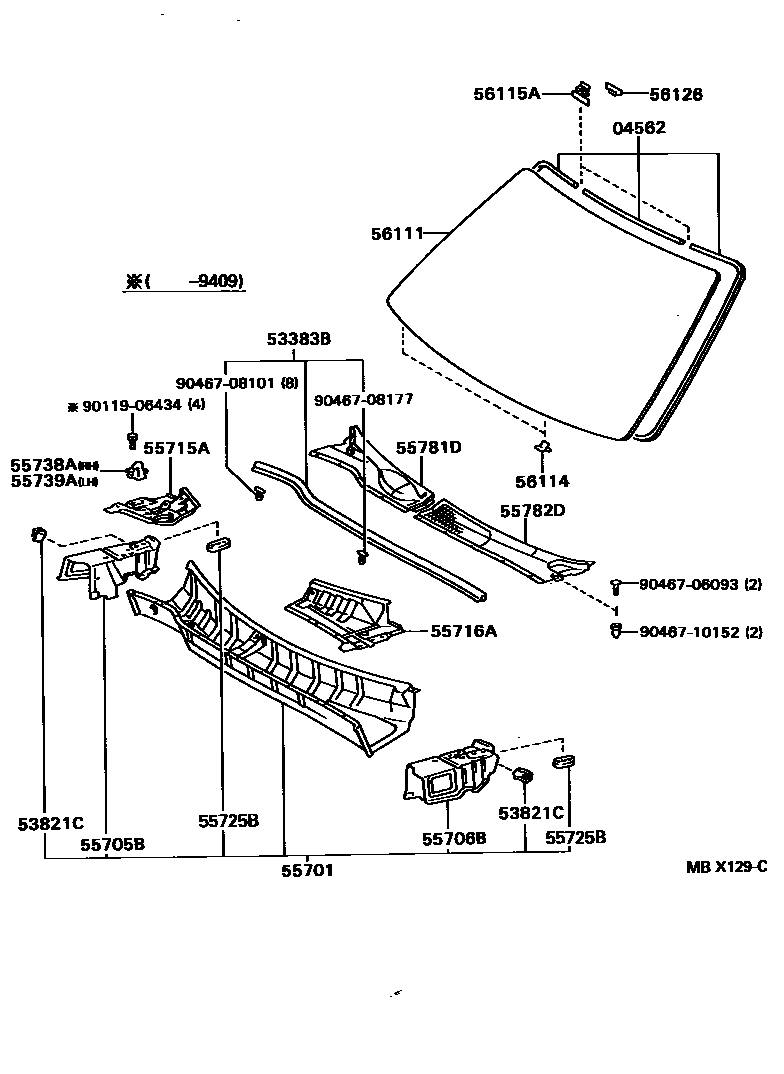

Toyota MARK 2 — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-22020i199210-199609

53383BSEAL, HOOD TO COWL TOP

main53383-22080i199210-199609

53821CBRACKET, FRONT FENDER, REAR

main53821-16010i199210-199409

55701PANEL SUB-ASSY, COWL

main55700-22840i199210-199609

main55700-2A080i199210-199609

main55700-2A090i199210-199609

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-22030i199210-199609

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-22020i199210-199609

55715ABRACE, COWL TOP TO APRON, RH

main55715-22090i199210-199609

55716ABRACE, COWL TOP TO APRON, LH

main55716-22080i199210-199609

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010i199210-199409

55738ASTOPPER, HOOD, RH

main55738-22050i199210-199609

55739ASTOPPER, HOOD, LH

main55739-22040i199210-199609

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22220i199210-199609

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22120i199210-199609

56111GLASS, WINDSHIELD

main56111-22780i199210-199609

main56111-22790i199210-199609

main56111-22800i199210-199609

main56111-22810i199210-199512

main56111-22811i199512-199609

main56111-22820i199210-199512

main56111-22821i199512-199609

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2i199210-199609

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14030×2i199210-199609

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-22030×2i199210-199409

9011906434

main90119-06434

9046706093

main90467-06093

9046708101

main90467-08101

9046708177

main90467-08177

9046710152

main90467-10152

22 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota MARK 2

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota MARK 2. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, BRACKET, FRONT FENDER, REAR, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH.
