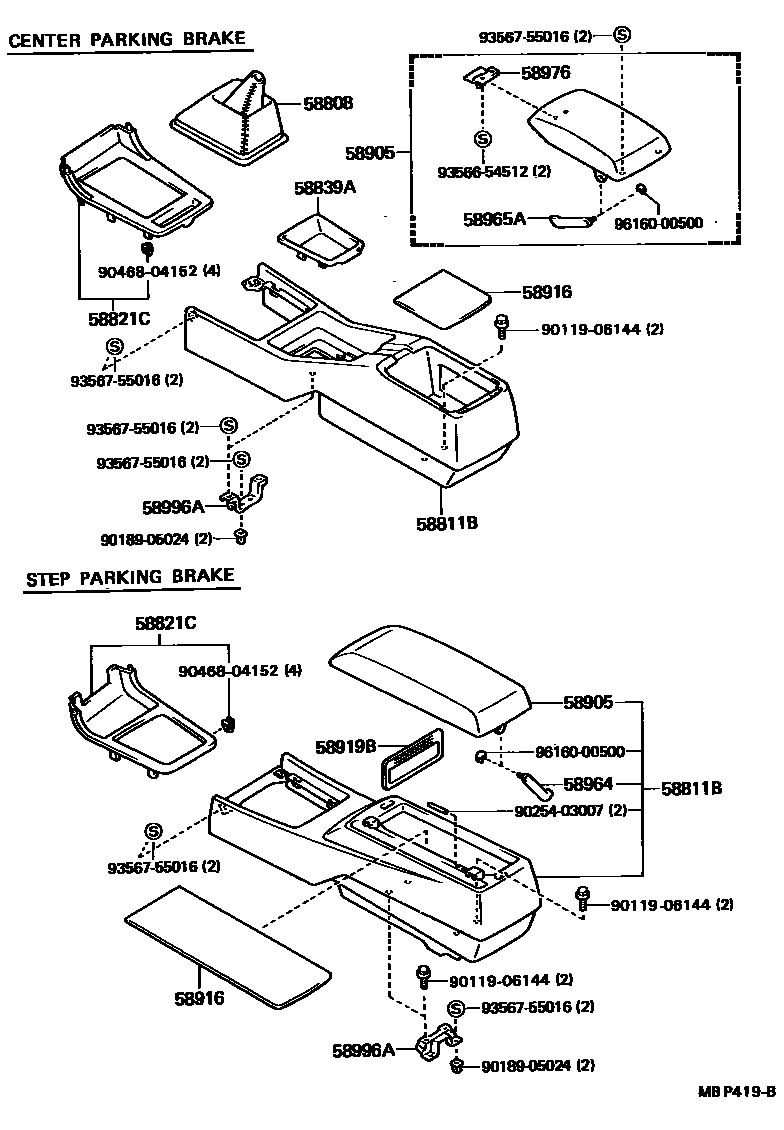

Toyota MARK 2 — CONSOLE BOX & BRACKET

0001 1 0002 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22090-02iGX81..5F198808-199302

NEW MAROON,TRIM3#

main58808-22090-03iGX81..5F199008-199302

MEDIUM GRAY,TRIM1#

main58808-22090-04iGX81..5F198808-199008

DARK BLUE,TRIM8#

main58808-22090-06iGX81..5F198808-199302

SABLE,TRIM4#

main58808-22100-02iLX80,SX80..5F..GR;LX80,YX80..5F..GL..(DSL,LPG)198908-199302

NEW MAROON,TRIM3#

main58808-22100-03iLX80,SX80,YX80..5F199008-199512

MEDIUM GRAY,TRIM1#

main58808-22100-04iLX80,SX80,YX80..5F198808-199008

DARK BLUE,TRIM8#

main58808-22100-06iLX80,SX80,YX80..5F..(GL,GR)198808-199302

SABLE,TRIM4#

58811BBOX, CONSOLE

main58801-22210-02iLX80,SX80..5F..GR;GX81,LX80,YX80..(3FC,5F)..(GD,GL,GT,LG)..(DSL,HTWC,LPG,TWC,TWT)198908-199302

NEW MAROON,TRIM3#

main58801-22210-03iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO199008-199512

MEDIUM GRAY,TRIM1#

main58801-22210-04iSX80..5F..(GL,GR);GX81,LX80,YX80..3FC,5F;LX80,SX80..(KYO,STD)..(CI,TD)198808-199008

DARK BLUE,TRIM8#

main58801-22210-06iGX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,GT,LG)198808-199302

SABLE,TRIM4#

main58801-22220-02iGX81,LX80,SX80..4FC..(GD,GR,GT,LG)..(CI,HTWC,TD,TWT)198808-199008

NEW MAROON,TRIM3#

main58801-22220-03iGX81,JZX81,LX80,SX80..4FC..(GL,GR,GT,LG)199008-199302

MEDIUM GRAY,TRIM1#

main58801-22220-04iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)..(CI,HTWC,TD,TWT)198808-199008

DARK BLUE,TRIM8#

main58801-22220-06iJZX81,SX80..4FC..(GL,GR,GT);GX81,LX80..SED..4FC..(GL,GR,LG)199008-199111

SABLE,TRIM4#

main58801-22240-02iGX81..4FC..TWC198808-199008

NEW MAROON,TRIM3#

main58801-22240-04iGX81..4FC..TWC198808-199008

DARK BLUE,TRIM8#

main58801-22240-06iGX81..4FC..TWC198808-198908

SABLE,TRIM4#

main58801-22240-16iGX81..4FC..TWC198908-199008

SABLE,TRIM4#

main58810-22410-02iGX81,JZX81,MX83..GDG198808-199302

NEW MAROON,TRIM3#

main58810-22410-03iGX81,JZX81..4FC..GD..TWC199008-199302

MEDIUM GRAY,TRIM1#

main58810-22410-04iGX81,MX83..GDG198808-199008

DARK BLUE,TRIM8#

main58810-22410-06iGX81,JZX81..4FC..GD..TWC199008-199302

SABLE,SABLE,TRIM4#

main58810-22420-02iLX80,SX80..4FC..GR199008-199302

main58810-22420-03iLX80,SX80..4FC..GR199008-199302

main58810-22420-06iGX81,JZX81..4FC..GD199008-199302

58821CPANEL, CONSOLE, UPPER

main58821-22110iGX81,JZX81,MX83..GD,GDG,GT198808-199512

main58821-22130iLX80,SX80,YX80..5F198808-199512

main58821-22150iGX81..LG;LX80,SX80,YX80..ATM198808-199512

58839ACOVER, CONSOLE BOX HOLE

main58839-22020-02iLX80,SX80..5F..GR;GX81,LX80,YX80..(3FC,5F)..(GD,GL,GT,LG)..(DSL,HTWC,LPG,TWC,TWT)198908-199302

NEW MAROON,TRIM3#

main58839-22020-03iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO199008-199512

MEDIUM GRAY,TRIM1#

main58839-22020-04iSX80..5F..(GL,GR);GX81,LX80,YX80..3FC,5F;LX80,SX80..(KYO,STD)..(CI,TD)198808-199008

DARK BLUE,TRIM8#

main58839-22020-06iGX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,GT,LG)198808-199302

SABLE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22150-02iGX81..5F..LG199008-199302

NEW MAROON,TRIM3#

main58905-22150-03iYX80..GL;GX81,LX80,SX80..5F..(GL,GR,LG)199008-199512

MEDIUM GRAY,TRIM1#

main58905-22150-04iGX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,GT,LG)..(CI,DSL,HTWC,LPG,TD,TWT)198808-199008

DARK BLUE,TRIM8#

main58905-22150-06iGX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,GT,LG)..(CI,DSL,HTWC,LPG,TD,TWT)198808-199008

SABLE,TRIM4#

main58905-22160-02iGX81..5F..TWC198808-199008

NEW MAROON,TRIM3#

main58905-22160-04iGX81..5F..TWC198808-199008

DARK BLUE,TRIM8#

main58905-22160-06iGX81..5F..TWC198808-198908

LIGHT SABLE,TRIM4#

main58905-22160-16iGX81..5F..TWC198908-199008

SABLE,TRIM4#

main58905-22170-02iGX81,LX80,SX80..4FC..(GD,GR,GT,LG)..(CI,HTWC,TD,TWT)198808-199008

NEW MAROON,TRIM3#

main58905-22170-03iGX81,JZX81,LX80,SX80..4FC..(GL,GR,GT,LG)199008-199302

MEDIUM GRAY,TRIM1#

main58905-22170-04iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)..(CI,HTWC,TD,TWT)198808-199008

DARK BLUE,TRIM8#

main58905-22170-06iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)..(CI,HTWC,TD,TWT)198808-199008

SABLE,TRIM4#

main58905-22180-02iGX81..4FC..TWC198808-199008

NEW MAROON,TRIM3#

main58905-22180-04iGX81..4FC..TWC198808-199008

DARK BLUE,TRIM8#

main58905-22180-06iGX81..4FC..TWC198808-198908

LIGHT SABLE,TRIM4#

main58905-22180-16iGX81..4FC..TWC198908-199008

SABLE,TRIM4#

main58905-22200-02iYX80..GL198908-199302

main58905-22200-03iLX80,SX80,YX80..KYO,STD199008-199512

MEDIUM GRAY,TRIM1#

main58905-22200-04iLX80,SX80,YX80..KYO,STD198808-199008

main58905-22200-06iYX80..GL198808-199302

main58905-22230-02iGX81..5F..TWC199008-199302

NEW MAROON,TRIM3#

main58905-22230-03iGX81..5F..TWC199008-199302

MEDIUM GRAY,TRIM1#

main58905-22230-06iGX81..HT..5F..GD..HTWC199105

main58905-22240-02iLX80,SX80..5F..GR199008-199302

main58905-22240-03iLX80,SX80..5F..GR199008-199302

MEDIUM GRAY,TRIM1#

main58905-22240-06iLX80,SX80..5F..GR199008-199302

58916MAT, BOX BOTTOM

main58916-22030-02iLX80,SX80..5F..GR;GX81,LX80,YX80..(3FC,5F)..(GD,GL,GT,LG)..(DSL,HTWC,LPG,TWC,TWT)198908-199302

NEW MAROON,TRIM3#

main58916-22030-03iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO199008-199512

MEDIUM GRAY,TRIM1#

main58916-22030-04iSX80..5F..(GL,GR);GX81,LX80,YX80..3FC,5F;LX80,SX80..(KYO,STD)..(CI,TD)198808-199008

DARK BLUE,TRIM8#

main58916-22030-06iGX81,LX80,SX80,YX80..(3FC,5F)..(GD,GL,GR,GT,LG)198808-199302

SABLE,TRIM4#

main58916-22040-02iGX81,JZX81,LX80,SX80..4FC..(GR,GT,LG)199008-199302

NEW MAROON,TRIM3#

main58916-22040-03iSX80..4FC..GL199302-199512

MEDIUM GRAY,TRIM1#

main58916-22040-04iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)198808-199008

DARK BLUE,TRIM8#

main58916-22040-06iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)198808-199008

SABLE,TRIM4#

main58916-22050-02iLX80,SX80..4FC..GR199008-199302

main58916-22050-03iLX80,SX80..4FC..GR199008-199302

MEDIUM GRAY,TRIM1#

main58916-22050-04iGX81,MX83..GDG198808-199008

DARK BLUE,TRIM8#

main58916-22050-06iLX80,SX80..4FC..GR199008-199302

58919BPLATE, CONSOLE BOX

main58919-22020×2iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)198808-199008

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-22030iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)198808-198901

main58964-22040iGX81,LX80,SX80..4FC..(GD,GL,GR,GT,LG)198901-199008

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-22020iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO198808-199512

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO198808-199512

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22030iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO198808-199512

main58996-22050iGX81,JZX81,LX80,MX83,SX80..4FC..(GD,GDG,GL,GR,GT,LG)198808-199512

9011906144

main90119-06144

9018905024

main90189-05024

9025403007

main90254-03007

9046804152

main90468-04152

9356654512

main93566-54512

9356755016

main93567-55016

9616000500

main96160-00500

18 parts on this diagram · 2 diagrams in section
