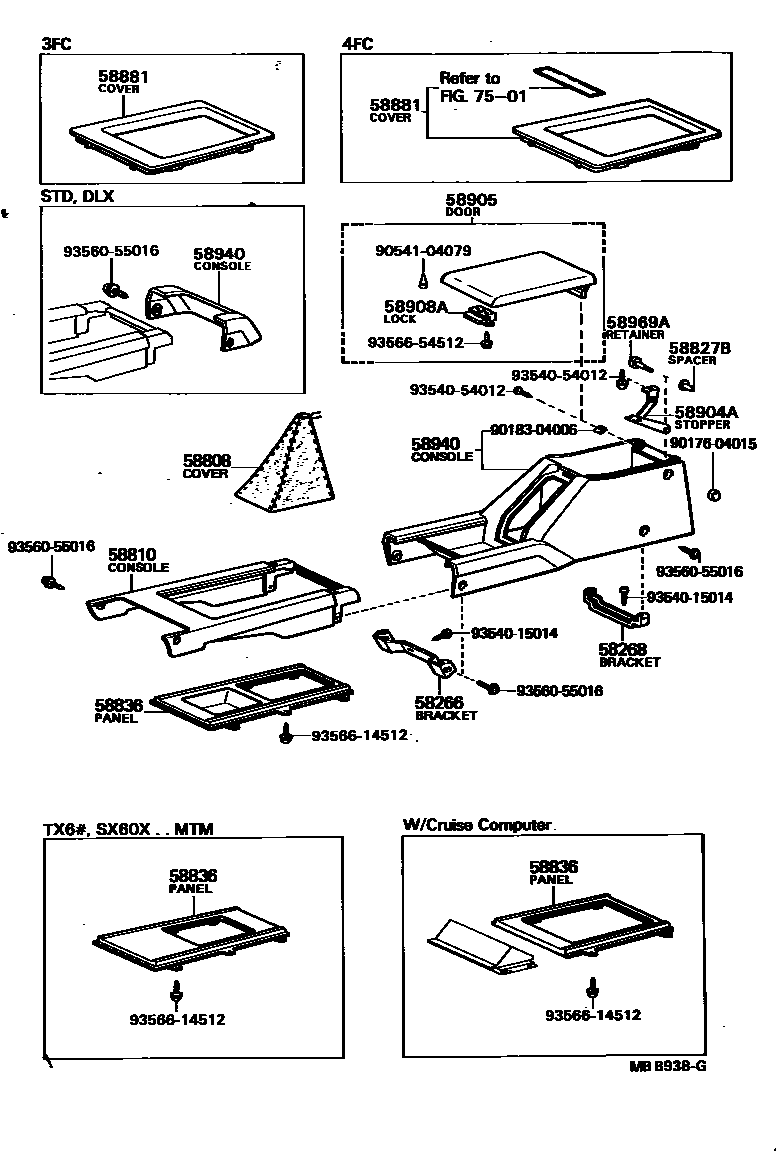

Toyota MARK 2 — CONSOLE BOX & BRACKET

0001 1 0003 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58996-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F198009-198407

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58853-22020iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22060-01iGX6#,LX6#,MX60,RX6#,TX6#..MTM198009-198208

BLACK,BLACK,TRIM2#

main58808-22060-02iGX6#,LX60,67,MX60,SX60,TX67..MTM..(DLX,GD,GL,GR,LE,LG)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58808-22060-04iGX6#,LX6#,MX60,RX6#,TX6#..MTM..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main58808-22060-06iGX6#,LX60,67,MX60,RX60,SX60,TX6#..MTM..(DLX,GD,GL,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main58808-22060-14iGX6#,LX60,67,MX60,SX60,TX67..MTM198208-198407

BLUE,BLUE,TRIM8#

58810CONSOLE ASSY

main58811-22120-01iGX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F198009-198208

BLACK,BLACK,TRIM2#

main58811-22120-02iGX6#,LX6#,MX6#,SX60,TX67..(3FC,4F,4FC,5F)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58811-22120-04iGX6#,LX6#,MX6#,RX6#,TX6#..(3FC,4F,4FC,5F)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main58811-22120-05iGX6#,MX61,63,RX6#,TX60..HT198009-198208

GREIGE,BEIGE,TRIM4#

main58811-22120-06iGX6#,LX6#,MX6#,SX60,TX67..(3FC,4F,4FC,5F)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

D-BROWN,BROWN,TRIM4#

main58811-22120-14iGX6#,LX6#,MX6#,SX60,TX67..3FC,4F,4FC,5F198208-198407

BLUE,BLUE,TRIM8#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58967-22010iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

58836PANEL, CONSOLE, UPPER FRONT

main58821-22010iGX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F198009-198208

main58821-22020iTX6#..4F198009-198208

main58821-22030iGX61,MX61,63..(4FC,5F)..GD198009-198208

W/CRUISE COMPUTER

main58821-22040iSX60..5F198208-198407

main58821-22050iSX60,TX67..ATM198208-198407

main58821-22060iTX67..4F198208-198407

main58821-22070iGX61..GD198208-198407

W/CRUISE COMPUTER

58881COVER, SHIFTING HOLE

main58841-22040iMX60,TX6#..3FC198009-198208

main58841-22050iGX6#,LX60,MX61,63,RX60..4FC198009-198208

main58841-22070iGX61..4FC198105-198208

W/2 WAY OVER DRIVE

main58841-22080iLX60,65,MX6#,SX60,TX67..ATM198208-198407

main58841-22090iGX6#..4FC..EFI198208-198407

main58841-22101iGX61..4FC..TWC198302-198407

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58904-22020iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22020-01iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main58905-22020-02iGX6#,LX60,SX60,TX67..MTM..(GD,GL,GR,LE,LG)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58905-22020-04iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main58905-22020-05iGX6#,MX61,63,RX6#,TX60..HT198009-198208

GREIGE,BEIGE,TRIM4#

main58905-22020-06iGX6#,LX60,MX61,63,RX6#,TX6#..(SED,V,WG)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

D-BROWN,BROWN,TRIM4#

main58905-22020-14iGX6#,LX60,SX60,TX67..MTM..(GD,GL,GR,LE,LG)198208-198407

BLUE,BLUE,TRIM8#

main58905-22040-02iGX6#,LX60,65,MX61,SX60,TX67..3FC,4FC198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58905-22040-06iGX6#,LX60,65,MX61,SX60,TX67..3FC,4FC198208-198407

D-BROWN,BROWN,TRIM4#

main58905-22040-14iGX6#,LX60,65,MX61,SX60,TX67..3FC,4FC198208-198407

BLUE,BLUE,TRIM8#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-22010iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

58940CONSOLE ASSY, REAR

main58901-22020-01iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main58901-22020-04iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main58901-22020-05iGX6#,MX61,63,RX6#,TX60..HT198009-198208

GREIGE,BEIGE,TRIM4#

main58901-22020-06iGX6#,LX60,MX61,63,RX6#,TX6#..(SED,V,WG)..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

D-BROWN,BROWN,TRIM4#

main58901-22070-02iGX6#,LX60,SX60,TX67..MTM..(GD,GL,GR,LE,LG)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58901-22070-06iGX6#,LX60,SX60,TX67..MTM..(GD,GL,GR,LE,LG)198208-198407

D-BROWN,BROWN,TRIM4#

main58901-22070-14iGX6#,LX60,SX60,TX67..MTM..(GD,GL,GR,LE,LG)198208-198407

BLUE,BLUE,TRIM8#

main58911-22060-02iGX6#,LX60,65,MX61,SX60,TX67..3FC,4FC198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58911-22060-06iGX6#,LX60,65,MX61,SX60,TX67..3FC,4FC198208-198407

D-BROWN,BROWN,TRIM4#

main58911-22060-14iGX6#,LX60,65,MX61,SX60,TX67..3FC,4FC198208-198407

BLUE,BLUE,TRIM8#

main58923-22010-01iLX6#,MX60,TX6#..DLX,STD198009-198208

BLACK,BLACK,TRIM2#

main58923-22010-02iLX60,67,MX60,SX60,TX67..MTM..DLX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58923-22010-04iLX60,67,MX60,SX60,TX67..MTM..(DLX,STD)198208-198407

BLUE,BLUE,TRIM8#

main58923-22010-06iLX6#,MX60,TX6#..DLX198009-198208

D-BROWN,BROWN,TRIM4#

main58923-22020-02iMX60..3FC198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main58923-22020-06iMX60..3FC198208-198407

D-BROWN,BROWN,TRIM4#

main58923-22020-14iMX60..3FC198208-198407

BLUE,BLUE,TRIM8#

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iGX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)198009-198208

7501

9017604015

main90176-04015

9018304006

main90183-04006

9054104079

main90541-04079

9354015014

main93540-15014

9354054012

main93540-54012

9356055016

main93560-55016

9356614512

main93566-14512

9356654512

main93566-54512

21 parts on this diagram · 2 diagrams in section
