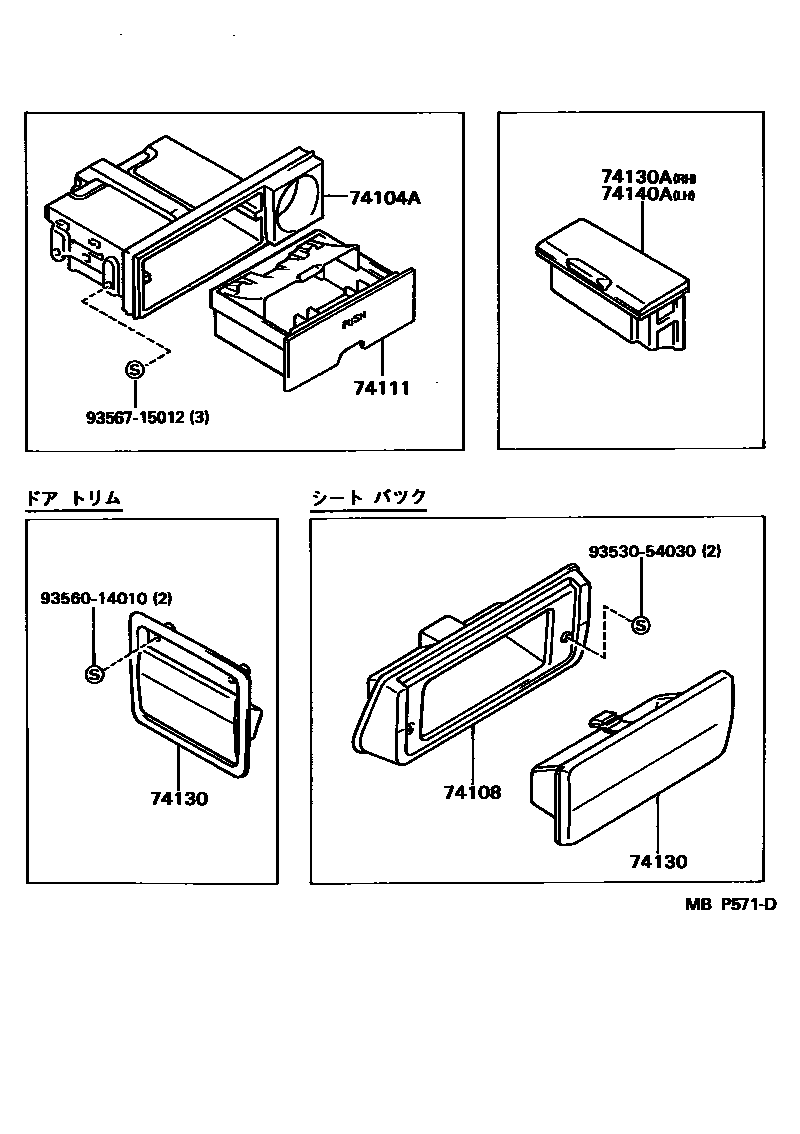

Toyota MARK 2 — ASH RECEPTACLE

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74127-22020i198808-199512

main74127-22030i198808-199512

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-20050-03i199008-199302

MEDIUM GRAY,TRIM1#

main74108-20050-16i198808-199302

SABLE,TRIM4#

main74108-20050-24i198808-199008

DARK BLUE,TRIM8#

74111BOX, FRONT ASH RECEPTACLE

main74111-22140i198808-199512

main74111-22150i198808-199512

74130RECEPTACLE ASSY, REAR ASH

main74109-30090-03i199008-199104

main74109-30090-16i198808-199104

main74109-30090-24i198808-199008

main74109-30091-E0i199104-199302

main74109-30091-S4i199104-199302

main74130-91601-02×2i199008-199302

NEW MAROON,TRIM3#

main74130-91601-03×2i199302-199512

MEDIUM GRAY,TRIM1#

main74130-91601-04×2i198808-199008

DARK BLUE,TRIM8#

main74130-91601-06×2i198808-199302

SABLE,TRIM4#

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-22110i199302-199512

main74130-22120i198808-199512

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-22010i199302-199512

main74140-22020i198808-199512

9353054030

main93530-54030

9356014010

main93560-14010

9356715012

main93567-15012

9 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota MARK 2

This section contains 9 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota MARK 2. Key components include: RETAINER SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, REAR ASH RECEPTACLE, BOX, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, RECEPTACLE ASSY, REAR ASH, RH.
