Toyota MARK 2 — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
W/*PW,MAROON,MAROON,TRIM3#
W/*PW,GRAY,COOL GRAY,TRIM1#
W/*PW,BLUE,DARK BLUE,TRIM8#
W/*PW,BEIGE,BEIGE,TRIM4#
W/*PW,BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
W/*PW,MAROON,MAROON,TRIM3#
W/*PW,GRAY,COOL GRAY,TRIM1#
W/*PW,BLUE,DARK BLUE,TRIM8#
W/*PW,BEIGE,BEIGE,TRIM4#
W/*PW,BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
74223CAP, DOOR ARMREST, RH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
74224CAP, DOOR ARMREST, LH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
74225CAP, DOOR ARMREST, REAR RH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
74226CAP, DOOR ARMREST, REAR LH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
W/*PW,MAROON,MAROON,TRIM3#
W/*PW,GRAY,COOL GRAY,TRIM1#
W/*PW,BLUE,DARK BLUE,TRIM8#
W/*PW,BEIGE,BEIGE,TRIM4#
W/*PW,BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74240ARMREST ASSY, REAR, LH
GRAY,COOL GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
W/*PW,MAROON,MAROON,TRIM3#
W/*PW,GRAY,COOL GRAY,TRIM1#
W/*PW,BLUE,DARK BLUE,TRIM8#
W/*PW,BEIGE,BEIGE,TRIM4#
W/*PW,BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
74310VISOR ASSY, RH
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
*30,BLUE,DARK BLUE,TRIM4#
BLUE,DARK BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM3#,4#
W/SUN ROOF,GRAY,GRAY,TRIM1#
W/SUN ROOF,BEIGE,BEIGE,TRIM3#,4#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
74320VISOR ASSY, LH
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
W/SUN ROOF,GRAY,GRAY,TRIM1#
W/SUN ROOF,BEIGE,BEIGE,TRIM3#,4#
74348HOLDER, VISOR
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM3#,4#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
74613PLUG, ASSIST GRIP
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM3#,4#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM3#,4#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
9015960254
main90159-60254
9016460014
main90164-60014
9018906020
main90189-06020
9018906024
main90189-06024
9018906043
main90189-06043
9046460014
main90464-60014
9046710012
main90467-10012
9353045020
main93530-45020

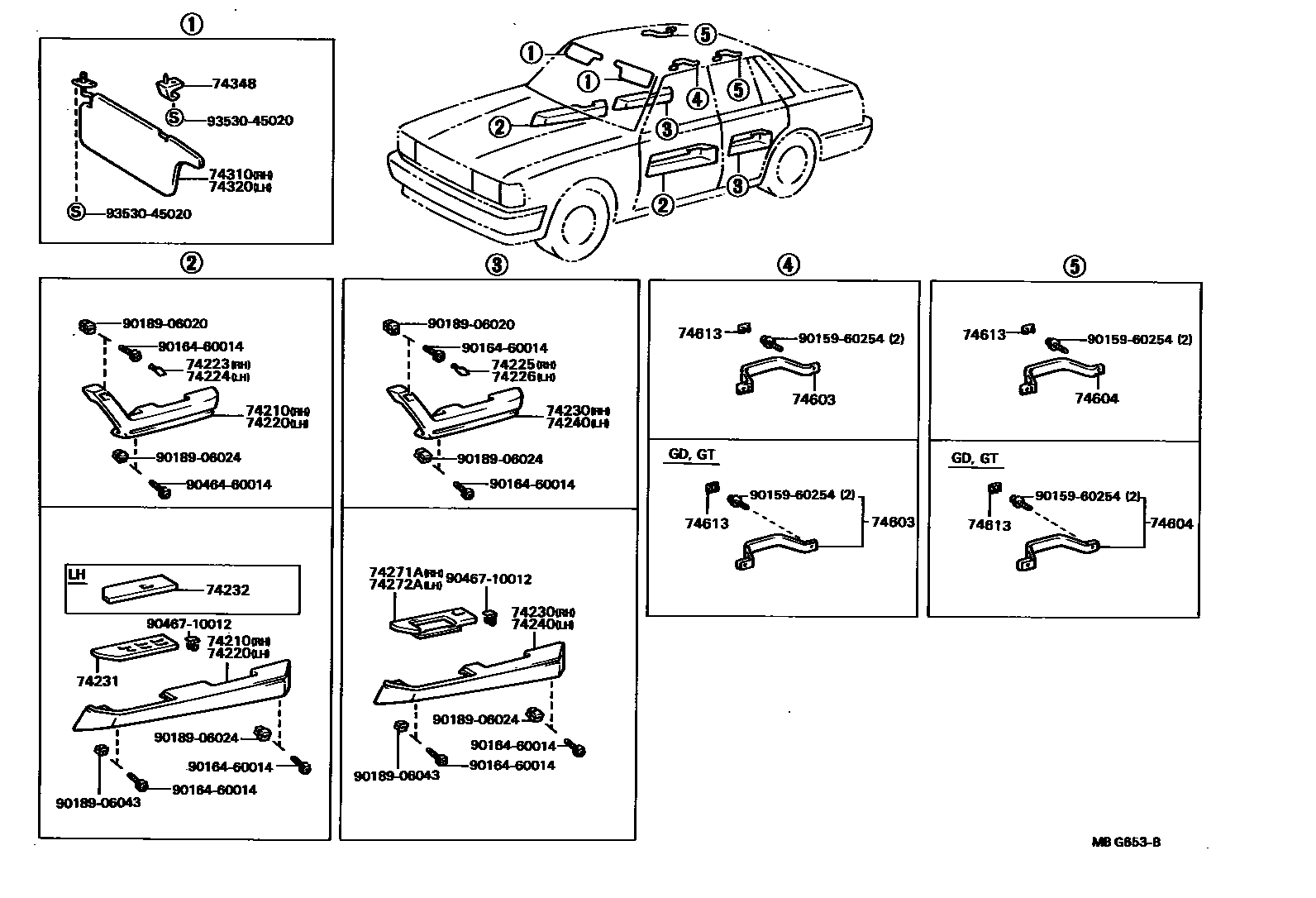

26 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota MARK 2
This section contains 26 genuine Toyota parts for the ARMREST & VISOR system of the Toyota MARK 2. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, CAP, DOOR ARMREST, REAR RH.
