Toyota MARK 2 — ARMREST & VISOR

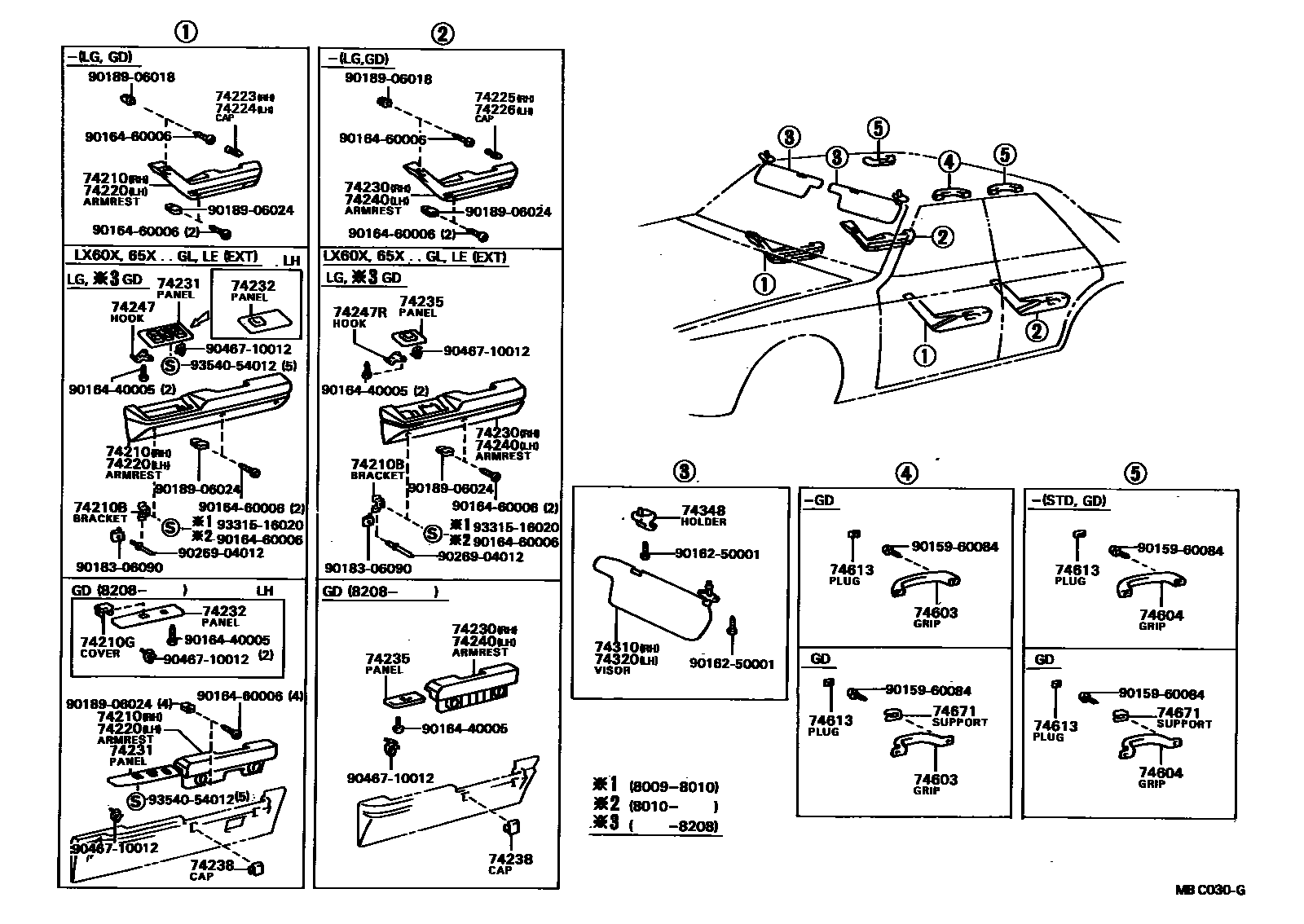

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-22070-01i198009-198208
BLACK,BLACK,TRIM2#
main74210-22070-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74210-22070-04i198009-198208
BLUE,BLUE,TRIM8#
main74210-22070-06i198009-198407
D-BROWN,BROWN,TRIM4#
main74210-22070-14i198208-198407
BLUE,BLUE,TRIM8#
main74210-22081-01i198009-198208
*EXT,BLACK,BLACK,TRIM2#; BLACK,BLACK,TRIM2#
main74210-22081-02i198208-198407
*EXT,DEEP MAROON,RED/MAROON,TRIM3#; DEEP MAROON,RED/MAROON,TRIM3#
main74210-22081-04i198009-198208
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74210-22081-06i198009-198407
*EXT,D-BROWN,BROWN,TRIM4#
main74210-22081-14i198208-198407
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74210-22090-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74210-22090-04i198208-198407
BLUE,BLUE,TRIM8#
main74210-22090-06i198208-198407
D-BROWN,BROWN,TRIM4#
74210BBRACKET, ARMREST SET
main67645-22010×4i198208-198407
74210GCOVER, SPARE SWITCH HOLE
main55539-24010-01i198208-198407
BLACK,BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-22060-01i198009-198208
BLACK,BLACK,TRIM2#
main74220-22060-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74220-22060-04i198009-198208
BLUE,BLUE,TRIM8#
main74220-22060-06i198208-198407
D-BROWN,BROWN,TRIM4#
main74220-22060-14i198208-198407
BLUE,BLUE,TRIM8#
main74220-22071-01i198009-198208
*EXT,BLACK,BLACK,TRIM2#; BLACK,BLACK,TRIM2#
main74220-22071-02i198208-198407
*EXT,DEEP MAROON,RED/MAROON,TRIM3#; DEEP MAROON,RED/MAROON,TRIM3#
main74220-22071-04i198009-198208
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74220-22071-06i198009-198407
*EXT,D-BROWN,BROWN,TRIM4#
main74220-22071-14i198208-198407
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74220-22080-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74220-22080-04i198208-198407
BLUE,BLUE,TRIM8#
main74220-22080-06i198208-198407
D-BROWN,BROWN,TRIM4#
74223CAP, DOOR ARMREST, RH
main74223-22010-01i198009-198208
BLACK,BLACK,TRIM2#
main74223-22010-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74223-22010-06i198009-198407
D-BROWN,BROWN,TRIM4#
main74223-22010-14i198009-198208
BLUE,BLUE,TRIM8#
74224CAP, DOOR ARMREST, LH
main74224-22010-01i198009-198208
BLACK,BLACK,TRIM2#
main74224-22010-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74224-22010-06i198009-198407
D-BROWN,BROWN,TRIM4#
main74224-22010-14i198208-198407
BLUE,BLUE,TRIM8#
74225CAP, DOOR ARMREST, REAR RH
main74223-22010-01i198009-198208
BLACK,BLACK,TRIM2#
main74223-22010-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74223-22010-06i198009-198407
D-BROWN,BROWN,TRIM4#
main74223-22010-14i198009-198208
BLUE,BLUE,TRIM8#
74226CAP, DOOR ARMREST, REAR LH
main74224-22010-01i198009-198208
BLACK,BLACK,TRIM2#
main74224-22010-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74224-22010-06i198009-198407
D-BROWN,BROWN,TRIM4#
main74224-22010-14i198009-198208
BLUE,BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
main74210-22070-01i198009-198208
BLACK,BLACK,TRIM2#
main74210-22070-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74210-22070-06i198009-198208
D-BROWN,BROWN,TRIM4#
main74210-22070-14i198009-198208
BLUE,BLUE,TRIM8#
main74250-22021-01i198009-198208
*EXT,BLACK,BLACK,TRIM2#; BLACK,BLACK,TRIM2#
main74250-22021-02i198208-198407
*EXT,DEEP MAROON,RED/MAROON,TRIM3#; DEEP MAROON,RED/MAROON,TRIM3#
main74250-22021-04i198009-198208
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74250-22021-06i198208-198407
D-BROWN,BROWN,TRIM4#
main74250-22021-14i198208-198407
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74250-22030-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74250-22030-04i198208-198407
BLUE,BLUE,TRIM8#
main74250-22030-06i198208-198407
D-BROWN,BROWN,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-22060i198009-198208
*EXT
main74231-22080i198208-198407
main74231-22110i198208-198407
*EXT
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-22060i198208-198407
main74232-22080i198208-198407
*EXT
main74232-30090i198009-198407
*EXT
74235PANEL, REAR ARMREST BASE, UPPER
main74271-22020i198208-198407
RH
main74271-22030i198208-198407
RH; RH,*EXT
main74271-30030i198009-198208
RH,*EXT;RH
main74272-22020i198208-198407
LH
main74272-22030i198208-198407
LH; LH,*EXT
main74272-30030i198009-198208
LH; LH,*EXT
74238CAP, DOOR ARMREST BASE
main74237-22020-02×8i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74237-22020-04×8i198208-198407
BLUE,BLUE,TRIM8#
main74237-22020-06×8i198208-198407
D-BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74220-22060-01i198009-198208
BLACK,BLACK,TRIM2#
main74220-22060-02i198208-198407
ROSE BEIGE,RED/MAROON,TRIM3#
main74220-22060-06i198208-198407
D-BROWN,BROWN,TRIM4#
main74220-22060-14i198009-198208
BLUE,BLUE,TRIM8#
main74260-22011-01i198009-198208
*EXT,BLACK,BLACK,TRIM2#; BLACK,BLACK,TRIM2#
main74260-22011-02i198208-198407
*EXT,DEEP MAROON,RED/MAROON,TRIM3#; DEEP MAROON,RED/MAROON,TRIM3#
main74260-22011-04i198009-198208
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74260-22011-06i198009-198407
*EXT,D-BROWN,BROWN,TRIM4#
main74260-22011-14i198208-198407
*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
main74260-22020-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74260-22020-04i198208-198407
BLUE,BLUE,TRIM8#
main74260-22020-06i198208-198407
D-BROWN,BROWN,TRIM4#
74247HOOK, FRONT DOOR ARMREST UPPER BASE
main74247-30010×2i198009-198208
74247RHOOK, REAR DOOR ARMREST UPPER BASE
main74247-22010×2i198009-198208
74310VISOR ASSY, RH
main74310-22140-08i198009-198208
IVORY,IVORY,TRIM2#,4#
main74310-22140-14i198009-198208
BLUE,BLUE,TRIM8#
main74310-22150-14i198009-198208
BLUE,BLUE,TRIM8#
main74310-22150-18i198009-198208
IVORY,IVORY,TRIM2#,4#
main74310-22151-08i198208-198407
IVORY,IVORY,TRIM3#,4#
main74310-22151-14i198208-198407
BLUE,BLUE,TRIM8#
main74310-22170-04i198009-198208
W/SUN ROOF,BLUE,BLUE,TRIM8#
main74310-22170-08i198110-198208
W/SUN ROOF,IVORY,IVORY,TRIM2#,4#
main74310-22171-08i198208-198407
W/SUN ROOF,IVORY,IVORY,TRIM3#,4#
main74310-22171-14i198208-198407
W/SUN ROOF,BLUE,BLUE,TRIM8#
74320VISOR ASSY, LH
main74320-22190-04i198009-198208
BLUE,BLUE,TRIM8#
main74320-22190-08i198009-198208
IVORY,IVORY,TRIM2#,4#
main74320-22190-14i198009-198407
*EXT,BLUE,BLUE,TRIM8#
main74320-22200-14i198009-198208
BLUE,BLUE,TRIM8#; W/SUN ROOF,BLUE,BLUE,TRIM8#
main74320-22200-18i198009-198208
IVORY,IVORY,TRIM2#,4#; W/SUN ROOF,IVORY,IVORY,TRIM2#,4#
main74320-22201-08i198208-198407
IVORY,IVORY,TRIM3#,4#; W/SUN ROOF,IVORY,IVORY,TRIM3#,4#
main74320-22201-14i198208-198407
BLUE,BLUE,TRIM8#; W/SUN ROOF,BLUE,BLUE,TRIM8#
main74320-22210-08i198009-198208
IVORY,IVORY,TRIM2#,4#
main74320-22210-14i198011-198407
BLUE,BLUE,TRIM8#
74348HOLDER, VISOR
main74348-12010-04×2i198009-198208
BLUE,BLUE,TRIM8#
main74348-12010-08×2i198009-198208
IVORY,IVORY,TRIM2#,4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-20030-04i198009-198208
BLUE,BLUE,TRIM8#
main74610-20030-08i198009-198208
IVORY,IVORY,TRIM2#,4#
main74610-20030-14i198208-198407
BLUE,BLUE,TRIM8#
main74610-22010-04i198009-198208
BLUE,BLUE,TRIM8#
main74610-22010-08i198009-198407
IVORY,IVORY,TRIM2#,3#,4#
main74610-22010-14i198208-198407
BLUE,BLUE,TRIM8#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-20030-08×2i198009-198208
IVORY,IVORY,TRIM2#,4#
main74610-20030-14×2i198208-198407
BLUE,BLUE,TRIM8#
main74610-22010-04×2i198009-198208
BLUE,BLUE,TRIM8#
main74610-22010-08×2i198009-198407
IVORY,IVORY,TRIM2#,3#,4#
main74610-22010-14×2i198208-198407
BLUE,BLUE,TRIM8#
74613PLUG, ASSIST GRIP
main74617-14010-08×6i198208-198407
IVORY,IVORY,TRIM3#,4#
main74617-14010-14×6i198208-198407
BLUE,BLUE,TRIM8#
main74617-30020-04×6i198009-198208
BLUE,BLUE,TRIM8#
main74617-30020-08×6i198009-198407
IVORY,IVORY,TRIM2#,3#,4#
main74617-30020-14×6i198208-198407
BLUE,BLUE,TRIM8#
74671SUPPORT, ASSIST GRIP
main74671-30010×6i198009-198407
9015960084
main90159-60084
9016250001
main90162-50001
9016440005
main90164-40005
9016460006
main90164-60006
9018306090
main90183-06090
9018906018
main90189-06018
9018906024
main90189-06024
9026904012
main90269-04012
9046710012
main90467-10012
9331516020
main93315-16020
9354054012
main93540-54012

34 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota MARK 2

This section contains 34 genuine Toyota parts for the ARMREST & VISOR system of the Toyota MARK 2. Key components include: ARMREST ASSY, FRONT, RH, BRACKET, ARMREST SET, COVER, SPARE SWITCH HOLE, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH.
