Toyota MARK 2 — ANTENNA

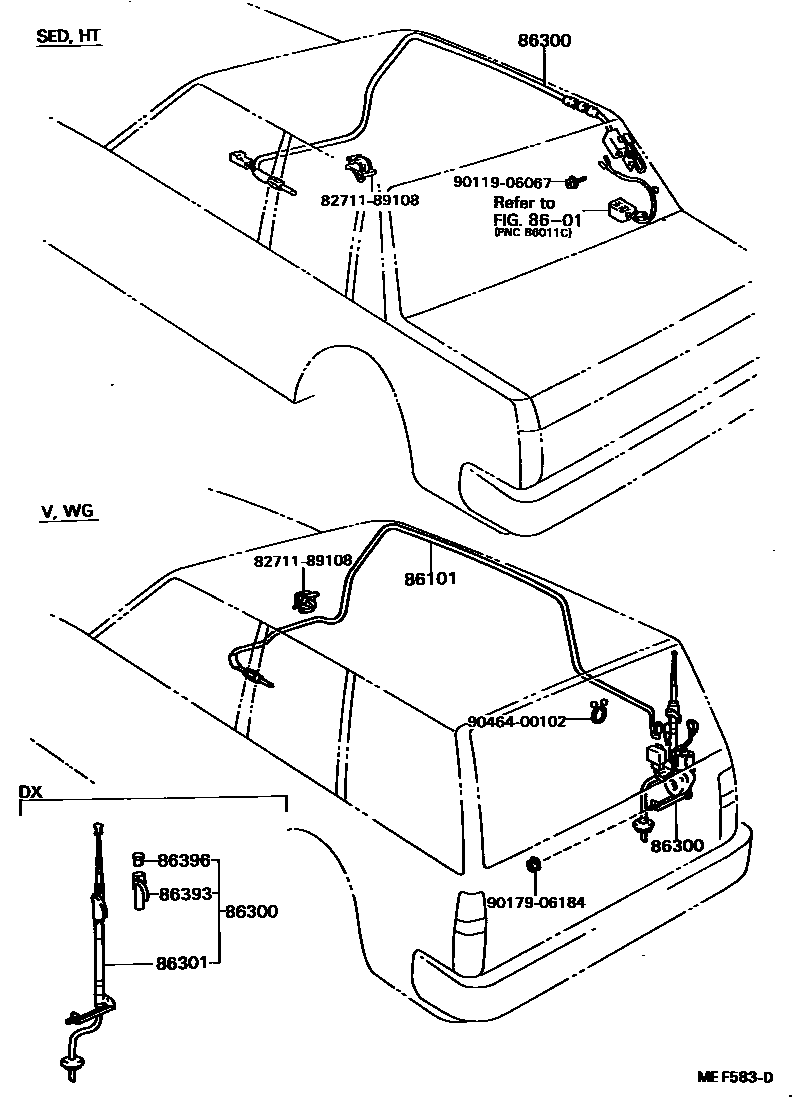

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86101CORD SUB-ASSY, ANTENNA

main86101-22180i198411-198808

86300ANTENNA ASSY, W/HOLDER

main86300-22190i198608-198808

main86300-22230i198408-198608

main86300-22240i198411-198808

main86300-22280i198411-198808

main86300-22290i198608-198808

main86300-22300i198608-198808

PLANT NO.A21-A26

main86300-22310i198608-198808

PLANT NO.M21,M22

86301POLE SUB-ASSY, ANTENNA

main86309-22080i198411-198808

main86353-22280i198411-198504

86393ORNAMENT, ANTENNA

main86392-22020i198411-198808

86396NUT, ANTENNA

main86396-16020i198411-198808

8271189108WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89108

9011906067

main90119-06067

9017906184

main90179-06184

9046400102

main90464-00102

10 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota MARK 2

This section contains 14 genuine Toyota parts for the ANTENNA system of the Toyota MARK 2. Key components include: RELAY, MOTOR ANTENNA CONTROL, RADIO RECEIVER & AMPLIFIER & CONDENSER, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA.
