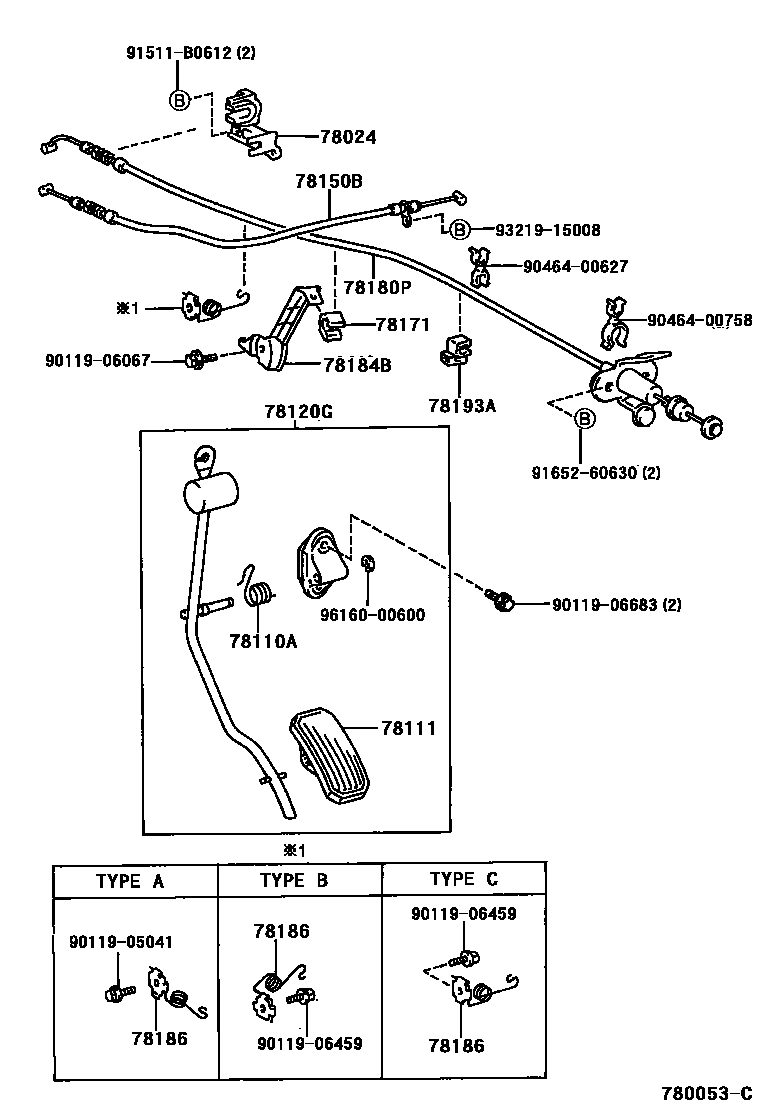

Toyota MARK 2 WG — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH
78180PCABLE ASSY, ACCELERATOR CONTROL
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
9011905041
main90119-05041
9011906067
main90119-06067
9011906459
main90119-06459
9011906683
main90119-06683
9046400627
main90464-00627
9046400758
main90464-00758
91511B0612
main91511-B0612
9165260630
main91652-60630
9321915008
main93219-15008
9616000600
main96160-00600
20 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota MARK 2 WG
This section contains 20 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota MARK 2 WG. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE.
