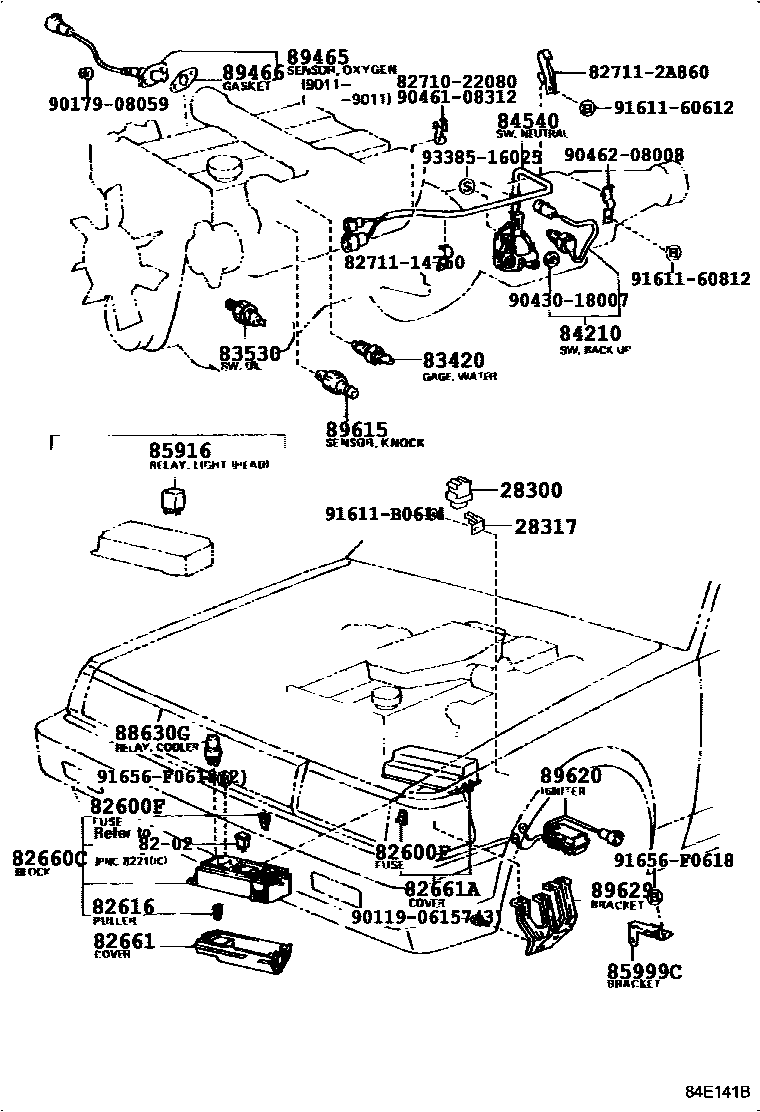

Toyota MARK 2 V,WG — SWITCH & RELAY & COMPUTER
28300RELAY ASSY, STARTER
28317BRACKET, STARTER RELAY
8202WIRING & CLAMP
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82660CBLOCK ASSY, RELAY
82661COVER, RELAY BLOCK, NO.1
82661ACOVER, RELAY BLOCK, NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85916RELAY, LIGHT CONTROL
MARUKO,TAIL LAMP
*ND,TAIL LAMP
HEADLAMP
85999CBRACKET, RELAY, NO.3
88630GRELAY ASSY, COOLER
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
89615SENSOR, KNOCK CONTROL
89620IGNITER ASSY
8271022080HARNESS ASSY, OIL HEATER
main82710-22080
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
827112A860WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A860
9011906157
main90119-06157
9017908059
main90179-08059
9043018007
main90430-18007
9046108312
main90461-08312
9046208008
main90462-08008
9161160612
main91611-60612
9161160812
main91611-60812
91611B0614
main91611-B0614
91656F0618
main91656-F0618
9338516025
main93385-16025
33 parts on this diagram · 9 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota MARK 2 V,WG
This section contains 136 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota MARK 2 V,WG. Key components include: RELAY ASSY, STARTER, BRACKET, STARTER RELAY, TIMER, PREHEATING, BRACKET, PREHEATING TIMER, NO.1, RELAY ASSY, INTAKE HEATER OR GLOW PLUG.
