Toyota MARK 2 V,WG — PARTIAL ENGINE ASSEMBLY

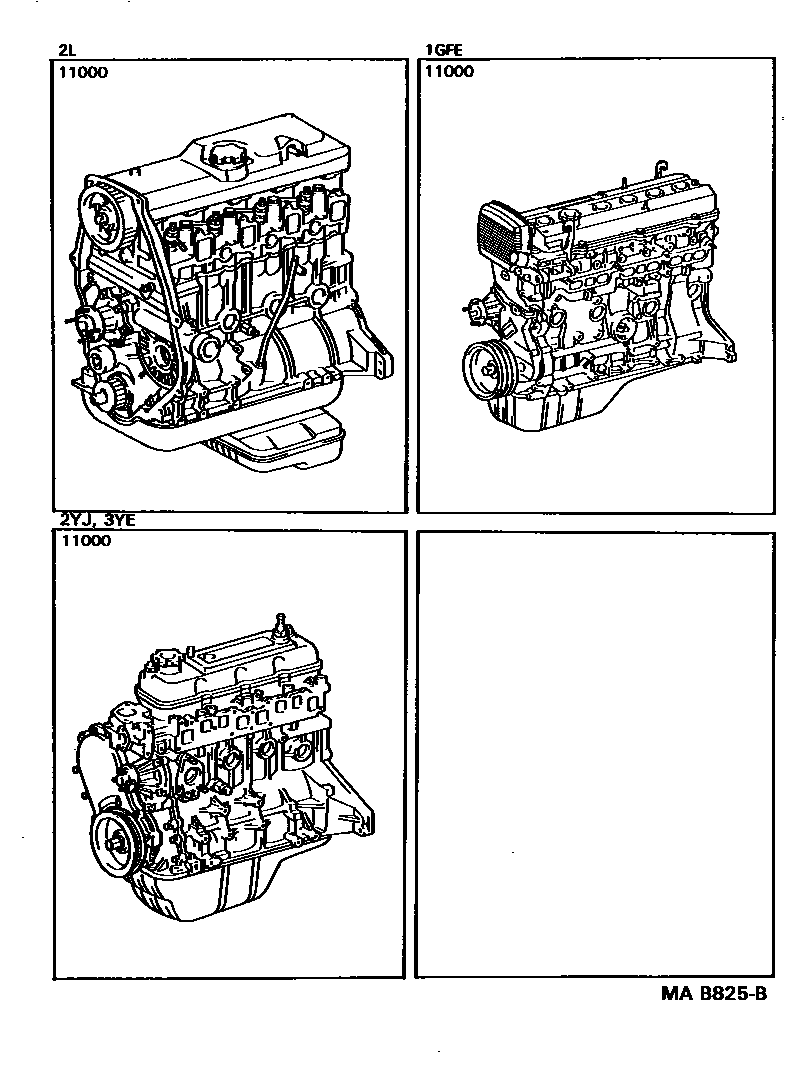

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-54710i198812-199409
sub19000-59015
main19000-70180i198810-199005
sub17303-70051
main19000-70181i199005-199105
main19000-70182i199105-199704
sub19000-70183
main19000-72320i198812-199302
main19000-73800i199302-199308
main19000-73801i199308-199512
main19000-73802i199512-199704

1 parts on this diagram · 1 diagram in section
