Toyota MARK 2/MARK 2 BLIT — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
9011906913
main90119-06913

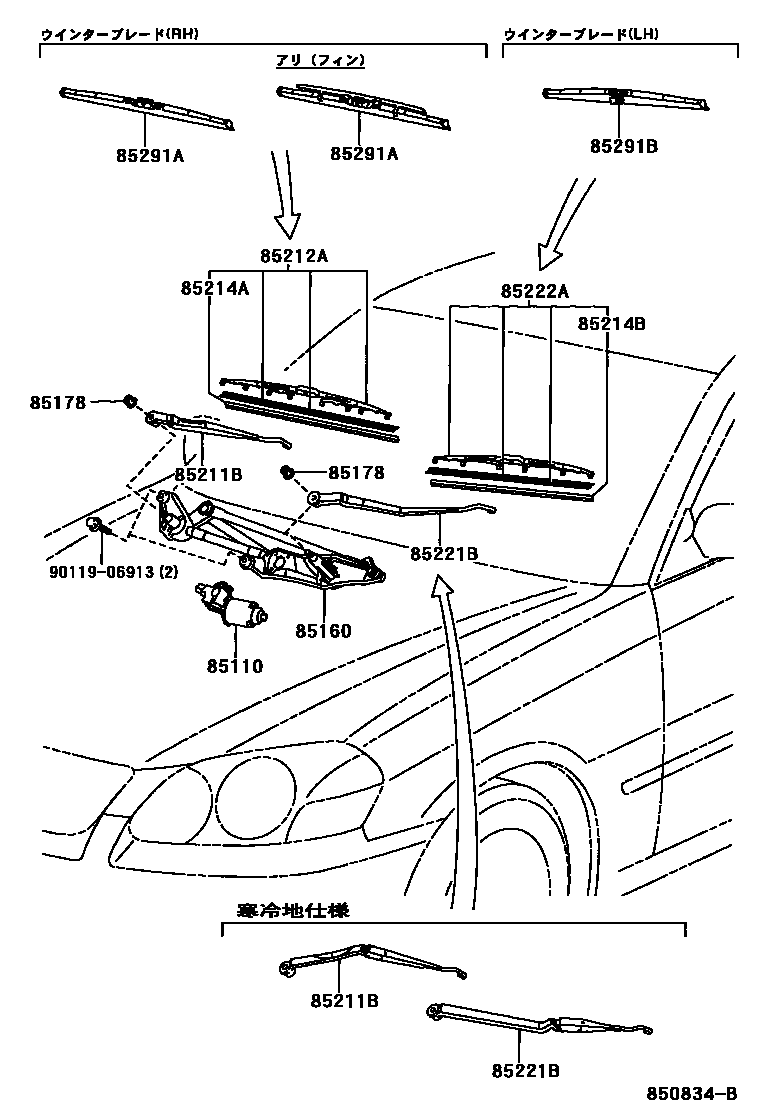

12 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota MARK 2/MARK 2 BLIT
This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota MARK 2/MARK 2 BLIT. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
