Toyota MARK 2/MARK 2 BLIT — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE 2,040
WHITE PEARL CS.,065
SILVER ME.,1C0
DK. GRAY M.M.,1C6
GRAY ME.,1D2
SILVER ME.,1F7
BLACK,202
BLACK MC.,211
BORDEAUX MC.,3P2
BRACKISH RED MC.,3P6
GOLD ME.,585
LT. AQUA M.M,772
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9009904455
main90099-04455
9011906442
main90119-06442
9017906206
main90179-06206
22 parts on this diagram · 1 diagram in section

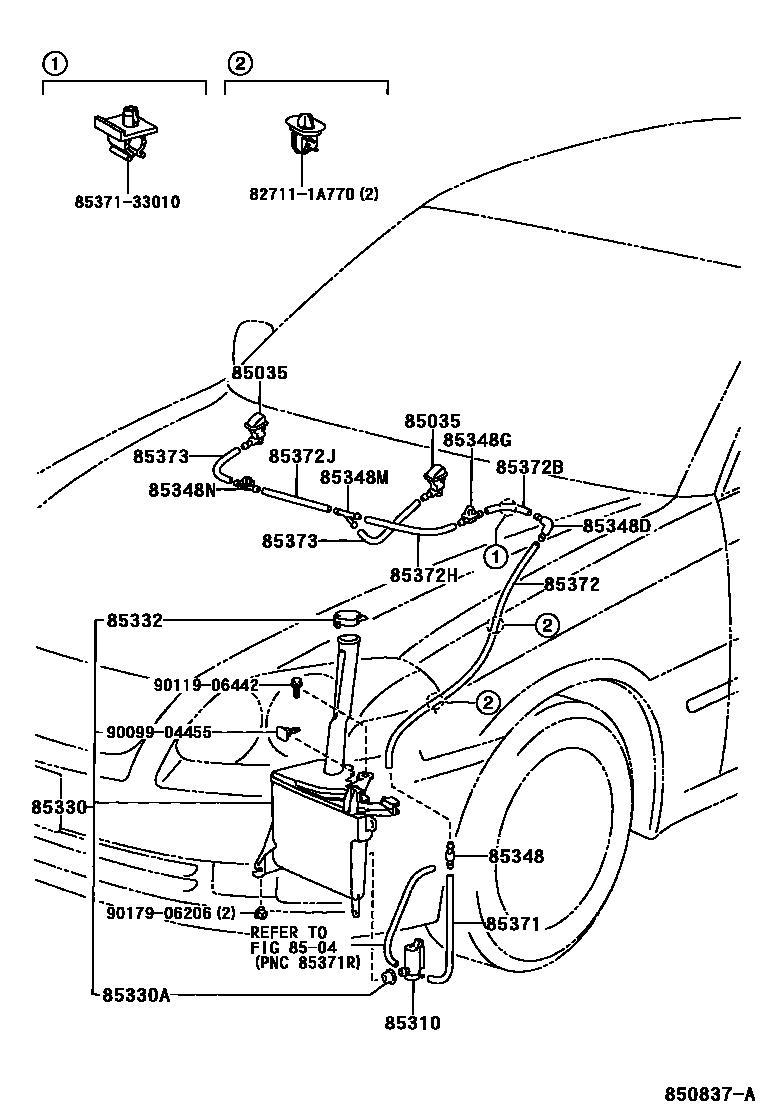

WINDSHIELD WASHER for Toyota MARK 2/MARK 2 BLIT
This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MARK 2/MARK 2 BLIT. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
